2.1m Width 2 Layers PC Hollow Board UV Resistant Greenhouse Cover Materials
2 Layers Hollow Pc Board Pc Greenhouse Cover Materials With High Snow Load Function
Description of greenhouse cover materials
Sunshine board (also known as PC sun board, hollow board, polycarbonate board, lighting board, PC board, etc.) is a kind of engineering plastic with good comprehensive performance, with excellent physical, mechanical, electrical and thermal properties, so it has the "transparent" It has good impact resistance, heat insulation, sound insulation, lighting, UV protection, flame retardant and other advantages. It is widely used in public and civil building lighting ceilings, carport canopies, passage ceilings, elevated road sound insulation walls, The top cover of shopping malls, plant greenhouses, etc., is currently the most ideal sun shed material in the world.
Notice
1. To be stored indoors, never allow direct sunlight or rain
2. Stack it by hand, and the stacking height should not exceed two meters. There should be no heavy objects on the board, and there should be no hard objects between the boards.
3. The storage room must be kept clean and dry to avoid the intrusion of dust. Other chemicals should not be stored indoors at the same time.
Advantages of greenhouse cover matereials
1. With infrared light control function, it can effectively block or reduce the far-infrared heat energy in the solar spectrum
2. Crystal bright effect, special bayer crystal bright masterbatch modification, can change the glare caused by light refraction, so that the sun becomes soft
3. Impact resistance: PC is the best impact resistance among thermoplastics, and solar panels made of PC can maintain good impact resistance for a long time in a wide temperature range.
Parameters Table of greenhouse cover matereials
| Layer | Shape | Thickess-mm | Transmittance | Weight(kg/m2) | U-value(W/m2.K) |
| 2 | Rectangle | 4 | 82% | 0.9 | 3.8 |
| 5 | 81% | 1.1 | 3.7 | ||
| 6 | 80% | 1.3 | 3.5 | ||
| 8 | 80% | 1.5 | 3.3 | ||
| 10 | 78% | 1.7 | 2.9 |
| Layer | Shape | Thickess-mm | Transmittance | Weight(kg/m2) | U-value(W/m2.K) |
| 3 | Rectangle | 8 | 76% | 1.6 | 3.0 |
| 10 | 74% | 1.8 | 2.9 | ||
| 12 | 72% | 2.0 | 2.7 | ||
| 16 | 70% | 2.6 | 2.3 |
| Layer | Shape | Thickess-mm | Transmittance | Weight(kg/m2) | U-value(W/m2.K) |
| 4 | Honeycomb | 8 | 62% | 2.0 | 2.1 |
| 10 | 60% | 2.1 | 1.9 | ||
| 12 | 58% | 2.3 | 1.7 |
| Layer | Shape | Thickess-mm | Transmittance | Weight(kg/m2) | U-value(W/m2.K) |
| 6 | Diamond | 12 | 60% | 2.2 | 2.1 |
| 16 | 59% | 2.9 | 1.8 | ||
| 18 | 58% | 3.0 | 1.7 |
Project disply

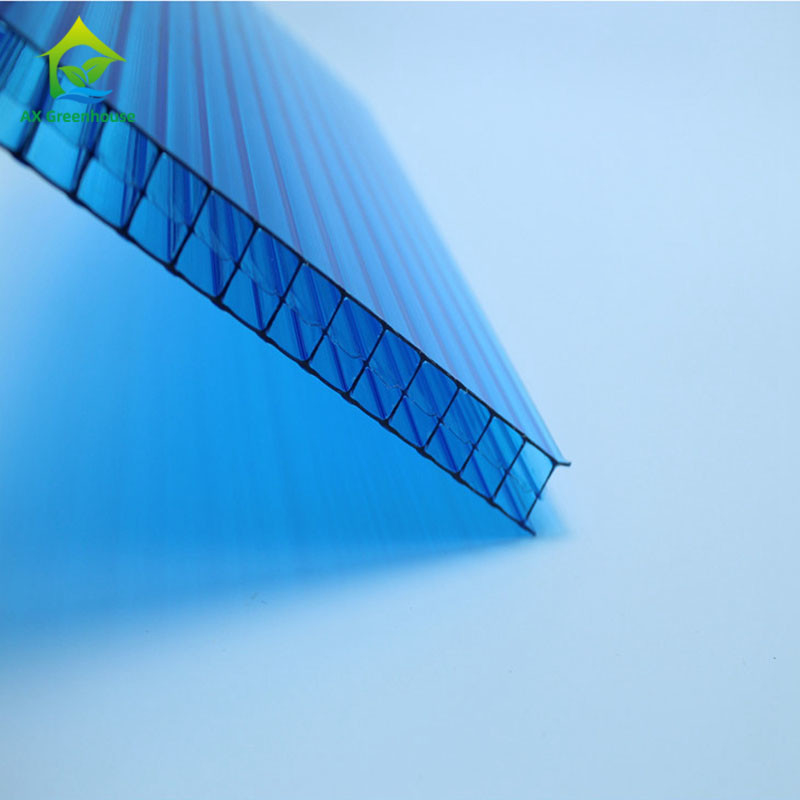

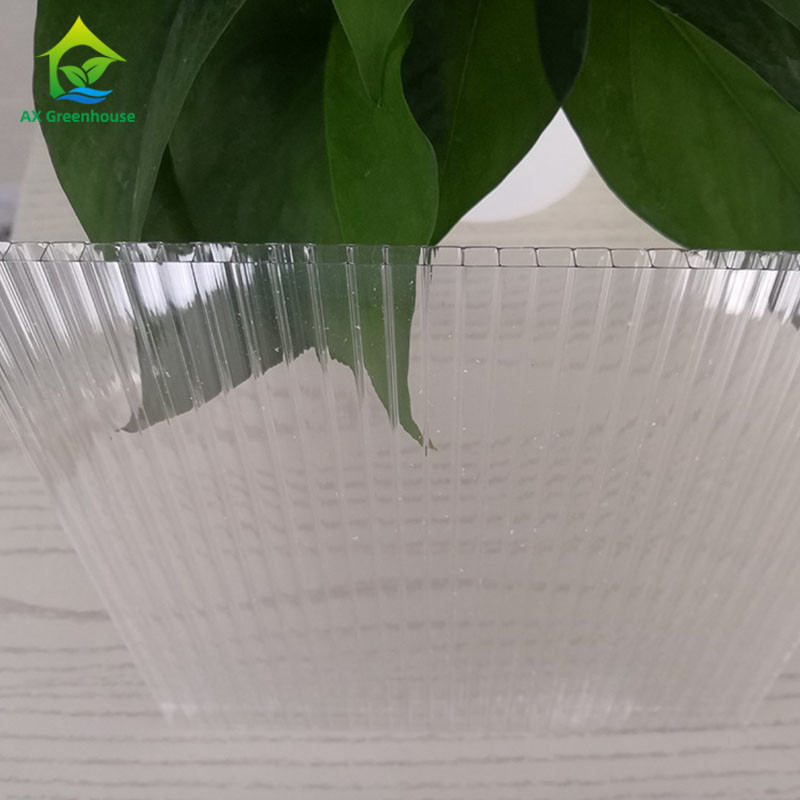

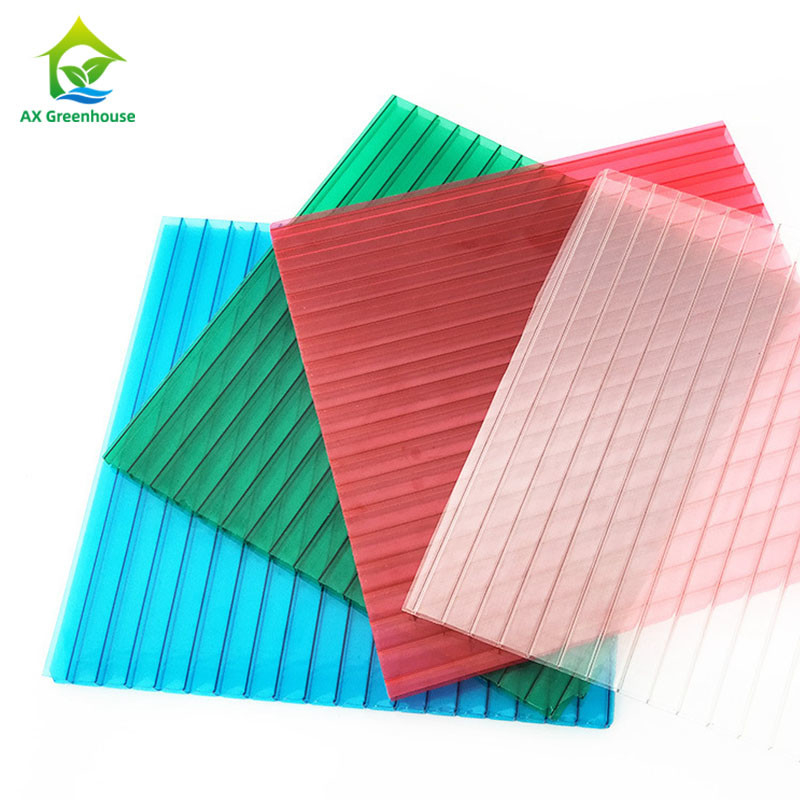

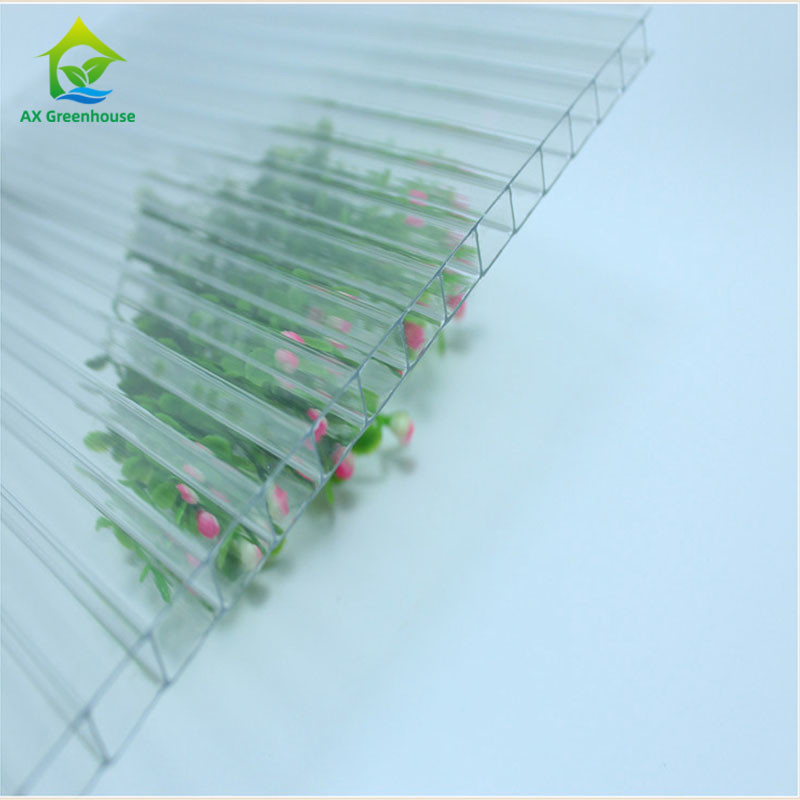

Details of PC sheet
Packing of PC sheet
The outside of the board will be rich in a layer of film to prevent scratches.
Company Profile
We are Sichuan Aixiang Agricultural Technology Co.,ltd. A professional greenhouse company based in Chengdu Sichuan Province.
We provide one-stop greenhouse solution including design,production,delivery,installation and Technical support service.
Our factory was founded in 1995,with more than 25 years experience,we provide professional greenhouse solution service not only for customers but also for other suppliers.
Till now we have exported our product and technology to many countries around the world,like the USA,Spain,Thailand,Canada and so on.
And in the future we will keep our Original intention to help more customers in greenhouse matters and keep improving our technology and products to build long-term relationship with our customer.
FAQ
1. Do you supply all mounting profiles?
Yes, we provide one-stop service, from production to installation
2. Will the board break during installation?
No,it is generally not damaged if it is not intentionally damaged during installation. The stretch and bending of the board are very good, not afraid of cold bending
3. Are you the factory?
Yes,we are the manufacturer,welcome to visit our factory!
4. Does it have high light transmittance?
The transmittance is related to its thickness. The greater the thickness of the board, the lower the transmittance. Its light transmittance is worse than that of film and glass. But the thicker the board, the higher the load capacity
