Circlip Card Slot Zig Zag Wire Lock Channel Greenhouse Accessories

Greenhouse Accessories Lock Channel Circlip Card Slot Zigzag Wire For Greenhouse Used

Description of greenhouse acessories-card slot

The card slot and circlip are used in conjunction with the film greenhouse. When the greenhouse needs to install the film, the card groove and the circlip come in handy. It is as simple as that to fix the film in the card slot with a circlip. Usually the card slot is 6 meters a piece, and the circlip is 2 meters a piece, so a card slot needs to be equipped with 3 circlips. But in When installing, there will be two or three layers of film or mesh in a card slot. What should I do at this time? Also use two or three layers of circlips? Smart installers will cut the circlips at this time. Use it in small pieces, it will not be so dense.

Our circlips are Bilite brand, Japanese standard, imported Japanese production line, eight inspections;
Four blue dots, bold end, safe and cost-effective, customers can use it with complete confidence. The circlip is made of spring steel wire, with anti-aging resin attached for many years, which can be used repeatedly for 6-8 years. It is a really cost-effective circlip.

The principle of wind resistance of the card slot:


When high winds act on the membrane, the force is transmitted to the card
Spring, according to the mechanical principle, if the angle α < β, the card slot
Lock the circlip and move the circlip downward; if α>β
, the circlip moves up.
Wind-resistant Leka® hot-dip galvanized slot and circlip
When in use, due to the angle α<β, the greater the wind load, the greater the direction of the circlip.
The greater the force is, the more difficult it is to collapse, otherwise the ordinary
The angle α>β with the U-shaped card slot, the greater the wind. circlip
The greater the upward force, the easier it is to collapse

Advantage of greenhouse acessories-card slot

1. Easy to install

2. Cheap

3. Stable

4. With the use of circlips, it can resist level 8 strong winds

5. Using Shougang coil plate, the thickness is sufficient and the strength is high;
6. Sufficient amount of galvanizing, long anti-corrosion time;
7. Scientific inner corner design, the circlip is not easy to pop out

Specification of greenhouse acessories-card slot

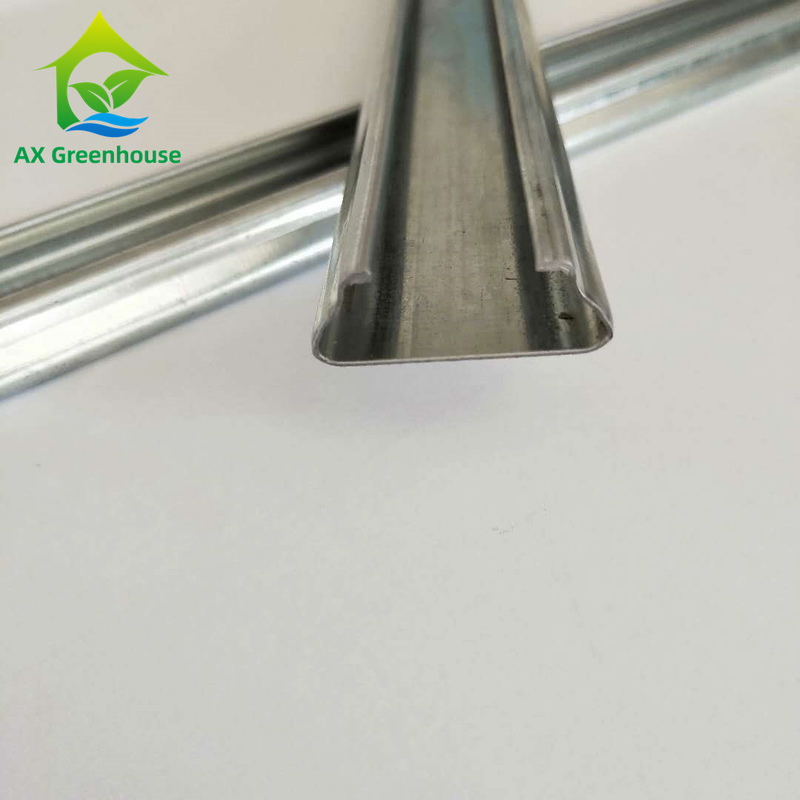

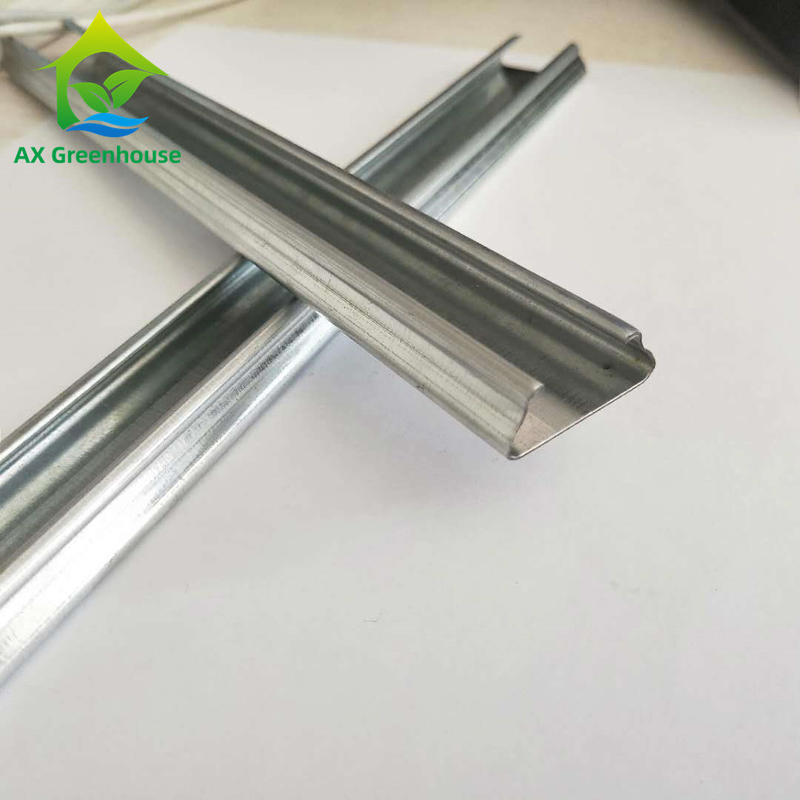

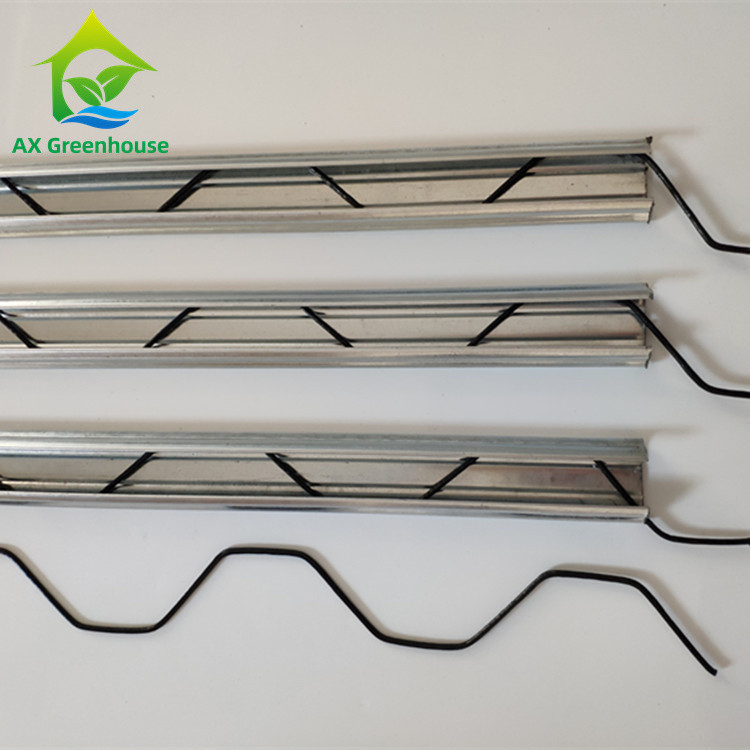

Detailed picture of greenhouse acessories-card slot

Company profile

Why choose our company?
Sichuan Aixiang Technology Co., ltd is major in the greenhouse materials manufacturing, sales, and technical service. And we are engaging in the advanced greenhouse projects and designing. We are also a professional greenhouse supplier which has more than 20 years experinece. We have been insisting on the strict quality standards and complying with International Quality System Authentication of ISO 9001 in the past of more than 10 years.
We offering the free installation drawing .
Welcome to our company!

FAQ

1. Are you factory?
Yes, we are manufacturer for types of greenhouse for more than 15 years.

2.How to ensure the quality of the products ?
To confirm every batch goods is in good condition, our inspection department will examine and test the products thoroughly and
carefully before delivery. Necessary test and certification can be obtained as your request.

3.How about packaging and shipping?
The card slot is packed in bundles, and the card spring is loaded into the carton

4.Is there any instruction or manual guide installation?
