Multiple Span Plastic Greenhouse With Whole Systems

Multiple Span Plastic Greenhouse

whole systems Multiple Span Plastic Greenhouse

Place of Origin:

Sichuan China

Request A Quote

Product Details

Product Name:

Multiple Span Plastic Greenhouse With Whole Systems

Frame Material:

Hot Dip/ Hot/Galvanized Steel

Covering Material:

PE/PO Film

Optional System:

Shading System.irrigation System.ventilation.etc

Thickness:

120/150/200 Microns

Application:

Agriculture,Vegetable Fruits Flowers,vegetable,strawberry

Payment & Shipping Terms

Minimum Order Quantity

1000 sqm

Price

USD 7.6-9.8/SQM

Packaging Details

Carton box/container

Delivery Time

30-35days

Payment Terms

L/C, T/T

Supply Ability

10000SQM Per month

Economical Low Cost Plastic Film Single-span Poly Tunnel Galvanized Greenhouse Tent

Get Best Price

Video

Single-Span Sawtooth Design Tropical Plastic Film Greenhouse Tunnel Customized for Vegetable Growing

Get Best Price

Video

Hot Galvanized Steel Structure Multi-Span Plastic Film Custom Greenhouse with Tropical Top Ventilation Sawtooth Design

Get Best Price

Video

Chinese Plastic Film Greenhouse For Large Area Farming Growing

Get Best Price

+8617311329691

sales02@axgreenhouse.com

86--28-68745748

Contact Now

Product Description

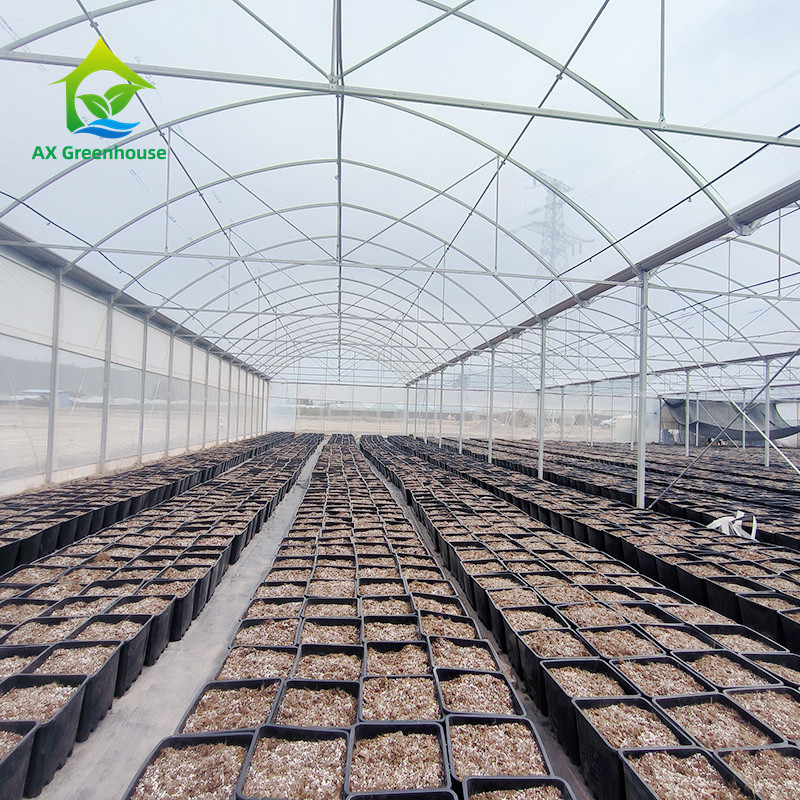

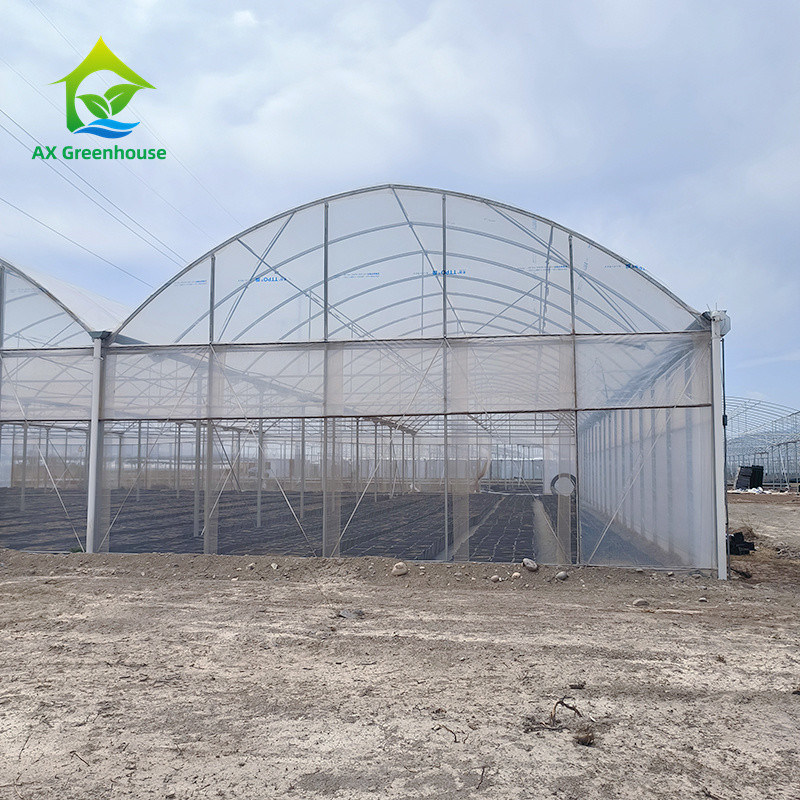

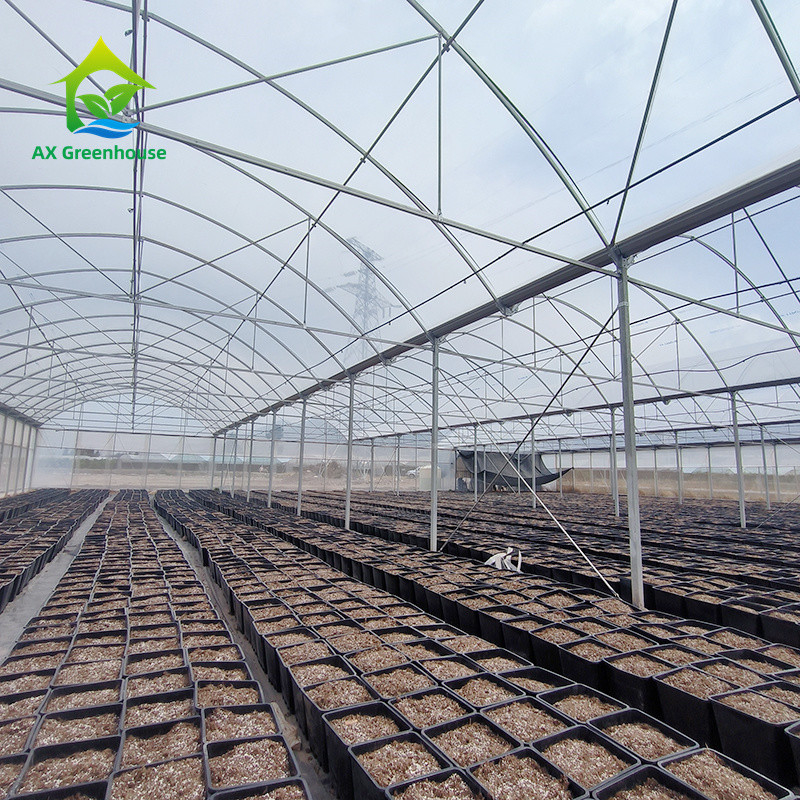

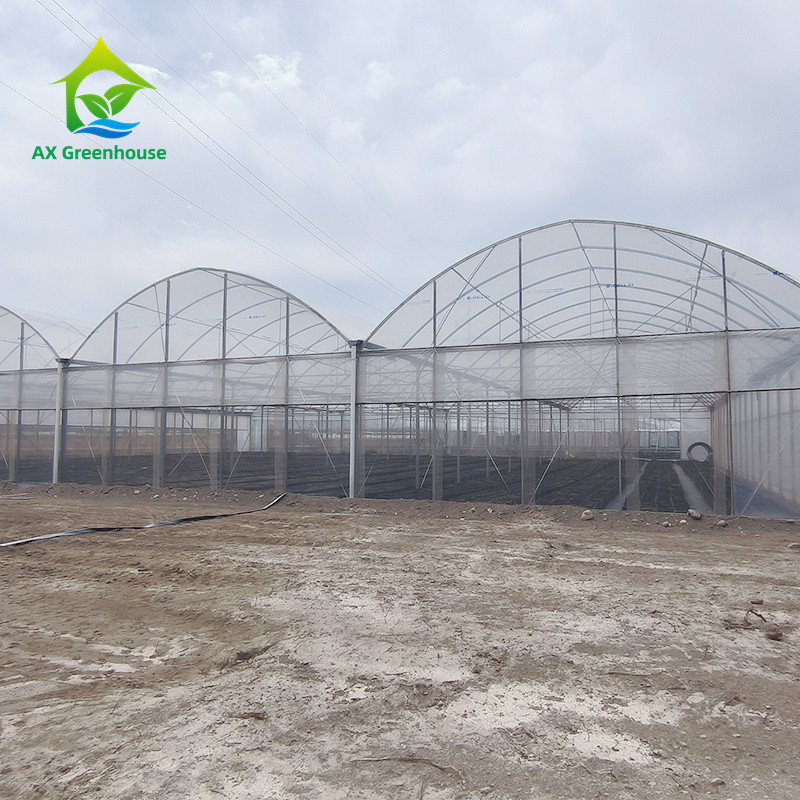

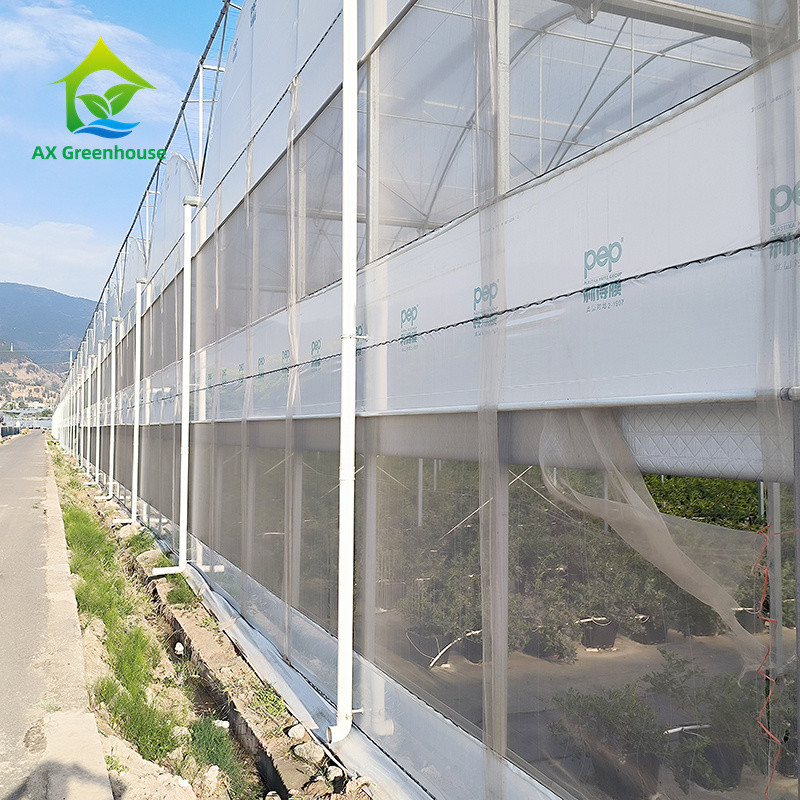

Multiple Span Plastic Greenhouse with whole systems

Frame structure:

(1)Hot dip galvanized steel Frame

(2) Main post: 150*150mm-100*100mm

(3) Auxiliary post : 120*60mm-100*50mm

(4) Thickness: 1-2.5mm

(5) Truss: 50*50*2.5mm

(6) Zinc coating: average 210g/㎡

(7) Gutter: thickness 2.0-2.75mm, zinc coating 275g/㎡

Covering

(1) PO/PEP/HDPE plastic film single layer film covering / double layers films one layer thickness: 120μm-200μm

(2) Polycarbonate: double/three layers

(3) Tempered glass

Single layer: 4mm/5mm

Double layer 5+6+5 mm

Can be customized according to customer requirements

Film multi-span greenhouse Parameters:

(1) Wind load: 0.55KN/㎡

(2) Snow load: 0.45KN/㎡

(3) Maximum rainfall: 140mm/h

(4) Planting bearing: 0.2KN /㎡

Sichuan Aixiang Technology Co.,

ltd is located in Chengdu city, China , we are professional in variety of greenhouse , such as PC sheet greenhouse , PE Film greenhouse , and Glass greenhouse,tunnel greenhouse and solar greenhouse etc , All our products have passed ISO9001 Quality Standard, Our Main Market is Euro countries as Spain , And America countries as canada , usa, As well as Australia ..We Look foreward to establish long-term business relationship with you .
