Ebb and flood rolling bench is the industry standard for propagating seedlings in a modern greenhouse.
The tables alow a large number of seedlings to be propagated in a confined space before they are
transplanted into the main hydroponic system. it use a flood and drain process to hydrate the growing
media from beneath before draining the excess moisture away.Flood drain easier to maintain hydroponic
growing system
Ebb and flow irrigation system
The ebb and flow irrigation system is the most commonly used plant production system in modern greenhouses. It is also suitable for the cultivation of ornamental plants and seedlings.
Ebb and flow irrigation is a closed irrigation system. Irrigation water mixed with fertilizer is pumped onto trays, and the plants on the trays begin to absorb the water and the fertilizer added to the water. After a period of time, the trays are emptied and the remaining water that is not absorbed by the plants is drained back into a central collection tank.
The water is filtered and treated before being recycled. After filtration and UV disinfection, the water is mixed with the required amount of fertilizer and reused.
Specifications
| Product Name |
Ebb and flow rolling benches |
| Standard Size |
2ft / 3ft / 4ft / 5ft / 6ft width with any length |
| Standarder Height |
About 70cm , height adjustable 8-10cm (can be customized) |
| Rolling Distance |
30-60cm each side |
| Product Material |

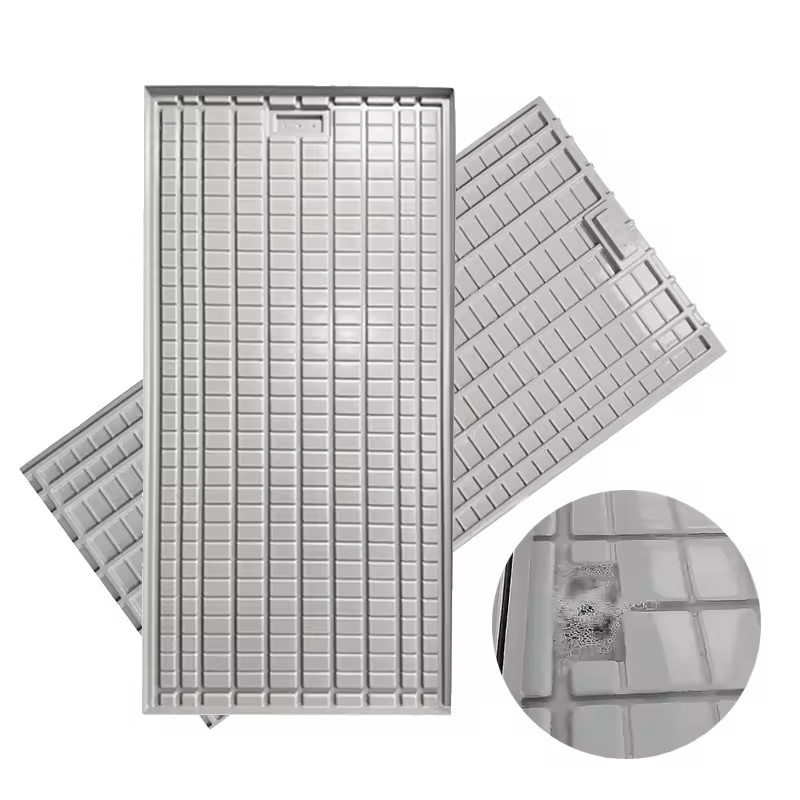

Food grade ABS tray , hot dip galvanized table |
| UV Protection |
Yes |
| Load Capacity |
70-90 KGS/SQM |
Hydroponics is the way to go for those who want to get the most yield out of their light and area. Hydroponics
will provide bushier plants and faster growth. The Ebb and Flow complete growsystem floods the roots with a
nutrient solution. Ebb and Flow complete grow systems have been proven to be extremely effective over time
and require very low maintenance and are easy-to-use.

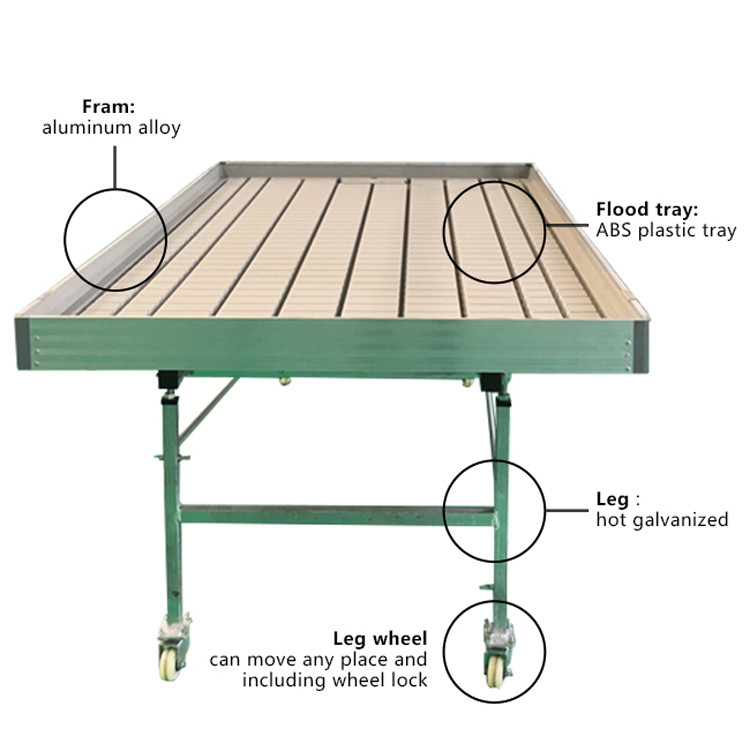

Detailed Image:
Advantages:
1. It can move left and right (movable 0.6m), and the height can be fine-adjusted (adjustable by 10 cm);
2. Anti-turning limit equipment to prevent skew caused by emphasis;
3. The maximum load capacity is 50kg/㎡;
4. Full hot-dip galvanizing process, durable;
5. The life span can reach 15-20 years;
6. Reduce irrigation waste, recycle and reuse;
7. Easy to install;
8. The system structure is reasonable;
9. Less maintenance;
10. High ground utilization rate
Working Principle:
Hydroponic ebb and flow trays uses pumps and a large water reservoir to periodically flood the plant
roots with nutrients and water. An easy method is using a large plastic tote to contain the nutrient solution
with the plants sitting in a deep tray on top of the lid. The nutrient solution is pumped into the tray from
the reservoir below, and then is allowed to drain back into the reservoir.
Main Features
1.Labor savings and cost effective
2.The factory manufacture compleste ebb and flow system in china.
3.An entire acre or more can be watered automatically and efficiently
4. Plants are watered evenly, reducing losses due to poor watering practices
5. Plants can be fertilized as they are being watered
6.Floors are dry, avoiding accidents
7.Compatible with many computer control systems
