1. Irrigation is more uniform, and ebb Flow irrigation uses water and fertilizer from the bottom of plants. Compared with top irrigation methods such as spraying, it is less prone to the uneven phenomenon of less water and fertilizer received by plants around the seedbed that often occurs with top irrigation; At the same time, it can stabilize the moisture content of the root medium and prevent capillary roots from dying due to drought near the edge and bottom of the container.
2. Ebb flood irrigation is beneficial for controlling the occurrence of diseases, as it avoids the large amount of water adhering to plant leaves caused by spray irrigation. Relative humidity is easy to control, keeping the leaves dry, reducing the use of chemicals, and controlling the occurrence of diseases.
3. Water and fertilizer conservation, the nutrient solution used in ebb flow irrigation is different from spray irrigation. It is reused multiple times, water-saving and efficient, with a completely closed system circulation that can achieve a utilization rate of 90%; This can save a lot of water and fertilizer, and reduce production costs.
Specifications
| Product Name |
Ebb and flow rolling benches |
| Standard Size |
2ft / 3ft / 4ft / 5ft / 6ft width with any length |
| Standarder Height |
About 70cm , height adjustable 8-10cm (can be customized) |
| Rolling Distance |
30-60cm each side |
| Product Material |
Food grade ABS tray , hot dip galvanized table |
| UV Protection |
Yes |
| Load Capacity |
70-90 KGS/SQM |
Hydroponics is the way to go for those who want to get the most yield out of their light and area. Hydroponics
will provide bushier plants and faster growth. The Ebb and Flow complete growsystem floods the roots with a
nutrient solution. Ebb and Flow complete grow systems have been proven to be extremely effective over time
and require very low maintenance and are easy-to-use.

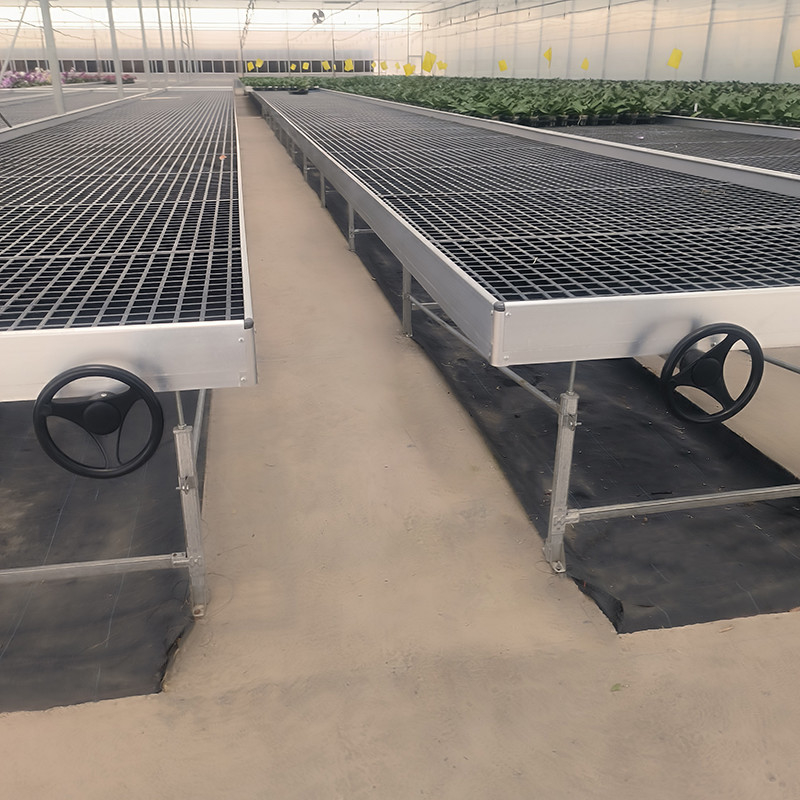

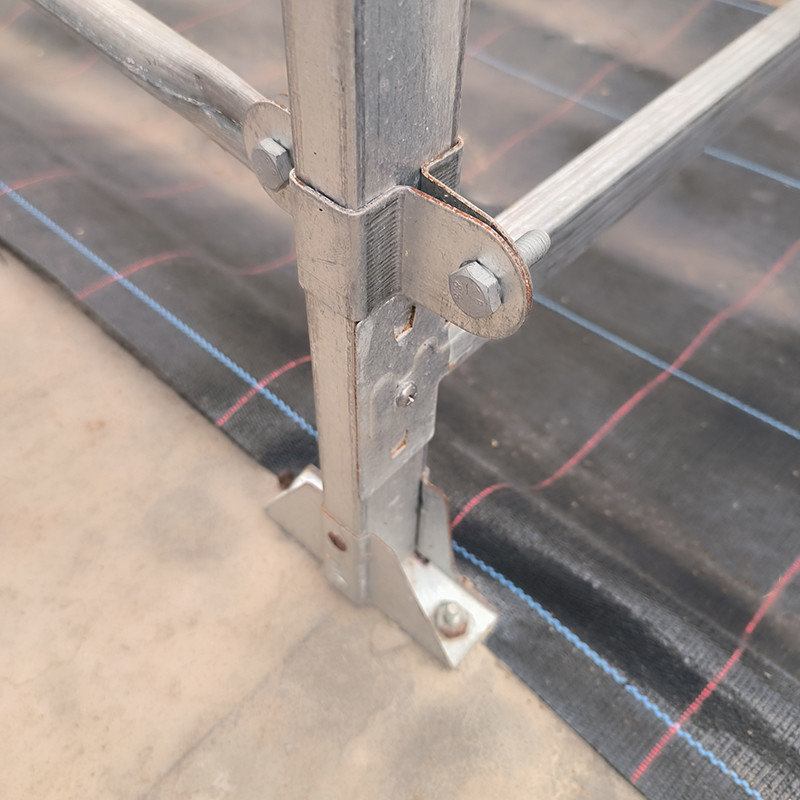

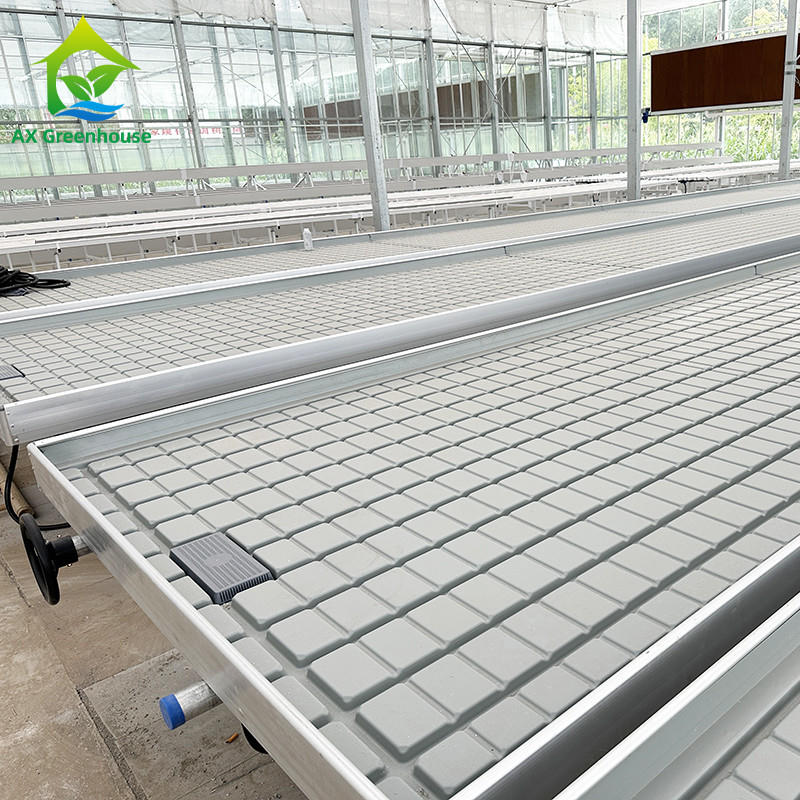

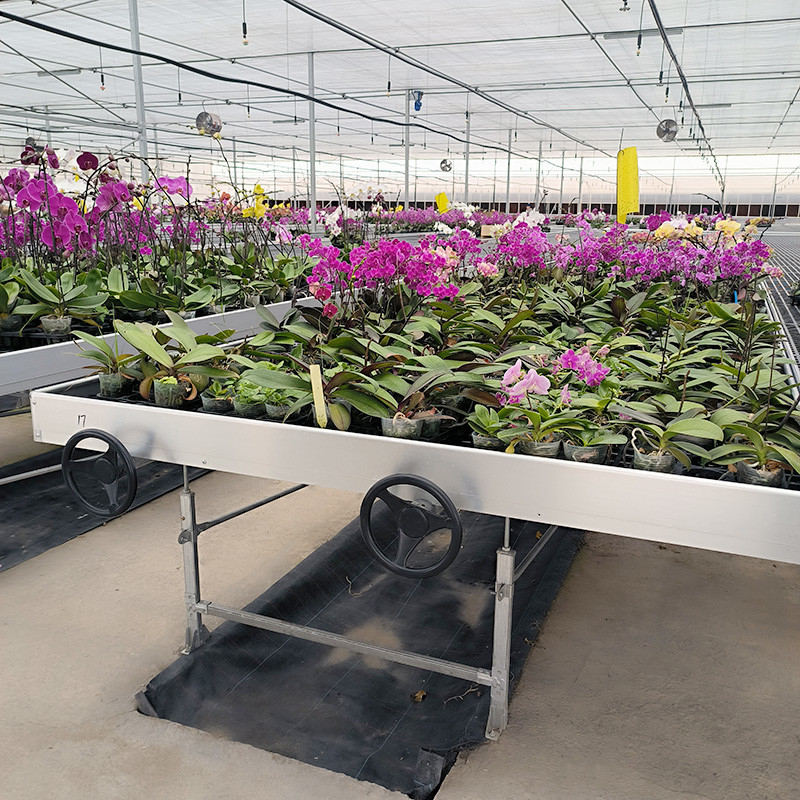

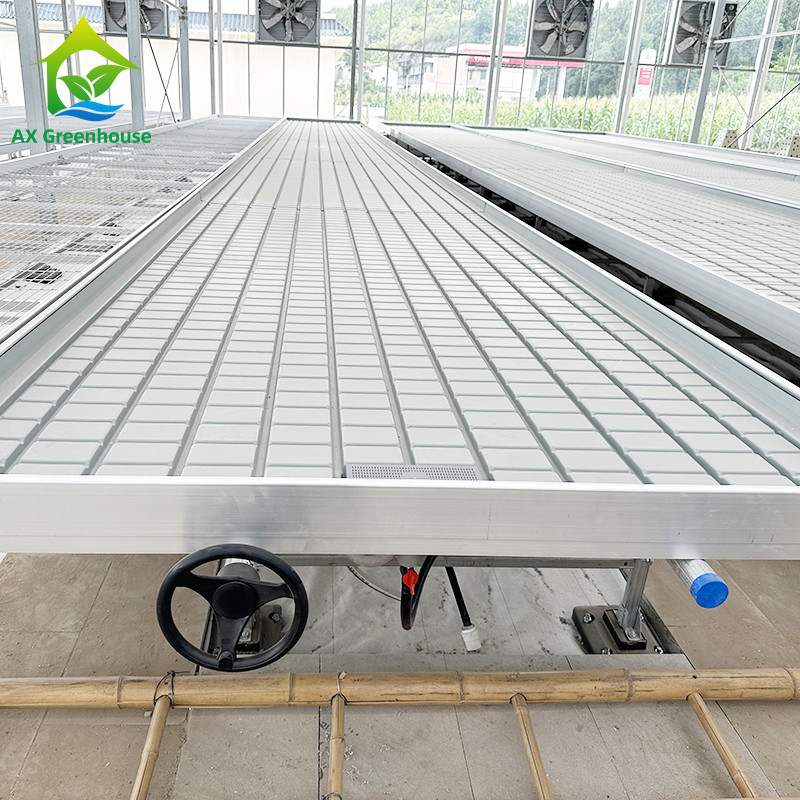

Detailed Image:
Advantages:
1. It can move left and right (movable 0.6m), and the height can be fine-adjusted (adjustable by 10 cm);
2. Anti-turning limit equipment to prevent skew caused by emphasis;
3. The maximum load capacity is 50kg/㎡;
4. Full hot-dip galvanizing process, durable;
5. The life span can reach 15-20 years;
6. Reduce irrigation waste, recycle and reuse;
7. Easy to install;
8. The system structure is reasonable;
9. Less maintenance;
10. High ground utilization rate
Working Principle:
Hydroponic ebb and flow trays uses pumps and a large water reservoir to periodically flood the plant
roots with nutrients and water. An easy method is using a large plastic tote to contain the nutrient solution
with the plants sitting in a deep tray on top of the lid. The nutrient solution is pumped into the tray from
the reservoir below, and then is allowed to drain back into the reservoir.
Main Features
1.Labor savings and cost effective
2.The factory manufacture compleste ebb and flow system in china.
3.An entire acre or more can be watered automatically and efficiently
4. Plants are watered evenly, reducing losses due to poor watering practices
5. Plants can be fertilized as they are being watered
6.Floors are dry, avoiding accidents
7.Compatible with many computer control systems
