Commercial Greenhouse Solutions for Mid-to-Large Scale Projects - AX Greenhouse

Commercial Multi-span Venlo Tempered Glass Roof Ventilation Greenhouse for Flower 1
Commercial Multi-span Venlo Tempered Glass Roof Ventilation Greenhouse for Flower 2
Commercial Multi-span Venlo Tempered Glass Roof Ventilation Greenhouse for Flower 3
Commercial Multi-span Venlo Tempered Glass Roof Ventilation Greenhouse for Flower 4
Commercial Multi-span Venlo Tempered Glass Roof Ventilation Greenhouse for Flower 5
Commercial Multi-span Venlo Tempered Glass Roof Ventilation Greenhouse for Flower 1
Commercial Multi-span Venlo Tempered Glass Roof Ventilation Greenhouse for Flower 2
Commercial Multi-span Venlo Tempered Glass Roof Ventilation Greenhouse for Flower 3
Commercial Multi-span Venlo Tempered Glass Roof Ventilation Greenhouse for Flower 4
Commercial Multi-span Venlo Tempered Glass Roof Ventilation Greenhouse for Flower 5

Commercial Multi-span Venlo Tempered Glass Roof Ventilation Greenhouse for Flower

5.0
Control System:
Intelligent Control System
Roof Molding:
Triangle
Heating System:
Boiler And Heating Fans
Cooling System:
Pad And Fan System
Ventilation:
Top Ventilation+Side Ventilation
Feature:
Stable Structure
Structure:
Hot Dipped Galvanized Steel
Width:
9.6m/10.8m/12m
Cover Material:
Reinforced Glass And Hollow Glass
Payment Terms:
T/T, L/C
Supply Ability:
10000000 square meters per month
Delivery Time:
15-25 days
Packaging Details:
Our export packing : 1. Steel (bundling and packaging) 2. Equipment, spare parts (wooden cases, carton packaging) 3. PC sheet, glass, film, and other independent packaging
Price:
USD15.8-USD28.7/sqm
Minimum Order Quantity:
600 square meters
Highlight:
Flower Venlo Greenhouse, Tempered Glass Roof Venlo Greenhouse, Commercial Multi-span Venlo Greenhouse
Product Name:
Agricultural Smart Commercial Multi Span Glass Greenhouse For Vegetables Growing
design customization

    oops...!

    no product data.

    Go to homepage

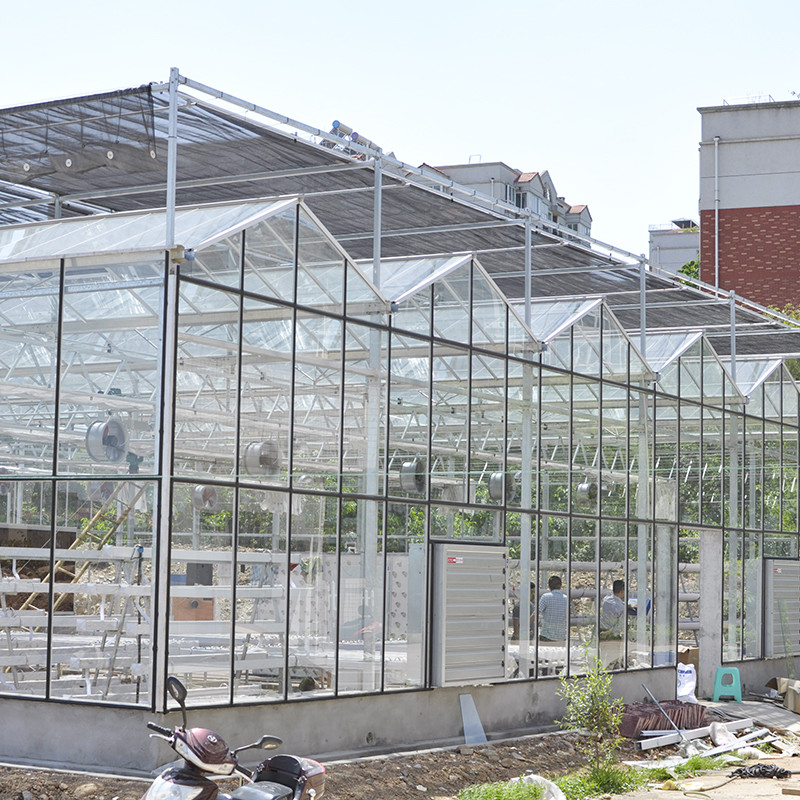

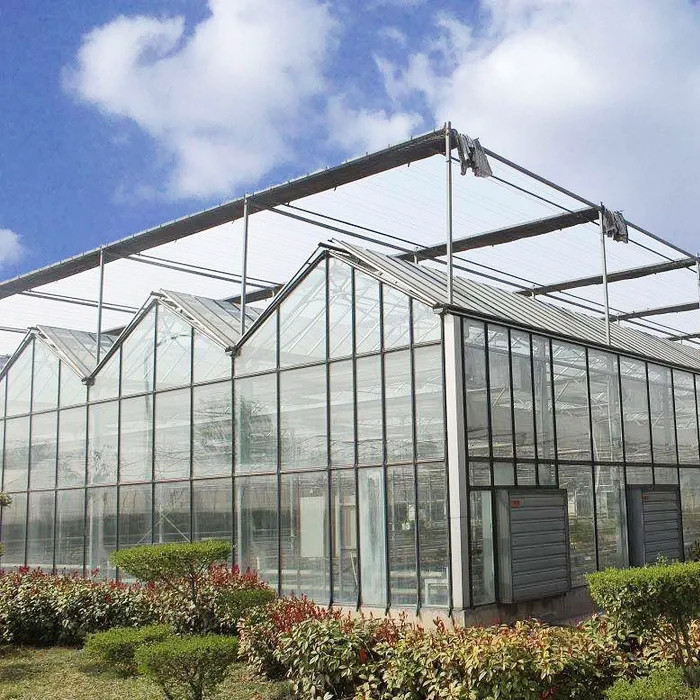

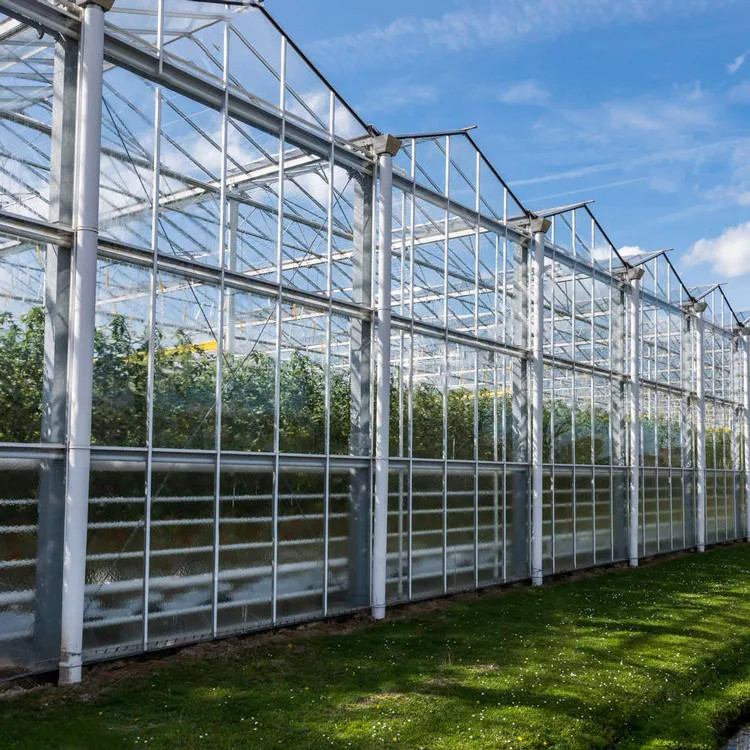

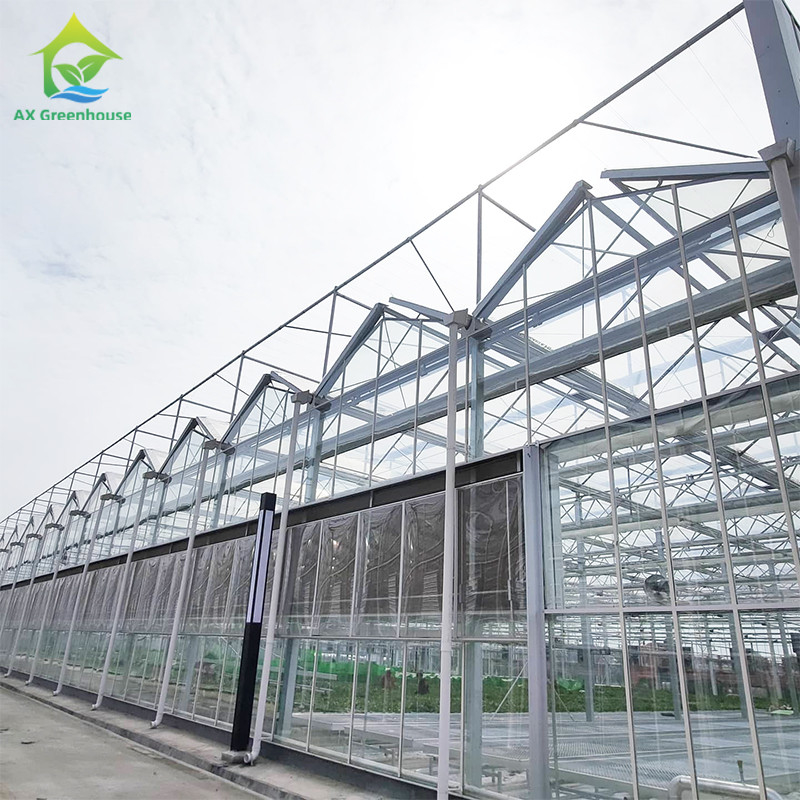

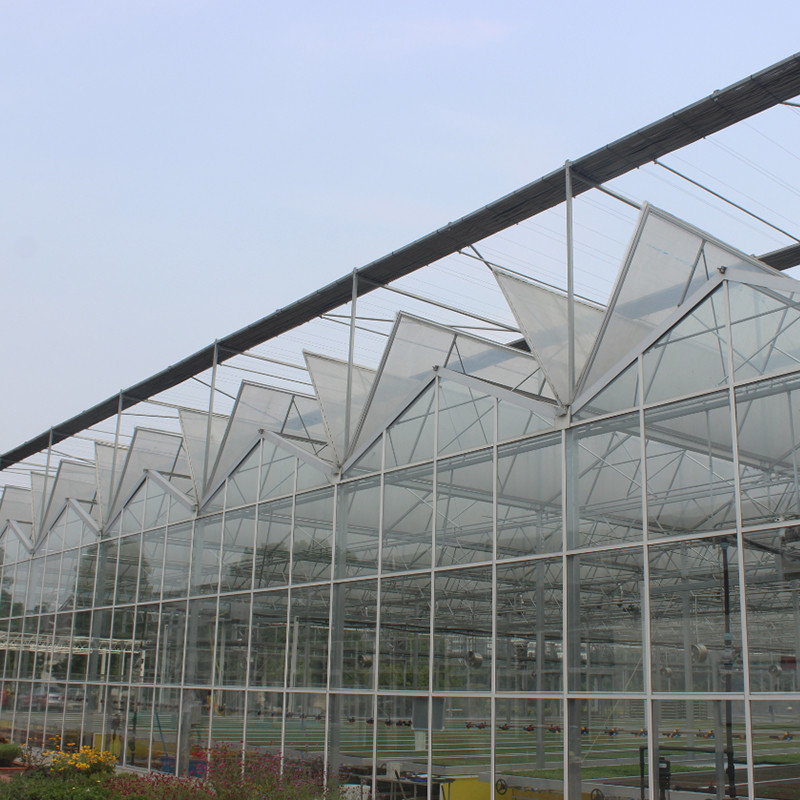

    Commercial Multi-span Venlo Tempered Glass Roof Ventilation Greenhouse for Flower


    Venlo greenhouse is a type of glass greenhouse that originated in the Netherlands, specifically in the Venlo region. It is one of the most popular and widely used greenhouse designs in the world, particularly for commercial horticulture and agriculture. The Venlo greenhouse is known for its efficiency, durability, and ability to optimize growing conditions for plants.



    Key Features of a Glass Venlo Greenhouse:

    1. Modular Design:

      • Venlo greenhouses are built using a modular structure, typically with narrow spans (usually 3.2 meters or 6.4 meters wide) and gutters that allow for efficient use of space and natural light.

      • The modular design makes it easy to expand the greenhouse as needed.

    2. Glass Covering:

      • The greenhouse is covered with high-quality glass, usually horticultural glass, which provides excellent light transmission (up to 90% or more) and durability.

      • The glass is often tempered or laminated for added strength and safety.

    3. Natural Ventilation:

      • Venlo greenhouses are designed with roof vents that open along the ridge of the greenhouse. These vents allow for natural ventilation, which helps regulate temperature, humidity, and air circulation.

      • The ventilation system is often automated and controlled by climate management systems.

    4. Efficient Water Drainage:

      • The design includes gutters between the roof spans that collect and channel rainwater away from the greenhouse. This prevents water from dripping onto plants and ensures efficient water management.

    5. Strong Frame Structure:

      • The frame is typically made of lightweight but strong materials like aluminum or galvanized steel, which are resistant to corrosion and can withstand harsh weather conditions.

    6. Climate Control:

      • Venlo greenhouses are often equipped with advanced climate control systems, including heating, cooling, shading, and irrigation systems, to create optimal growing conditions for crops.

    7. Energy Efficiency:

      • The design maximizes natural light and minimizes energy consumption, making it an energy-efficient option for year-round cultivation.



    Span length
    8m, 9.6m, 10.8m, 12m, 16m
    Adjusted to your request
    Bay width
    4m, 5m, 8m, 10m
    Adjusted to your request
    Gutter height
    From 3.0m to 8.0m
    Adjusted to your request
    Steel structure
    Hot-dip galvanized steel frame, no welding joint structure.
    Cover material
    Film with UV and anti-drip layer, PC sheet, 5mm reinforced glass.
    Shading system
    External and internal shading system to block the sunshine
    Cooling system
    Cooling pad and exhaust fans
    Heating system
    Gas/Coal/Oil fired boiler with blowers
    Other system
    Ventilation system, thermal insulation system, seedbed system, irrigation system, lighting system, intelligent control system etc.



    Commercial Multi-span Venlo Tempered Glass Roof Ventilation Greenhouse for Flower 0Commercial Multi-span Venlo Tempered Glass Roof Ventilation Greenhouse for Flower 1Commercial Multi-span Venlo Tempered Glass Roof Ventilation Greenhouse for Flower 2Commercial Multi-span Venlo Tempered Glass Roof Ventilation Greenhouse for Flower 3




    Product features


    1. Excellent insulation performance.
    2. Light transmittance is moderate.
    3. Good transmittance, low thermal conductivity.
    4. Modern appearance, stable structure, beautiful and generous form, visual and smooth.
    5. long life, beautiful appearance, to reduce duplication of construction and investment.
    6. More gutter, large span, large displacement, strong wind resistance, suitable for large areas of wind and rainfall.





    FAQ



    1.You are manufacture factory or trading company?

    We are manufacture factory. You are welcomed to visit us at any time. In the workshop,it has a complete advanced equipment system for making steel structures and panels. So we can make sure the good quality and also the competitive price.



    2.How about your quality control?

    Our products have passed CE EN1090 and ISO9001:2008.



    3.Can you offer design service?

    Yes,we have an engineer team and can design for you according to your requirements.Architectural drawing,structure diagram,processing detail drawing and installation drawing will be made and let you confirm in different time of the project.



    4.What's the delivery time?

    The delivery time depends on the size and quantity of building.Generally within 30 days after receiving the payment.And partial shipment is allowed for big order.



    5.Do you offer service for installation?

    We will give you the detailed construction drawing and the construction manual which could help you to erect and install the building step by step. We also could send the engineer to your local to help you if need.



    6.What's the payment term?

    50% deposit and 50% balance before shipment.



    7.How to get a quote from you?
    You can contact us by email, phone, Alibaba TM, WhatsApp, Skype and so on and you will get reply within anytime.
