Product Overview
The Ebb & Flood Rolling Bench is a state-of-the-art hydroponic system designed for commercial growers, nurseries, and serious horticultural enthusiasts. Combining space-saving mobility with the proven effectiveness of ebb-and-flood (flood and drain) irrigation, this bench maximizes plant health, optimizes water usage, and streamlines workflow in any growing environment.
Key Features
Space-Saving Rolling Design
Mobile Benches: Smooth-rolling carriages on heavy-duty tracks allow benches to be compacted together when not in use, freeing up aisle space for easy access and maintenance.
Modular Layout: Expand or reconfigure your growing area effortlessly to match crop cycles or facility needs.
Precision Ebb & Flood Irrigation
Automated Flood Cycles: Programmable timers ensure consistent nutrient delivery, promoting robust root development and reducing water waste.
Uniform Water Distribution: Engineered channels and drain systems eliminate pooling, ensuring every plant receives equal hydration.
Durable, Corrosion-Resistant Build
Marine-Grade Aluminum Frame: Lightweight yet sturdy, resistant to rust and chemical corrosion.
High-Density Polyethylene (HDPE) Trays: Non-toxic, UV-stable, and easy to clean for long-term reliability.
Ergonomic & Customizable
Adjustable Height Options: Tailor bench height to your workflow (optional add-on).
Compatible with Grow Media: Works seamlessly with rockwool, clay pebbles,or soil-based setups.
Smart Water Management
Integrated Reservoir System: Recirculate nutrient solutions to minimize waste and reduce operational costs.
Leak-Proof Design: Reinforced seals and drainage ports prevent spills, even during rapid flood cycles.
Specifications
|
Product Name
|
Ebb and flow rolling benches
|
|
Standard Size
|
2ft / 3ft / 4ft / 5ft / 6ft width with any length
|
|
Standarder Height
|
About 70cm , height adjustable 8-10cm (can be customized)
|
|
Rolling Distance
|
30-60cm each side
|
|
Product Material
|
Food grade ABS tray , hot dip galvanized table
|
|
UV Protection
|
Yes
|
|
Load Capacity
|
70-90 KGS/SQM
|
Hydroponics is the way to go for those who want to get the most yield out of their light and area. Hydroponics
will provide bushier plants and faster growth. The Ebb and Flow complete growsystem floods the roots with a
nutrient solution. Ebb and Flow complete grow systems have been proven to be extremely effective over time
and require very low maintenance and are easy-to-use.

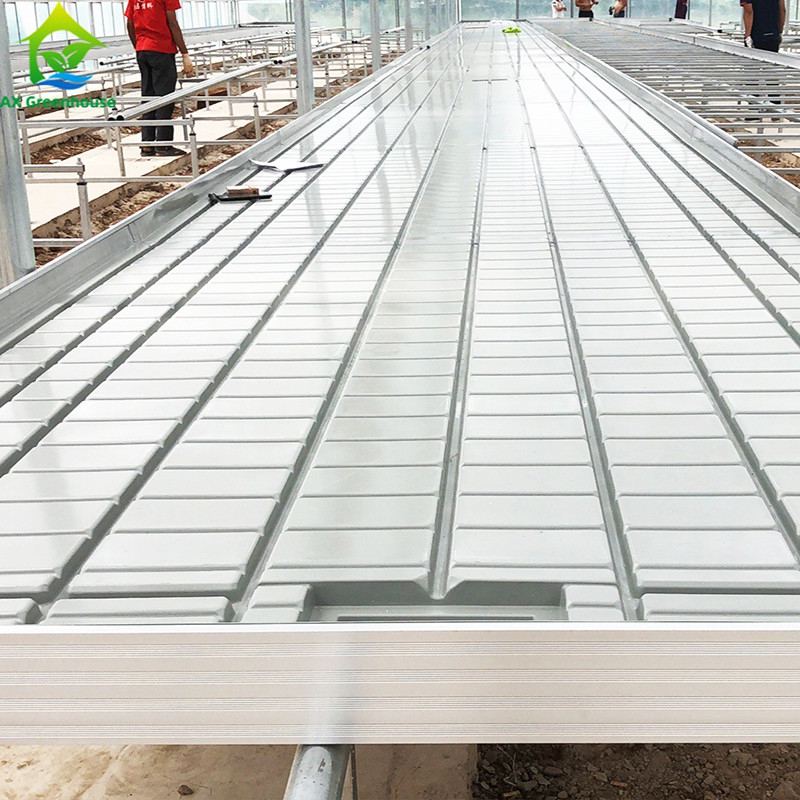

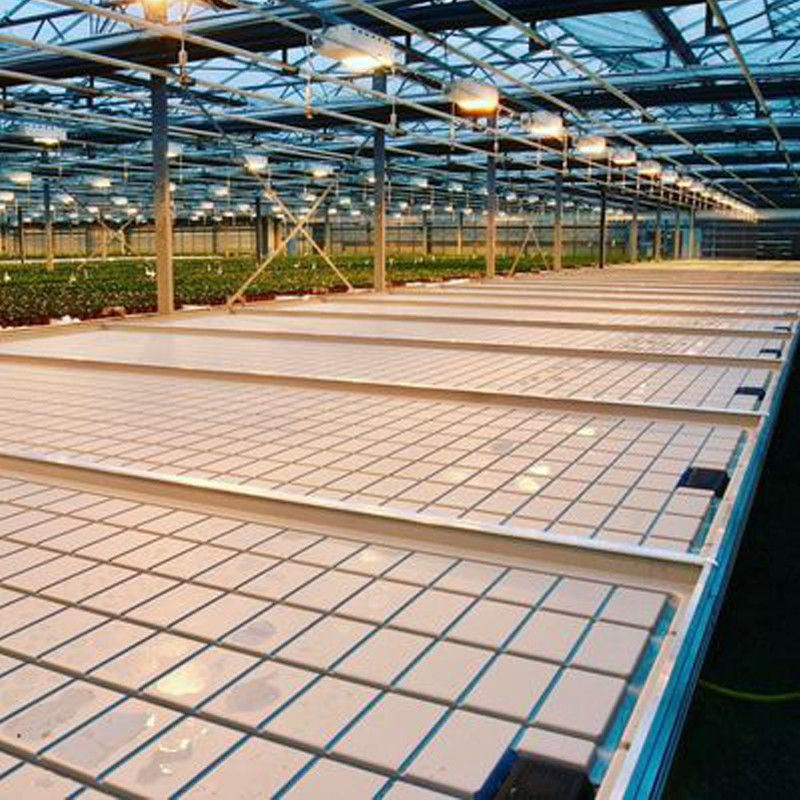

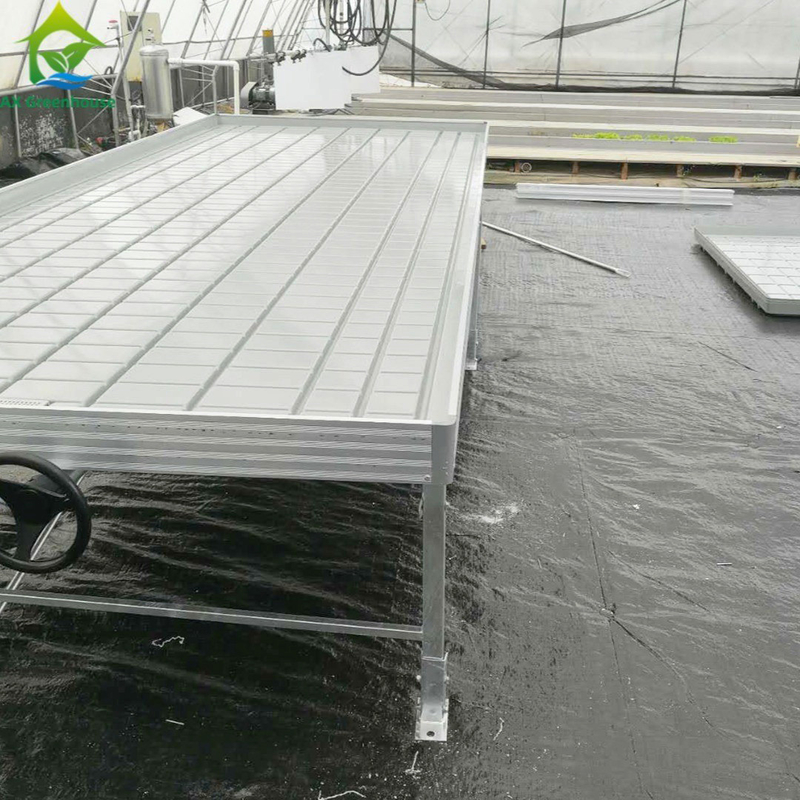

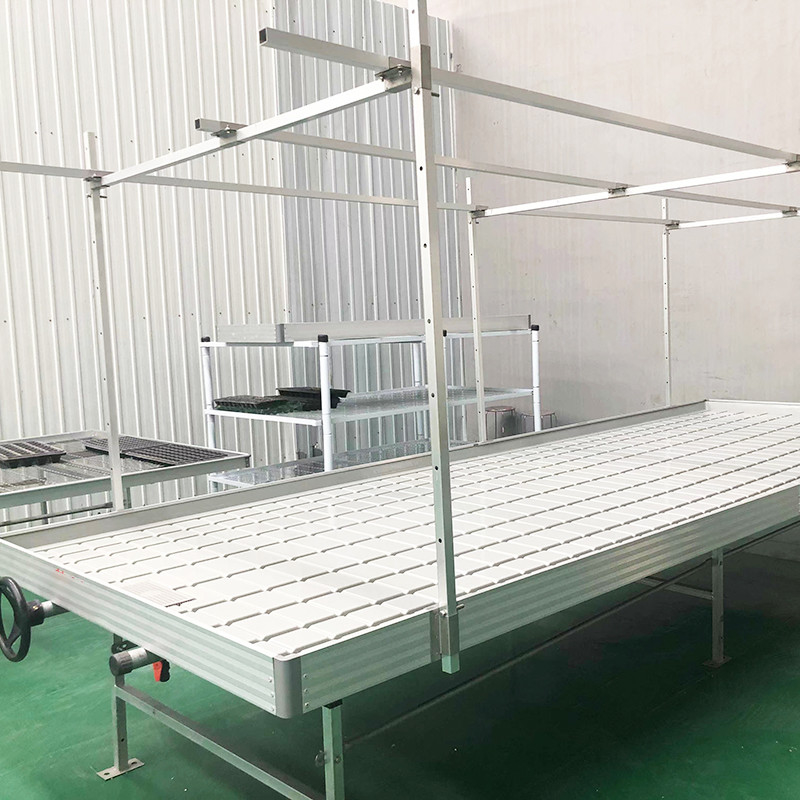

Detailed Image:
Advantages:
1. It can move left and right (movable 0.6m), and the height can be fine-adjusted (adjustable by 10 cm);
2. Anti-turning limit equipment to prevent skew caused by emphasis;
3. The maximum load capacity is 50kg/㎡;
4. Full hot-dip galvanizing process, durable;
5. The life span can reach 15-20 years;
6. Reduce irrigation waste, recycle and reuse;
7. Easy to install;
8. The system structure is reasonable;
9. Less maintenance;
10. High ground utilization rate
Working Principle:
Hydroponic ebb and flow trays uses pumps and a large water reservoir to periodically flood the plant
roots with nutrients and water. An easy method is using a large plastic tote to contain the nutrient solution
with the plants sitting in a deep tray on top of the lid. The nutrient solution is pumped into the tray from
the reservoir below, and then is allowed to drain back into the reservoir.
Main Features
1.Labor savings and cost effective
2.The factory manufacture compleste ebb and flow system in china.
3.An entire acre or more can be watered automatically and efficiently
4. Plants are watered evenly, reducing losses due to poor watering practices
5. Plants can be fertilized as they are being watered
6.Floors are dry, avoiding accidents
7.Compatible with many computer control systems
