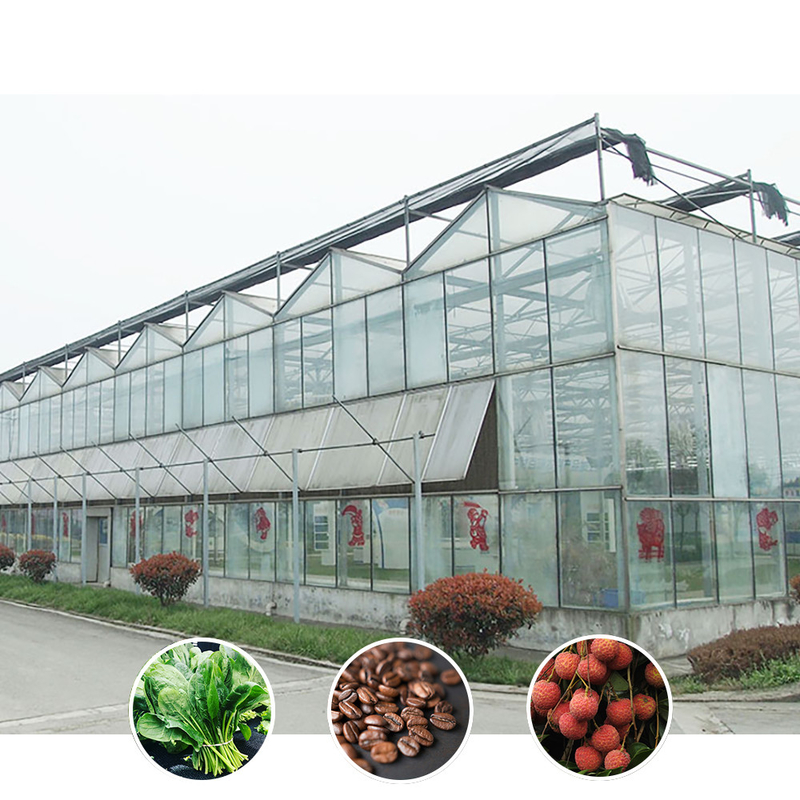

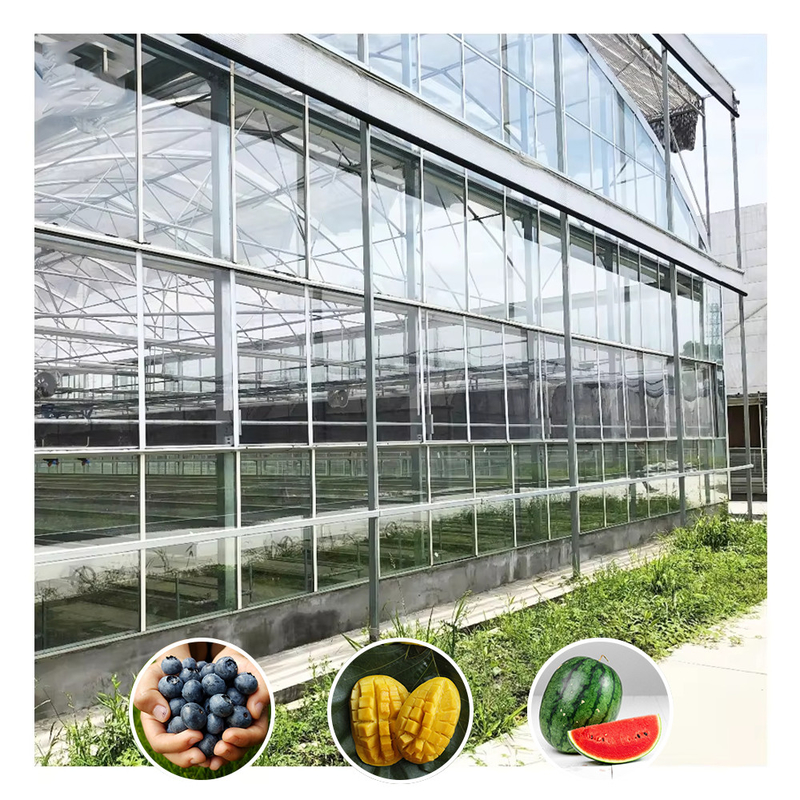

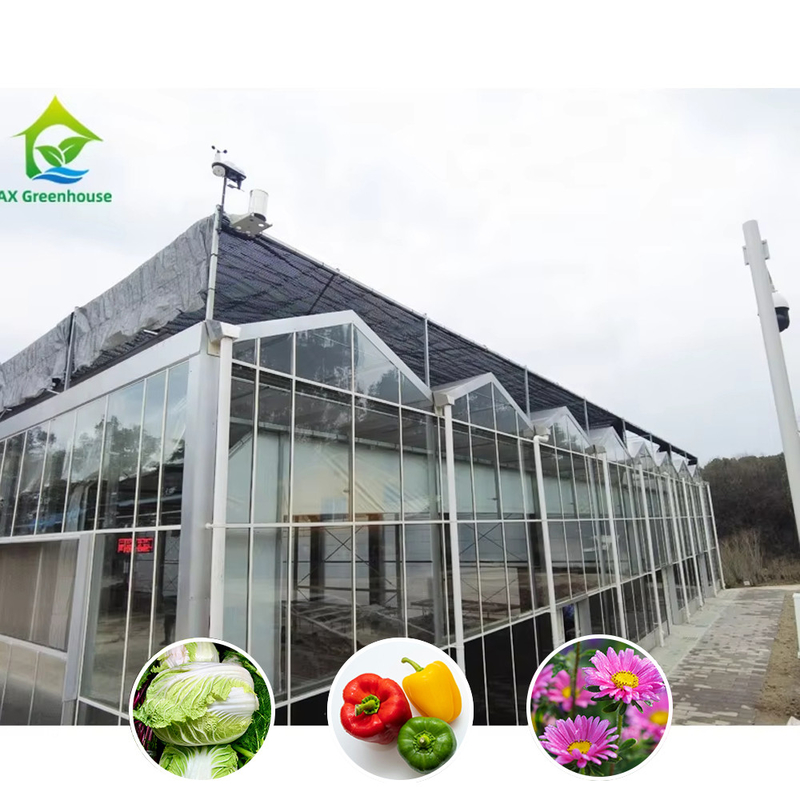

Commercial Agricultural Glass House Venlo Top Ventilation Multi-span Greenhouse
Product Overview
Our state-of-the-art Agricultural Glass Greenhouse is engineered to empower modern farming with precision, durability, and sustainability. Designed for commercial growers, horticulturists, and agribusinesses, this greenhouse combines advanced climate control technology with the timeless benefits of glass glazing to optimize plant growth, yield, and resource efficiency.
Key Features
Superior Light Transmission
High-Clarity Tempered Glass: 90%+ light transmission for optimal photosynthesis.
UV-Resistant Coating: Protects plants while maximizing natural sunlight utilization.
Smart Climate Control
Integrated Ventilation System: Automated roof vents and side vents for temperature regulation.
Energy-Efficient Heating/Cooling: Compatible with geothermal, solar, or hybrid systems.
IoT-Ready Sensors: Monitor and adjust humidity, CO2, and temperature via mobile app.
Durable & Customizable Design
Galvanized Steel Frame: Corrosion-resistant, withstands extreme weather (snow/wind loads up to 120 km/h).
Modular Structure: Expandable width/length to fit farms of all sizes (5m to 50m+ spans).
Sloped Roof Design: Enhances rainwater drainage and reduces debris buildup.
Sustainable & Cost-Effective
Energy-Saving Glass: Double-glazed options available for thermal insulation.
Rainwater Harvesting Integration: Optional gutter systems for eco-friendly irrigation.
20+ Year Lifespan: Low maintenance, high return on investment.
|
Span length
|
8m, 9.6m, 10.8m, 12m, 16m
|
Adjusted to your request
|
|
Bay width
|
4m, 5m, 8m, 10m
|
Adjusted to your request
|
|
Gutter height
|
From 3.0m to 8.0m
|
Adjusted to your request
|
|
Steel structure
|

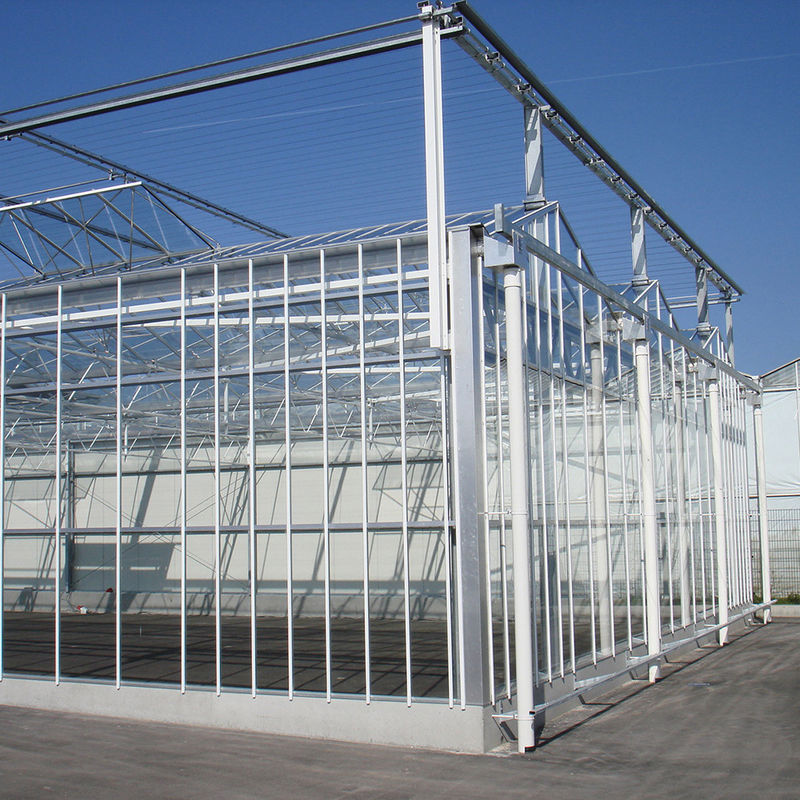

Hot-dip galvanized steel frame, no welding joint structure.
|
|
Cover material
|
Film with UV and anti-drip layer, PC sheet, 5mm reinforced glass.
|
|
Shading system
|
External and internal shading system to block the sunshine
|
|
Cooling system
|
Cooling pad and exhaust fans
|
|
Heating system
|
Gas/Coal/Oil fired boiler with blowers
|
|
Other system
|
Ventilation system, thermal insulation system, seedbed system, irrigation system, lighting system, intelligent control system etc.
|
|
|
|
Product features
1. Excellent insulation performance.
2. Light transmittance is moderate.
3. Good transmittance, low thermal conductivity.
4. Modern appearance, stable structure, beautiful and generous form, visual and smooth.
5. long life, beautiful appearance, to reduce duplication of construction and investment.
6. More gutter, large span, large displacement, strong wind resistance, suitable for large areas of wind and rainfall.
FAQ
1.You are manufacture factory or trading company?
We are manufacture factory. You are welcomed to visit us at any time. In the workshop,it has a complete advanced equipment system for making steel structures and panels. So we can make sure the good quality and also the competitive price.
2.How about your quality control?
Our products have passed CE EN1090 and ISO9001:2008.
3.Can you offer design service?
Yes,we have an engineer team and can design for you according to your requirements.Architectural drawing,structure diagram,processing detail drawing and installation drawing will be made and let you confirm in different time of the project.
4.What's the delivery time?
The delivery time depends on the size and quantity of building.Generally within 30 days after receiving the payment.And partial shipment is allowed for big order.
5.Do you offer service for installation?
We will give you the detailed construction drawing and the construction manual which could help you to erect and install the building step by step. We also could send the engineer to your local to help you if need.
6.What's the payment term?
50% deposit and 50% balance before shipment.
7.How to get a quote from you?
You can contact us by email, phone, Alibaba TM, WhatsApp, Skype and so on and you will get reply within anytime.
