Double Wall 8mm Polycarbonate Greenhouse Panels Lightweight Plastic Board
Double Layer 8 Mm Thickness Polycarbonate Sheet For Greenhouse Cover Materials used
Description of greenhouse cover materials
There are many kinds of greenhouse cover materials, and pc board is also one of the greenhouse coverings. PC board is also called polycarbonate sheet,polycarbonate panel, Kapron sheet, is an engineering plastic with excellent comprehensive properties, with outstanding physical, mechanical, electrical and thermal properties, euphemistically known as "the king of transparent plastics"
The pc board has extremely high light transmittance in the visible light region, while being almost impermeable to ultraviolet radiation. This highly effective UV shielding feature prevents fading of light-sensitive materials and items placed under the sheet.
The thickness of the pc board ranges from 4 mm to 40 mm, and it has double layers, multi-layers and special reinforced and stable structures according to different cohesion and thermal energy management requirements, providing customers with a variety of options. In addition to a variety of structures, our company can also provide customers with special light transmittance, thermal energy management, easy surface cleaning and agricultural anti-fog treatment.
Advantages of greenhouse cover matereials
1. With infrared light control function, it can effectively block or reduce the far-infrared heat energy in the solar spectrum
2. Crystal bright effect, special bayer crystal bright masterbatch modification, can change the glare caused by light refraction, so that the sun becomes soft
3. Anti-fog droplet function, the water droplets formed by the accumulation of fog will be shunted down the inner wall of the board
4. Light weight: the specific gravity is only half of that of ordinary glass, and it is not easy to be broken, saving time and effort in handling and installation
5. Sound insulation performance: can effectively reduce noise
6. Impact resistance: PC is the best impact resistance among thermoplastics, and solar panels made of PC can maintain good impact resistance for a long time in a wide temperature range.
7. Cold bending installation, heat and cold resistance, long-term stable physical properties at -40 to 120 degrees Celsius
Parameters Table of greenhouse cover matereials
| Layer | Shape | Thickess-mm | Transmittance | Weight(kg/m2) | U-value(W/m2.K) |
| 2 | Rectangle | 4 | 82% | 0.9 | 3.8 |
| 5 | 81% | 1.1 | 3.7 | ||
| 6 | 80% | 1.3 | 3.5 | ||
| 8 | 80% | 1.5 | 3.3 | ||
| 10 | 78% | 1.7 | 2.9 |
| Layer | Shape | Thickess-mm | Transmittance | Weight(kg/m2) | U-value(W/m2.K) |
| 3 | Rectangle | 8 | 76% | 1.6 | 3.0 |
| 10 | 74% | 1.8 | 2.9 | ||
| 12 | 72% | 2.0 | 2.7 | ||
| 16 | 70% | 2.6 | 2.3 |
| Layer | Shape | Thickess-mm | Transmittance | Weight(kg/m2) | U-value(W/m2.K) |
| 4 | Honeycomb | 8 | 62% | 2.0 | 2.1 |
| 10 | 60% | 2.1 | 1.9 | ||
| 12 | 58% | 2.3 | 1.7 |
| Layer | Shape | Thickess-mm | Transmittance | Weight(kg/m2) |
U-value(W/m2.K) |
| 5 | Rectangle | 8 | 73% | 1.8 | 2.1 |
| 10 | 71% | 2.0 | 1.9 | ||
| 12 | 70% | 2.2 | 1.7 |
| Layer | Shape | Thickess-mm | Transmittance | Weight(kg/m2) | U-value(W/m2.K) |
| 6 | Diamond | 12 | 60% | 2.2 | 2.1 |
| 16 | 59% | 2.9 | 1.8 | ||
| 18 | 58% | 3.0 | 1.7 |

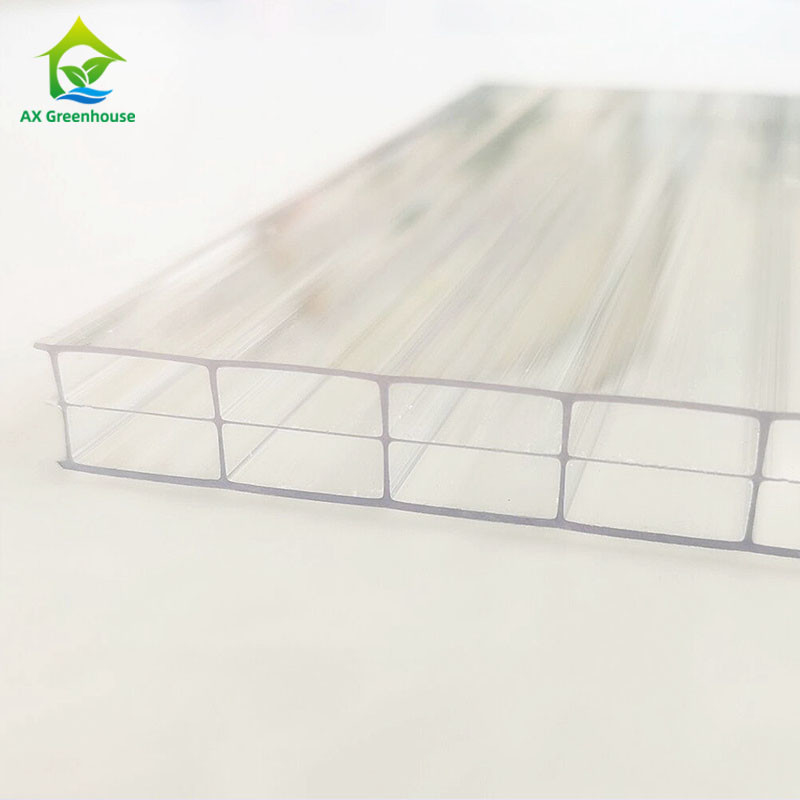

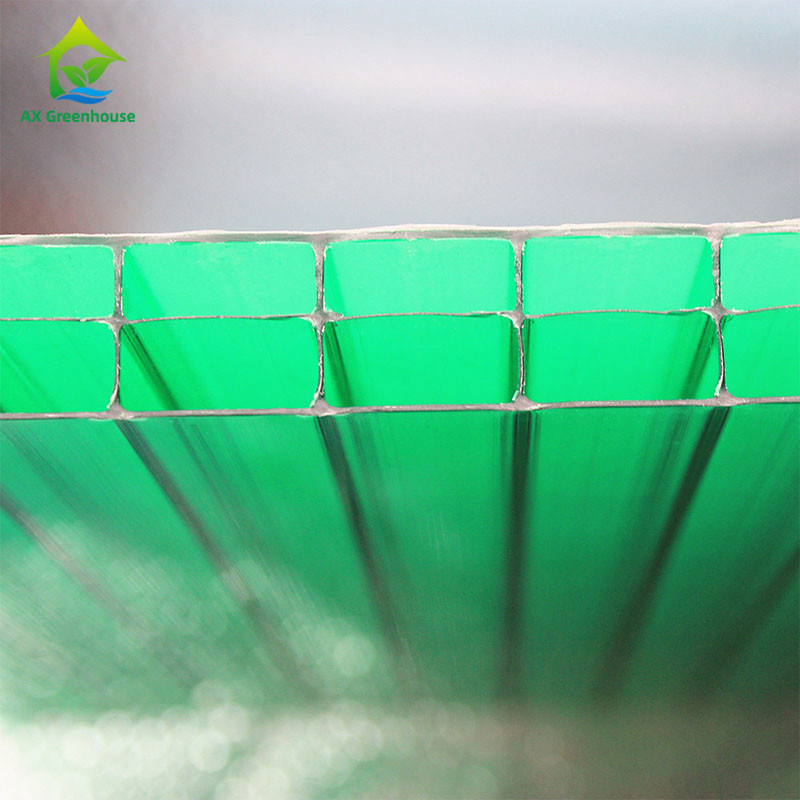

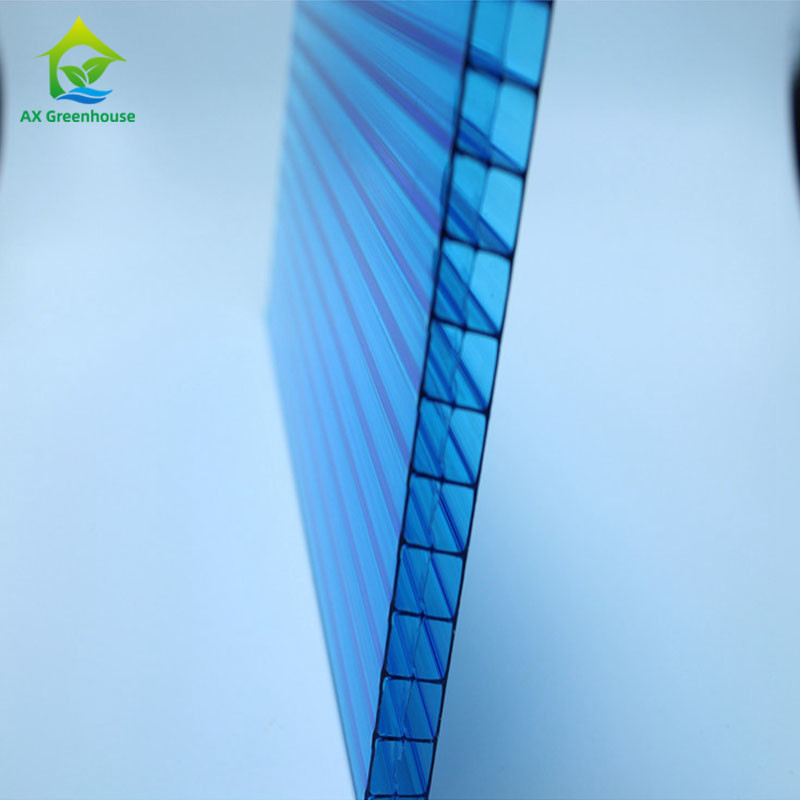

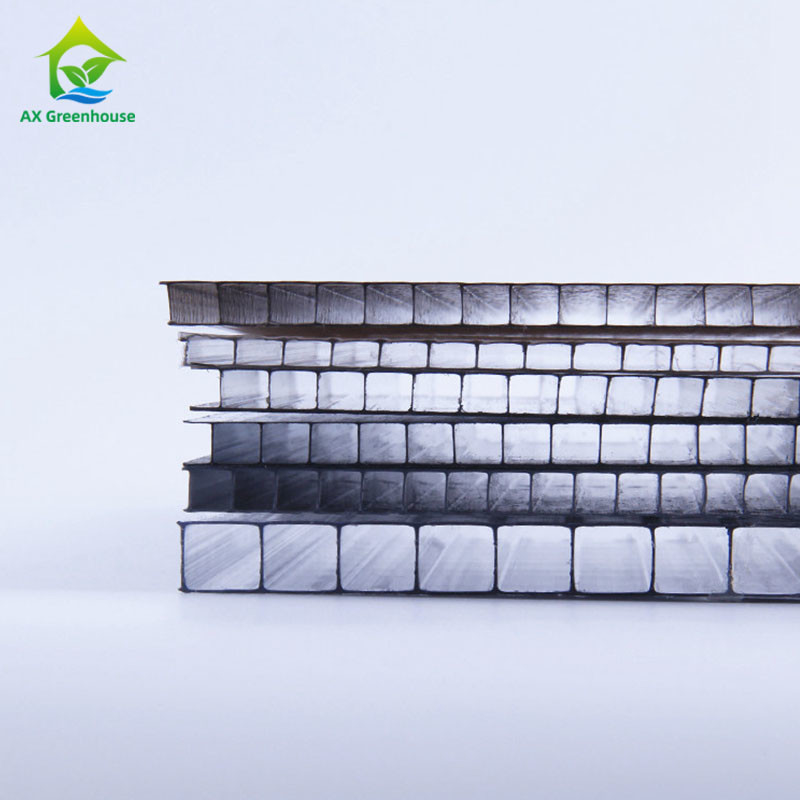

Details of PC sheet
Project disply
Packing of PC sheet
Company Profile
We are Sichuan Aixiang Agricultural Technology Co.,ltd. A professional greenhouse company based in Chengdu Sichuan Province.
We provide one-stop greenhouse solution including design,production,delivery,installation and Technical support service.
Our factory was founded in 1995,with more than 25 years experience,we provide professional greenhouse solution service not only for customers but also for other suppliers.
Till now we have exported our product and technology to many countries around the world,like the USA,Spain,Thailand,Canada and so on.
And in the future we will keep our Original intention to help more customers in greenhouse matters and keep improving our technology and products to build long-term relationship with our customer.
FAQ
1. Do you supply all mounting profiles?
Yes, we provide one-stop service, from production to installation
2. Will the board break during installation?
No,it is generally not damaged if it is not intentionally damaged during installation. The stretch and bending of the board are very good, not afraid of cold bending
3. Are you the factory?
Yes,we are the manufacturer,welcome to visit our factory!
4. Does it have high light transmittance?
The transmittance is related to its thickness. The greater the thickness of the board, the lower the transmittance. Its light transmittance is worse than that of film and glass. But the thicker the board, the higher the load capacity
Related Products
Application: For High-Tech Buildings
RefRactive Index: 70%-75%
Snow Load: 0.30kn/M2
Warranty: 24 Months
Thickness: 4/8/10/12/6 Mm
Length: Customoized
Width: 2.1m
Product Name: Greenhouse Cover Materials
