Customized Color Pc Sheet 6mm Anti Snow Greenhouse Cover Materils For USA Area Used
Description of greenhouse cover materials
Sunshine board (also known as PC sun board, hollow board, polycarbonate board, lighting board, PC board, etc.) is a kind of engineering plastic with good comprehensive performance, with excellent physical, mechanical, electrical and thermal properties, so it has the "transparent" It has good impact resistance, heat insulation, sound insulation, lighting, UV protection, flame retardant and other advantages. It is widely used in public and civil building lighting ceilings, carport canopies, passage ceilings, elevated road sound insulation walls, The top cover of shopping malls, plant greenhouses, etc., is currently the most ideal sun shed material in the world.
It has double layers, multi-layers and special reinforced and stable structures according to different cohesion and thermal energy management requirements, providing customers with a variety of options. In addition to a variety of structures, our company can also provide customers with special light transmittance, thermal energy management, easy surface cleaning and agricultural anti-fog treatment.
Advantages of greenhouse cover matereials
1. With infrared light control function, it can effectively block or reduce the far-infrared heat energy in the solar spectrum
2. Crystal bright effect, special bayer crystal bright masterbatch modification, can change the glare caused by light refraction, so that the sun becomes soft
3. Impact resistance: PC is the best impact resistance among thermoplastics, and solar panels made of PC can maintain good impact resistance for a long time in a wide temperature range.
4. Cold bending installation, heat and cold resistance, long-term stable physical properties at -40 to 120 degrees Celsius
5. The biggest feature of the hollow solar panel is that it can be cold-formed into arches with different bending radii along the direction of the ribs, which not only improves the lighting area, but also meets the bending requirements of architectural art design. And improve the bearing capacity of the board
Notice
1. To be stored indoors, never allow direct sunlight or rain
2. Stack it by hand, and the stacking height should not exceed two meters. There should be no heavy objects on the board, and there should be no hard objects between the boards.
3. The storage room must be kept clean and dry to avoid the intrusion of dust. Other chemicals should not be stored indoors at the same time.
4. During storage, do not damage or remove the protective film.
5. When transporting, it must be placed flat on a clean flat pallet with an area larger than the board. If necessary, it should be properly tied to avoid vibration and sliding. Pay attention to protect the edge of the board from damage and keep the double-sided protective film intact.
Parameters Table of greenhouse cover matereials
| Layer |
Shape |
Thickess-mm |
Transmittance |
Weight(kg/m2) |
U-value(W/m2.K) |
| 2 |
Rectangle |
4 |
82% |
0.9 |
3.8 |
| 5 |
81% |
1.1 |
3.7 |
| 6 |
80% |
1.3 |
3.5 |
| 8 |
80% |
1.5 |
3.3 |
| 10 |
78% |
1.7 |
2.9 |
| Layer |
Shape |
Thickess-mm |
Transmittance |
Weight(kg/m2) |
U-value(W/m2.K) |
| 3 |
Rectangle |
8 |
76% |
1.6 |
3.0 |
| 10 |
74% |
1.8 |
2.9 |
| 12 |
72% |
2.0 |
2.7 |
| 16 |
70% |
2.6 |
2.3 |
| Layer |
Shape |
Thickess-mm |
Transmittance |
Weight(kg/m2) |
U-value(W/m2.K) |
| 4 |
Honeycomb |
8 |
62% |
2.0 |
2.1 |
| 10 |
60% |
2.1 |
1.9 |
| 12 |
58% |
2.3 |
1.7 |
| Layer |
Shape |
Thickess-mm |
Transmittance |
Weight(kg/m2) |
U-value(W/m2.K) |
| 6 |
Diamond |
12 |
60% |
2.2 |
2.1 |
| 16 |
59% |
2.9 |
1.8 |
| 18 |
58% |
3.0 |
1.7
|
Project disply

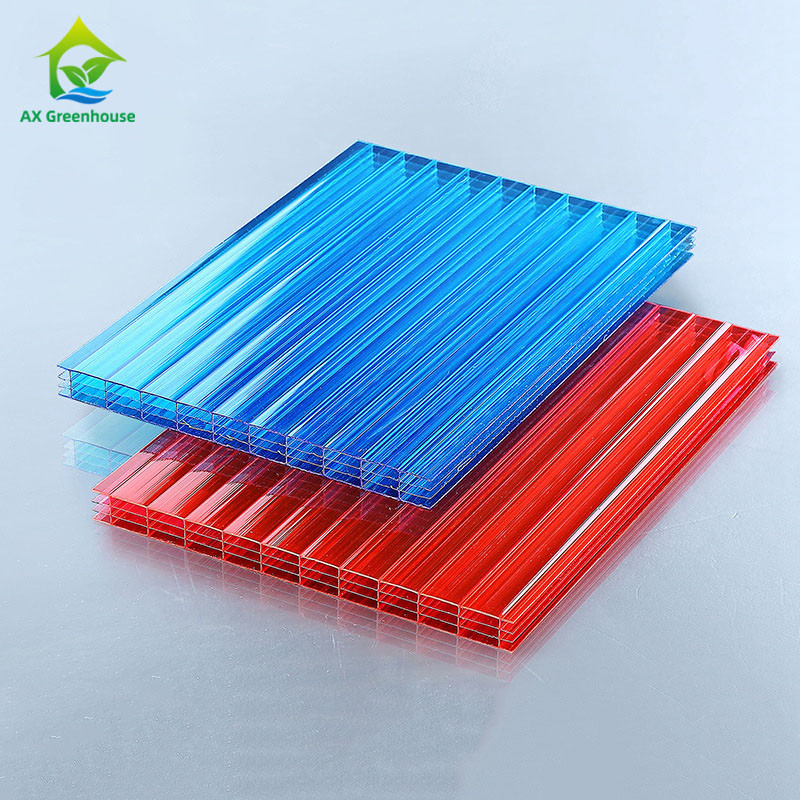

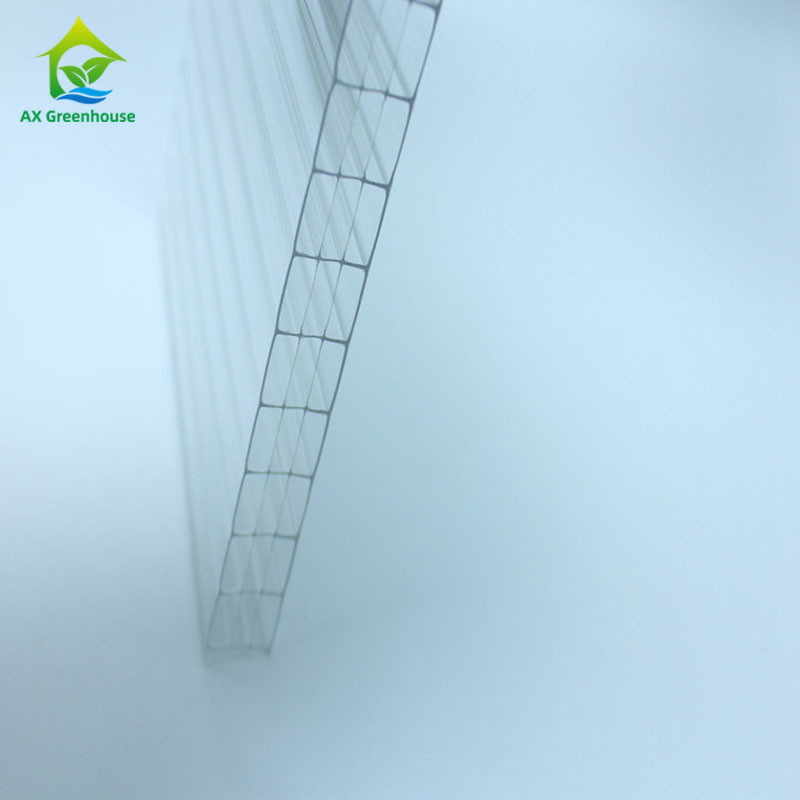

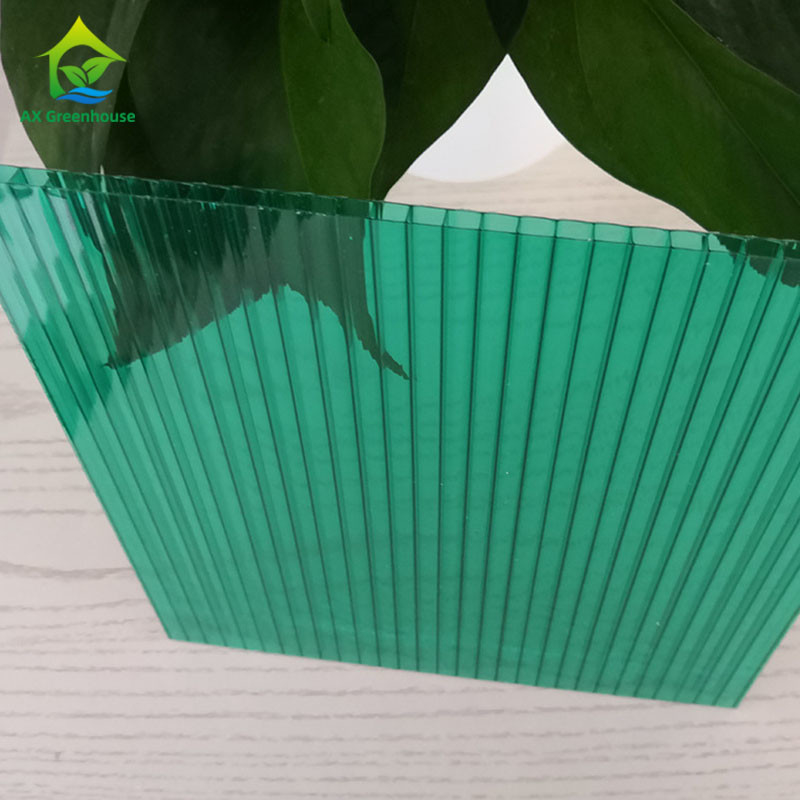

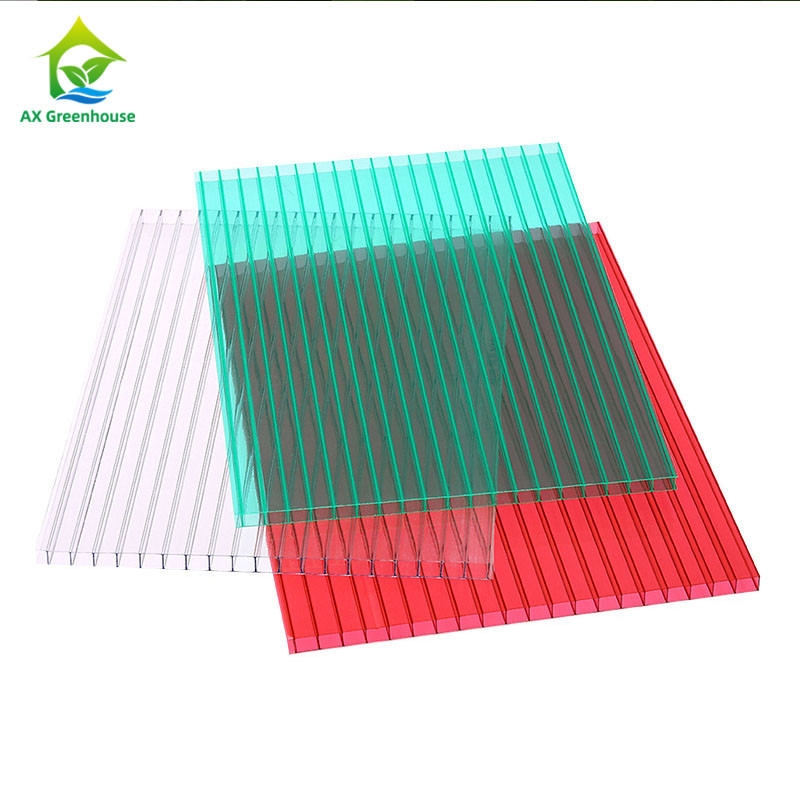

Details of PC sheet
Packing of PC sheet
The outside of the board will be rich in a layer of film to prevent scratches.
Company Profile
We are Sichuan Aixiang Agricultural Technology Co.,ltd. A professional greenhouse company based in Chengdu Sichuan Province.
We provide one-stop greenhouse solution including design,production,delivery,installation and Technical support service.
Our factory was founded in 1995,with more than 25 years experience,we provide professional greenhouse solution service not only for customers but also for other suppliers.
Till now we have exported our product and technology to many countries around the world,like the USA,Spain,Thailand,Canada and so on.
And in the future we will keep our Original intention to help more customers in greenhouse matters and keep improving our technology and products to build long-term relationship with our customer.
FAQ
1. Do you supply all mounting profiles?
Yes, we provide one-stop service, from production to installation
2. Will the board break during installation?
No,it is generally not damaged if it is not intentionally damaged during installation. The stretch and bending of the board are very good, not afraid of cold bending
3. Are you the factory?
Yes,we are the manufacturer,welcome to visit our factory!
4. Does it have high light transmittance?
The transmittance is related to its thickness. The greater the thickness of the board, the lower the transmittance. Its light transmittance is worse than that of film and glass. But the thicker the board, the higher the load capacity
