95mm Width Galvanized Steel Transmission Rack Greenhouse Accessories

Greenhouse Accessories Transmission Rack For Transmission System Used

Description of Greenhouse Accessories

In the greenhouse with the transmission system, the parts that need to be driven are driven by the rack and pinion through the motor. The rack and pinion plays a very important role in the transmission of the greenhouse!
Our commonly used rack and pinion systems include automatic sunshade system, automatic shading system, top window system, side window system and other automatic transmission systems.
We usually have two types of racks, one is a straight rack, which is mostly used for lamour systems, and the other is an arc-shaped rack, which is mostly used for window opening systems.
A complete transmission system requires accessories such as geared motors, transmission tubes, gears, racks, and bearing seats.

For example, the continuous window opening system consists of several rows of gear racks, driven by the drive shaft, to open the greenhouse windows. Continuous window opening is suitable for various types of greenhouses, which can effectively increase the ventilation area of the greenhouse and achieve the effect of increasing the ventilation and cooling of the greenhouse.
The torque distribution type window opening system is a kind of continuous window opening. A geared motor drives a series of torque distributors. The torque distributor acts on the drive shaft of the continuous window opening to realize the window opening. The staggered fenestration system, also known as the push rod fenestration system, is suitable for Venlo-type greenhouses. When the window is opened, the rack and pinion are driven by the drive shaft to move, push the push rod to move forward, and open the window under the action of the support arm. Staggered fenestrations are only available for overhead fenestration systems. The staggered window opening is divided into two types: orbital type and swing arm type due to different rack and pinion mechanisms. The main difference between the two is that the former has a large single rack thrust and is suitable for greenhouses with a long length, and the latter is suitable for a small length, but has a simple structure and a low cost. System composition: gears, racks, push-pull rods, geared motors, drive shafts, support arms and other accessories

Specification of Greenhouse Accessories

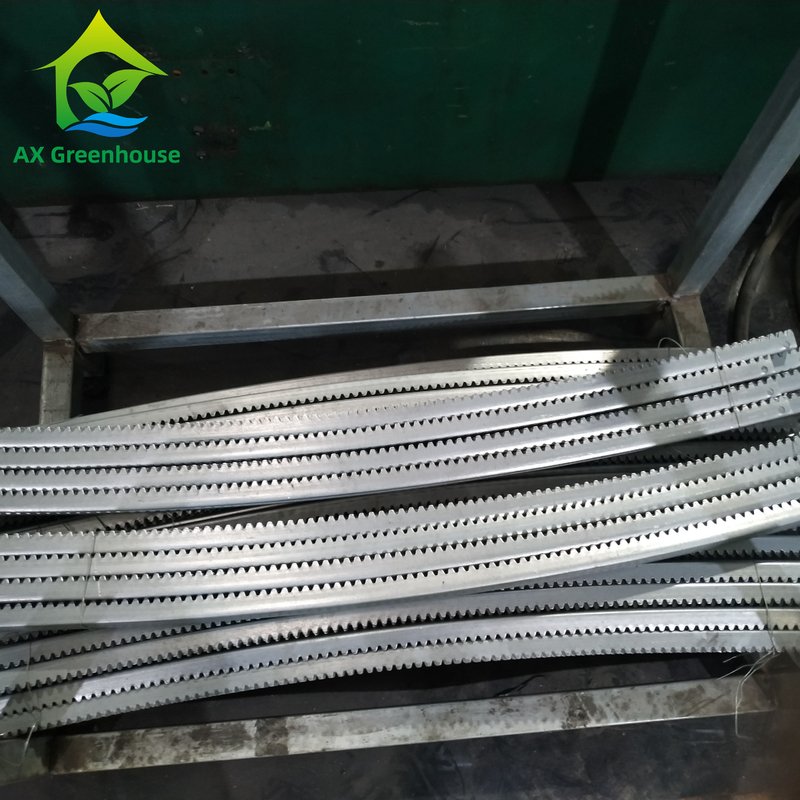

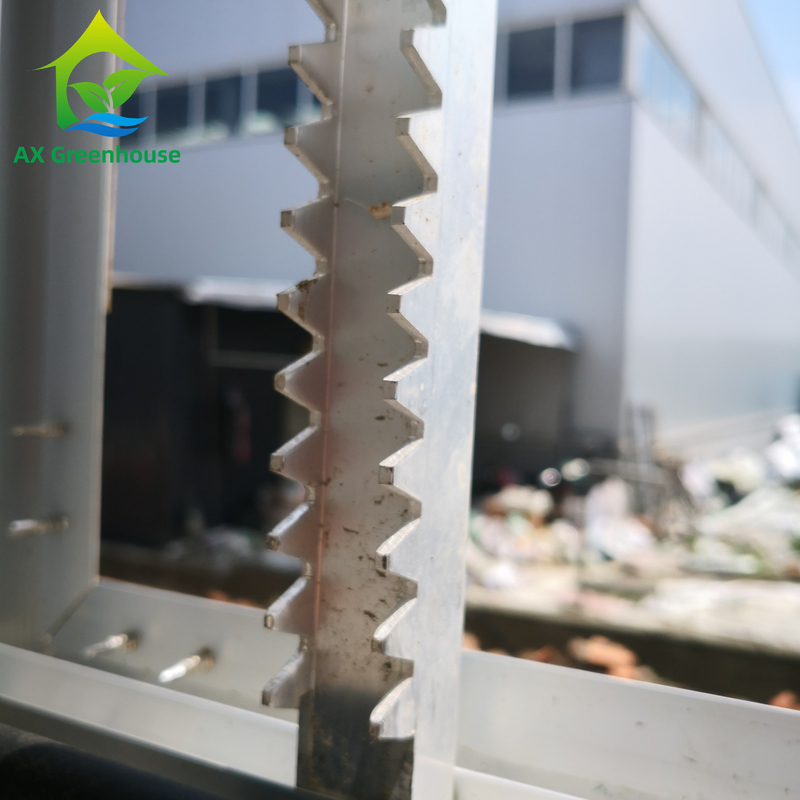

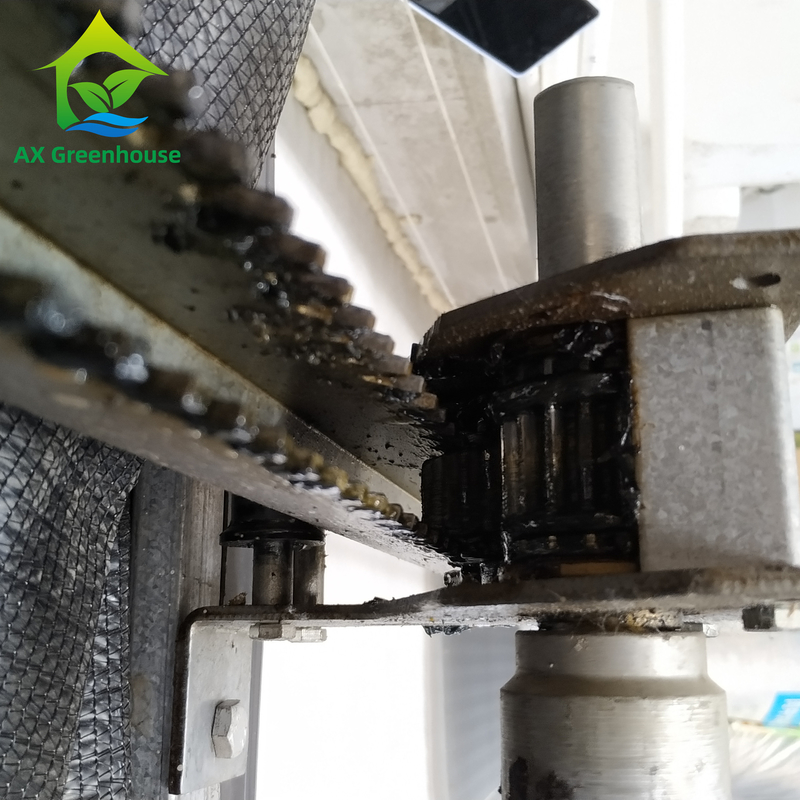

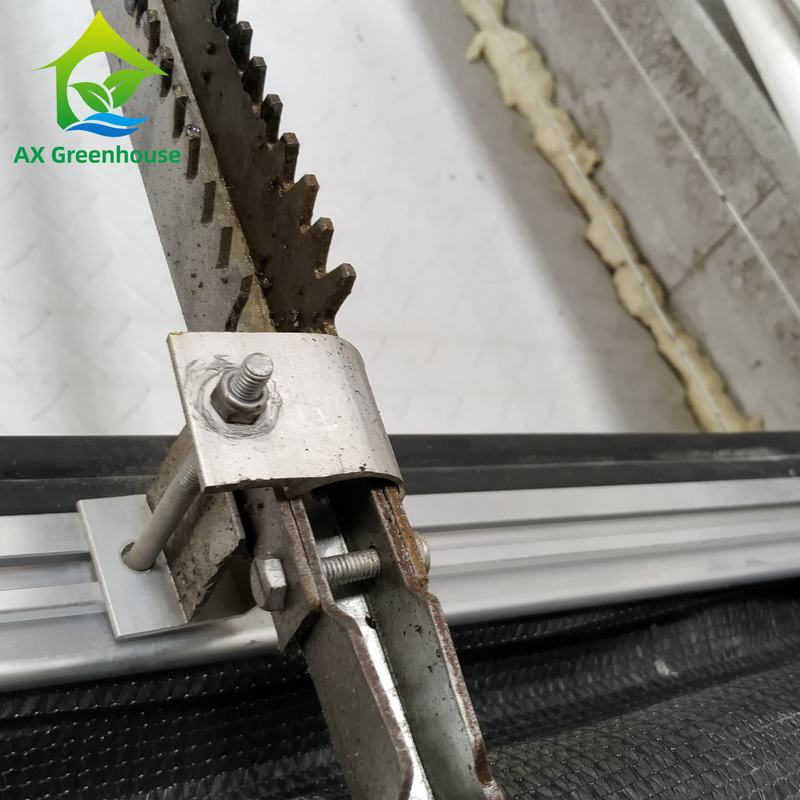

Detailed picture of Greenhouse Accessories

Company profile

We are Sichuan Aixiang Agricultural Technology Co.,ltd. A professional greenhouse company based in Chengdu Sichuan Province.

We provide one-stop greenhouse solution including design,production,delivery,installation and Technical support service.

Our factory was founded in 1995,with more than 25 years experience,we provide professional greenhouse solution service not only for customers but also for other suppliers.

Till now we have exported our product and technology to many countries around the world,like the USA,Spain,Thailand,Canada and so on.

And in the future we will keep our Original intention to help more customers in greenhouse matters and keep improving our technology and products to build long-term relationship with our customer.

FAQ

1. Are you manufacturer?
Yes, we are manufacturer for types of greenhouse for 20 years.
With professional engineer team for suitable greenhouse design, complete after-sale service and factory direct sale for you!

3. How about packaging and shipping?
A. The goods is marked according to their name and parts, accessories into carton, pipes by bundle, all goods load into the
container directly(suggest you buy whole container so that we can drag the container to our factory and load well all goods).
B. We provide real-time photos for you to check when loading, so that you can see where the goods are stacked in the container

4. Is there any instruction or manual guide installation?
A.Yes, English manual with drawing shipped together with goods for guiding your installation easily.
B.Engineer overseas guiding installation is available,also can guide you online.
C.Your worker or engineer is welcomed to our factory for learning your greenhouse installation.
