Carbon Dioxide CO2 Concentration Meter Greenhouse Monitoring System
Product Description
CO2 Sensor Carbon Dioxide Sensor For Greenhouse Used Greenhouse Monitoring System
Greenhouse Intelligent Control System
What's the greenhouse intelligent control system?
The greenhouse intelligent control system was developed as part of the growing application of Internet of Things technology in agriculture. This comprehensive system provides monitoring and control for greenhouse irrigation environments, including equipment operation and environmental data collection, analysis, and visualization.
The system includes these components:
- Climate Control System
- Weather station
- Three-element sensor
- Carbon dioxide sensor
- Soil moisture sensor
- EC/PH wireless photovoltaic sensor
Climate Control System (HOSMART)
Our HOSMART climate controller supports independent control of 4 climate zones with completely separate parameters and procedures. For larger greenhouses, the control scenario can be divided into 12 independent cells, reducing investment costs while maintaining precise control.
12 Control Modules:
| 1. Time period module |
5. Shading curtain control module |
9. Lighting controlling module |
| 2. Temperature control module |
6. Mixing valve control module |
10. CO2 control module |
| 3. Humidity control module |
7. Circulating fan control module |
11. Timer control module |
| 4. Window control module |
8. Mist Control Module |
12. Customize program module |
HOSMART Performance Parameters
| Parameter |
Specification |
| Power supply |
AC 220V,50hz(customized) |
| IO input |
standard 32-channel input |
| IO output |
standard 32-channel IO output (AC 24v) |
| IO input expansion |
up to 116 IO inputs can be expanded |
| IO output expansion |
up to 128-channel IO output |
| Networking mode |
WIFI/Network port/ phone card |
| Analog input |
2 channels of analog input can be expanded |
| Analog output |
4 analog outputs can be expanded |
| Operation interface |
10-inch capacitive touch screen |
| Control zone |
4 independent zones |
| Weight |
25kg |
| Size(L*W*H) |
46cm*23cm*46cm |
Perfect climatic conditions are the ideal growth environment for crops. HOSMART provides high-quality solutions for your greenhouse climate management.
Weather Station
The weather station monitors outdoor temperature, humidity, light, wind speed, wind direction, and rainfall. Installed on greenhouse roofs, it provides accurate outdoor data to optimize climate control strategies and reduce energy costs.
Weather Station Advantages
| 1. Modular design, measurement elements can be configured |
4. Low power consumption, Low maintenance |
| 2. Meteorological accuracy |
5. High stability |
| 3. Wireless transmission, can connect to the Internet |
6. High precision |
Weather Station Specifications
| Feature |
Specification |
| Power by |
Solar + lithium battery (solar power 2W, lithium battery capacity 3400MAH) |
| Measurement parameters |
Air temperature, air humidity, light intensity, wind speed, wind direction, rain and snow |
| Extension ports |
Support for sensor expansion such as rainfall, total radiation or effective radiation, soil temperature and humidity |
| Data transmission |
GPRS and 433M local wireless (500 meters visual distance) |
| Data view |
Data can be directly transferred to mobile APP and computer platform |

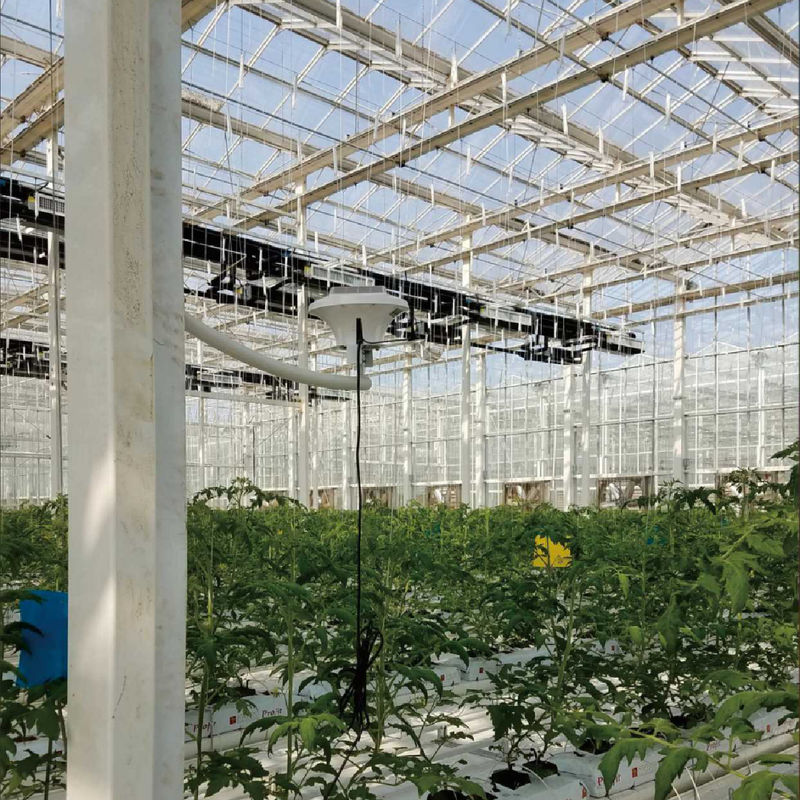

Three-in-One Sensor
This integrated sensor measures light, humidity, and temperature, providing the HOSMART controller with accurate indoor environmental data for analysis and decision-making.
Advantages
- Wireless design, easy installation
- High integration and low maintenance
- Precise measurement
Specifications
| Power by |
AC 220V(customized) |
| Measuring range |
0~50000PPM |
| Data transmission |
433M local wireless 200m |
| Working environment |
Temperature -10℃ to 70℃ Humidity 0%-90% |
CO2 Sensor
This sensor works with CO2 supplement devices to provide real-time greenhouse CO2 levels. Using NDIR infrared absorption technology, it offers high accuracy, stability, and sensitivity.
Advantages
- Data wireless transmission
- Accurate measurement
- Suitable for all crops

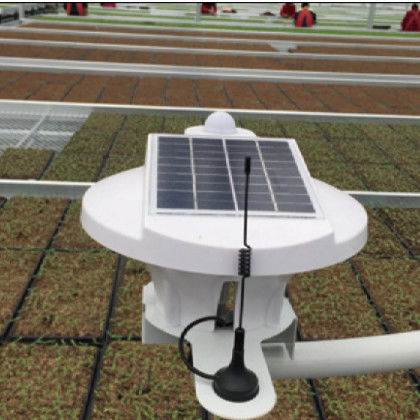

EC Wireless Photovoltaic Sensor
Measures soluble salt concentration (EC value) in irrigation water to ensure optimal nutrient levels for crop growth, preventing damage from improper concentrations.
Wireless Photovoltaic PH Sensor
Measures irrigation water pH to ensure proper nutrient absorption, with different crops requiring specific pH levels for optimal growth.
Frequently Asked Questions
1. Are you factory?
Yes, we are manufacturer for types of greenhouse for 15 years. With professional engineer team for suitable greenhouse design, complete after-sale service and factory direct sale for you now!
2. How to ensure the quality of the products?
A. We are golden supplier of Alibaba and engaged in exporting for 10 years, goods had been exported to more than 40 countries and got good reputation in worldwide market. Long-term and mutual-benefits cooperation is our management philosophy.
B. To confirm every batch goods is in good condition, our inspection department will examine and test the products thoroughly and carefully before delivery. Necessary test and certification can be obtained as your request.
3. How about packaging and shipping?
A. The goods is marked according to their name and parts, accessories into carton, pipes by bundle, all goods load into the container directly (suggest you buy whole container so that we can drag the container to our factory and load well all goods).
B. Shipping port is usually Qingdao/shanghai, we can arrange the shipping for you after getting your compensation.
4. Is there any instruction or manual guide installation?
A. Yes, English manual with drawing and video shipped together with goods for guiding your installation easily.
B. Engineer overseas guiding installation is available.
C. Your worker or engineer is welcomed to our factory for learning your greenhouse installation.
