Name: Hydroponic Growing System Abb Flow Greenhouse Rolling Benches Multi Layer
Brand: Sichuan Aixiang Agricultural Technology Co., Ltd.
SKU: AX-RB006
Price: 158.00 USD
Availability: InStock

Home > products > Greenhouse Rolling Benches >

Hydroponic Growing System Abb Flow Greenhouse Rolling Benches Multi Layer

Abb Flow Greenhouse Rolling Benches

Hydroponic Growing Greenhouse Rolling Benches

Place of Origin:

China

Brand Name:

AX Greenhouse

Model Number:

AX-RB006

Request A Quote

Hydroponic Growing System Abb Flow Greenhouse Rolling Benches Multi Layer

Product Details

Features:

Movable

Product Name:

Greenhouse Rollng Benches

Application:

Seedling, Growing

Width:

4ft

Color:

Grey,

Material:

ABS Tray

Length:

Customized

Moq:

50m2

Payment & Shipping Terms

Minimum Order Quantity

1 set

Price

USD58-259 per set

Packaging Details

Package

Delivery Time

5-8 work days

Payment Terms

T/T

Supply Ability

1000square meters per day

Movable Hydroponic Ebb And Flood Customized Greenhouse Rolling Benches Seedbed

Get Best Price

Video

Ebb And Flow 4FT*8FT Vertical Hydroponic Movable Rolling Bench Grow Table With Pole

Get Best Price

Video

Custom Size Rolling Bench Seedbed for Tomato Plant Grow Table Ebb Flow Indoor Farming

Get Best Price

Video

Double Layers Seedbed Ebb And Flow Greenhouse Rolling Bench Grow Tables

Get Best Price

+8613982313279

sales04@axgreenhouse.com

86--28-68745748

Contact Now

Product Description

Multi-Layer Hydroponic Growing System Abb&Flow Greenhouse Rolling Benches

Product Description

Tidal irrigation mobile seedbed cultivation bed is a kind of cultivation bed with a plastic structure, and its bed surface is made of plastic tidal seedling tray, which is also known as bottom irrigation cultivation bed. This tidal irrigation mobile seedbed uses basically the same columns and supports as the commercial metal structure cultivation bed, and the bed surface is molded impervious plastic seedling tray.

When applied, irrigation water or well-proportioned nutrient solution diffuses from the outlet hole, so that the water level in the entire seedbed slowly rises and reaches the appropriate liquid level height (called high tide), submerging the cultivation bed to a depth of about 2-3 cm; After maintaining a certain period of time (full absorption of crop roots), after about 10-15 minutes, the nutrient solution rises to the surface of the medium in the pot due to capillary action, at this time, open the return water, discharge the nutrient solution, return to the nutrient solution pool (called falling tide), and send the nutrient solution out when another cultivation bed needs water. The tidal irrigation system has equipment to adjust the pH value of the nutrient solution and the concentration of various nutrients, a filtration system and a disinfection system to increase the medium to avoid excessive contamination of the nutrient solution.

Detailed Images

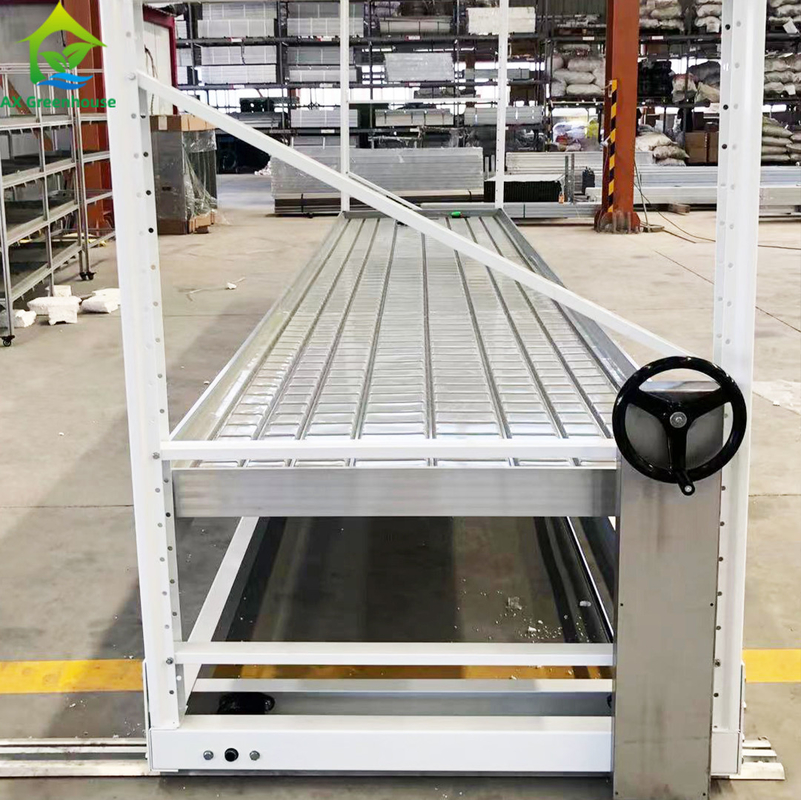

Flow tray

The plastic tray is the basic part of the flood table. It's used for plant vegetables and flowers cultivation. They come in
several sizes and color. Which is better? Every product have their own advantages. Black and gray tray absorb more heat than white
trays, White trays also reflect more light than black trays but, the deference most likely, won't result in significantly higher
yields.

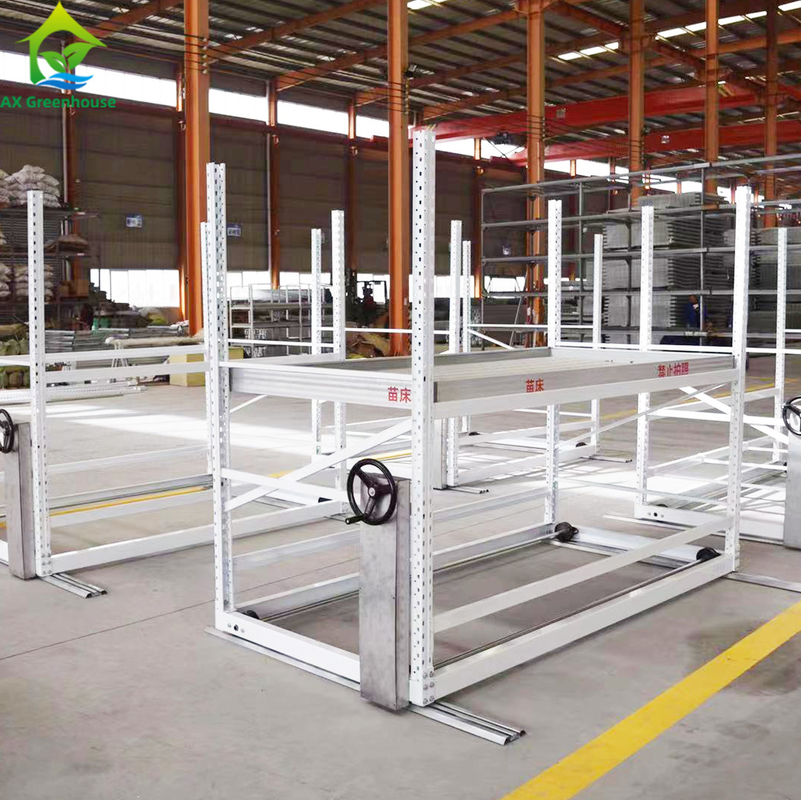

Stand frame

The frame of the tidal seedbed is hot-dip galvanized, and the bed surface is made of ABS

panel, prevent the tray breaking

wheel let the tray move from left to right.

Specification

Product name	Rolling bench seedbed teble ebb and flow system
Size	4ftx8ft,5.4ftx11.8ft,5.6ftx14.6ft,or customized
Move distance	25-30cm(each side)
Standard height	about 70cm
Material	ABS tray Aluminum alloy frame Hot galvanized legs
Load Capacity	70-90 KGS/SQM
Composition	End trays, middle tray and division trays
Rolling range	Around 30-40cm from middle to each side
Application	Greenhouse Hydroponics System,medicine,seeding,flower,vegetable
Hot sale size	4x8ft,4x10ft,5x10ft,5x20ft,Customized
Payment Terms	30% deposit before production and 70% balance before loading.
Packing Materials	(1)Five layer corrugated paper (2)Poly-foam inner lining.Poly-foam inner lining. (3)PE foam between piece and piece, with paper corner protections

Company Profile

Sichuan Aixiang Technology Co., ltd is located in Chengdu city, which is known as its water, and it is one of the protection of world culture heritage. We are major in the greenhouse materials manufacturing, sales, and technical service. And we are engaging in the advanced greenhouse projects and designing. We are also a professional greenhouse supplier of providing all kind of systems and their material. The most importance is that we have rich experience of designing and installing of blackout greenhouse, glass greenhouse, PC-sheet greenhouse, plastic-film greenhouse, tunnel greenhouse and solar greenhouse etc. More and more companies have built up cooperation with our company based on the advantage of the quality and price of our products. We have been insisting on the strict quality standards and complying with International Quality System Authentication of ISO 9001 in the past of more than 10 years. We are now applying professional technology and considerate service to make great partners, cooperating with all of you. Welcome to our company.

FAQ

1. Are you a factory outlet or a special foreign trade company?

A:We are factory direct sales, all the goods are shipped directly from the factory.

2. Does the greenhouse accept customization?

A: We accept custom greenhouses of any size.

3. What is the packaging of goods?

A:Greenhouse covered materials and equipment using carton packaging. Other accessories in the greenhouse using nude packing. Can

be packaged according to customer requirement.

4. What is your installation and after sales?

A: Installation is very simple, you can install it yourselves. We also have professional engineers to install it for you if

needed. Free repair within two years after your purchase(including small parts).Sales 24 hours online to answer your questions,any

demands or questions, please feel free to contact us.

5. How long does it take to delivery?

A: The first shipment will be sent about 25 days after your first deposit.
