Commercial Greenhouse Solutions for Mid-to-Large Scale Projects - AX Greenhouse

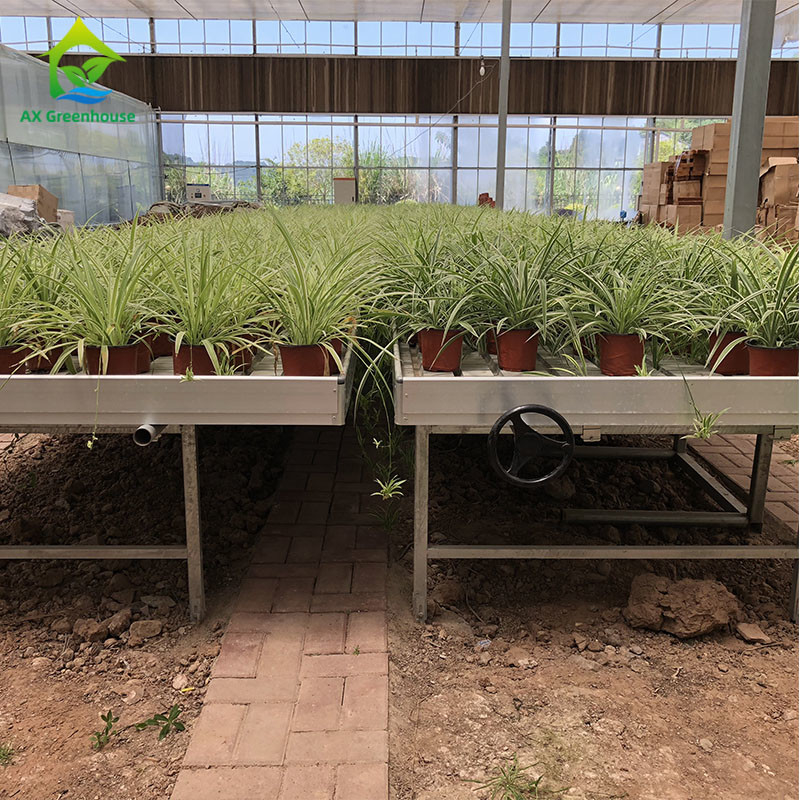

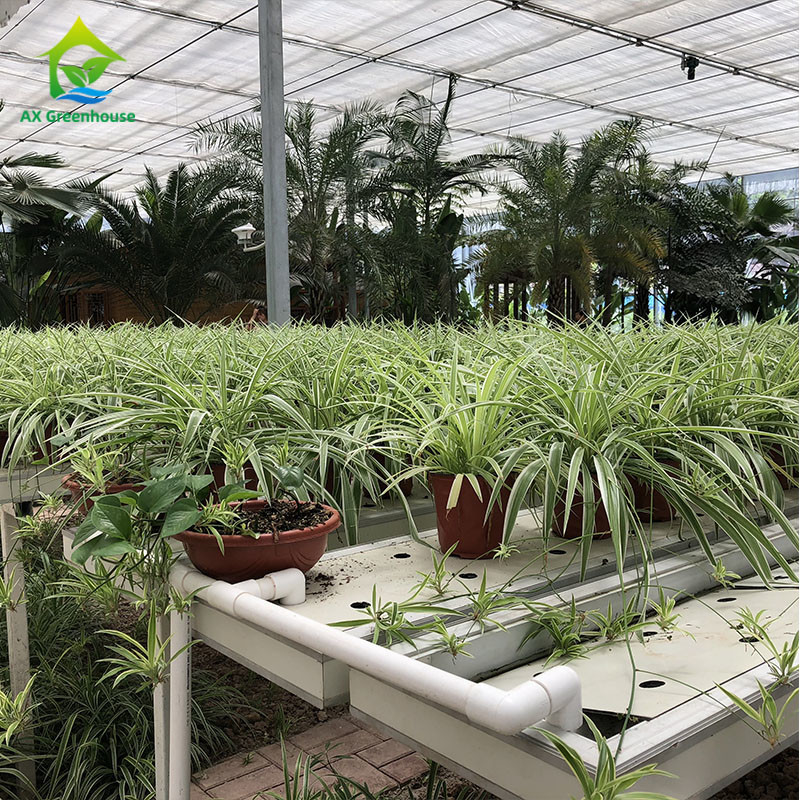

ABS Panel Ebb Flow Tray Medical Plants Greenhouse Rolling Benches Single Layer 1

ABS Panel Ebb Flow Tray Medical Plants Greenhouse Rolling Benches Single Layer 2

ABS Panel Ebb Flow Tray Medical Plants Greenhouse Rolling Benches Single Layer 3

ABS Panel Ebb Flow Tray Medical Plants Greenhouse Rolling Benches Single Layer 4

ABS Panel Ebb Flow Tray Medical Plants Greenhouse Rolling Benches Single Layer

Name: ABS Panel Ebb Flow Tray Medical Plants Greenhouse Rolling Benches Single Layer
Brand: AX Greenhouse

Moq:

50m2

Width:

4ft,5ft

Color:

Grey

Length:

10 Meters

Material:

ABS Tray

Application:

Nursery

Payment Terms:

T/T

Supply Ability:

1000square meters per day

Delivery Time:

5-8 work days

Packaging Details:

Package

Price:

USD58-259 per set

Minimum Order Quantity:

1 set

Highlight:

Single Layer Greenhouse Rolling Benches, Ebb Greenhouse Rolling Benches, ABS Panel Greenhouse Rolling Benches

Product Name:

Greenhouse Rollng Benches

Features:

Moving Left And Right

Inquiry

Write a Review

Single Layer ABS Panel Ebb And Flow Tray Medical Plants Greenhouse Rolling Benches

Product Description

More advanced irrigation methods are applied to tidal irrigation seedbeds, which save water and fertilizer, have high efficiency and good yield. It belongs to the automatic operation of the greenhouse, which saves a lot of labor costs, and is more convenient to maintain, time-saving and labor-saving.

When applied, irrigation water or well-proportioned nutrient solution diffuses from the outlet hole, so that the water level in the entire seedbed slowly rises and reaches the appropriate liquid level height (called high tide), submerging the cultivation bed to a depth of about 2-3 cm; After maintaining a certain period of time (full absorption of crop roots), after about 10-15 minutes, the nutrient solution rises to the surface of the medium in the pot due to capillary action, at this time, open the return water, discharge the nutrient solution, return to the nutrient solution pool (called falling tide), and send the nutrient solution out when another cultivation bed needs water. The tidal irrigation system has equipment to adjust the pH value of the nutrient solution and the concentration of various nutrients, a filtration system and a disinfection system to increase the medium to avoid excessive contamination of the nutrient solution.

ABS Panel Ebb Flow Tray Medical Plants Greenhouse Rolling Benches Single Layer 0

Detailed Images

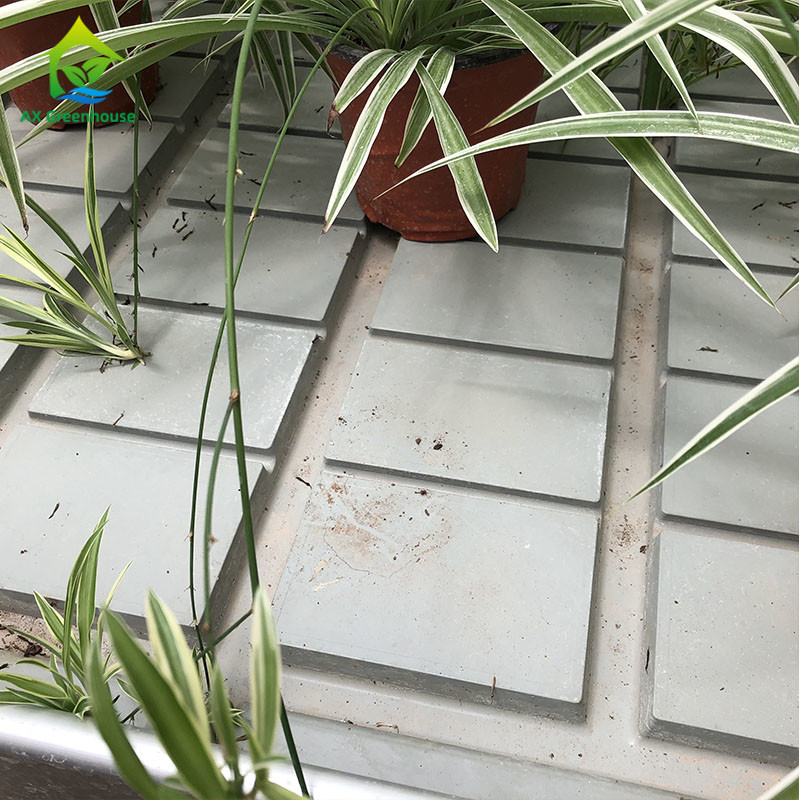

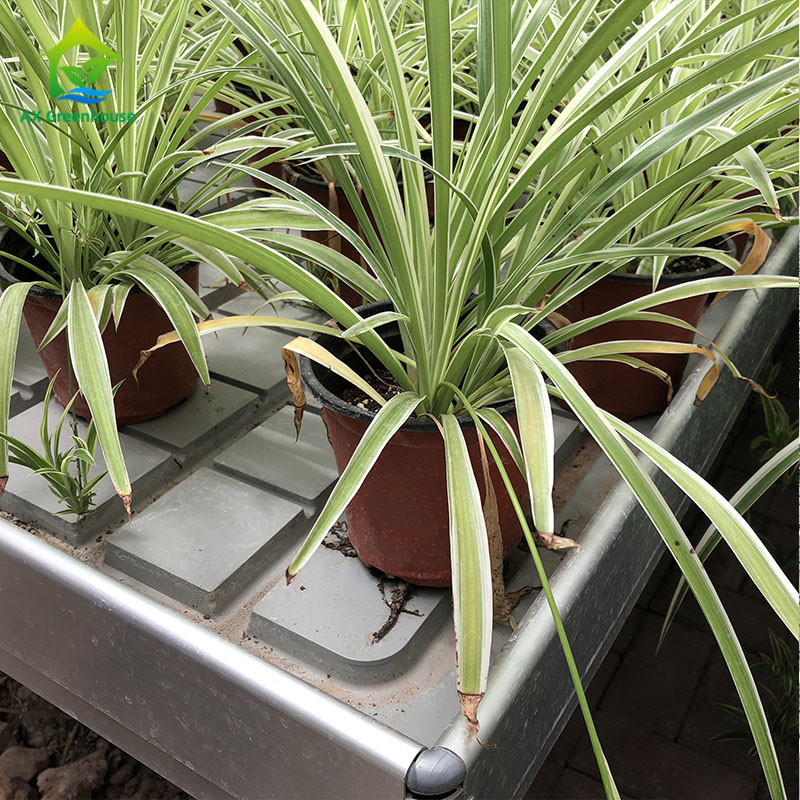

Flow tray

The plastic tray is the basic part of the flood table. It's used for plant vegetables and flowers cultivation. They come in
several sizes and color. Which is better? Every product have their own advantages. Black and gray tray absorb more heat than white
trays, White trays also reflect more light than black trays but, the deference most likely, won't result in significantly higher
yields.

Stand frame

The frame of the tidal seedbed is hot-dip galvanized, and the bed surface is made of ABS

panel, prevent the tray breaking

wheel let the tray move from left to right.

ABS Panel Ebb Flow Tray Medical Plants Greenhouse Rolling Benches Single Layer 6

Specification

Product name	Rolling bench seedbed teble ebb and flow system
Size	4ftx8ft,5.4ftx11.8ft,5.6ftx14.6ft,or customized
Move distance	25-30cm(each side)
Standard height	about 70cm
Material	ABS tray Aluminum alloy frame Hot galvanized legs
Load Capacity	70-90 KGS/SQM
Composition	End trays, middle tray and division trays
Rolling range	Around 30-40cm from middle to each side
Application	Greenhouse Hydroponics System,medicine,seeding,flower,vegetable
Hot sale size	4x8ft,4x10ft,5x10ft,5x20ft,Customized
Payment Terms	30% deposit before production and 70% balance before loading.
Packing Materials	(1)Five layer corrugated paper (2)Poly-foam inner lining.Poly-foam inner lining. (3)PE foam between piece and piece, with paper corner protections

Company Profile

ABS Panel Ebb Flow Tray Medical Plants Greenhouse Rolling Benches Single Layer 7

Sichuan Aixiang Technology Co., ltd is located in Chengdu city, which is known as its water, and it is one of the protection of world culture heritage. We are major in the greenhouse materials manufacturing, sales, and technical service. And we are engaging in the advanced greenhouse projects and designing. We are also a professional greenhouse supplier of providing all kind of systems and their material. The most importance is that we have rich experience of designing and installing of blackout greenhouse, glass greenhouse, PC-sheet greenhouse, plastic-film greenhouse, tunnel greenhouse and solar greenhouse etc. More and more companies have built up cooperation with our company based on the advantage of the quality and price of our products. We have been insisting on the strict quality standards and complying with International Quality System Authentication of ISO 9001 in the past of more than 10 years. We are now applying professional technology and considerate service to make great partners, cooperating with all of you. Welcome to our company.

FAQ

1. Are you a factory outlet or a special foreign trade company?

A:We are factory direct sales, all the goods are shipped directly from the factory.

2. Does the greenhouse accept customization?

A: We accept custom greenhouses of any size.

3. What is the packaging of goods?

A:Greenhouse covered materials and equipment using carton packaging. Other accessories in the greenhouse using nude packing. Can

be packaged according to customer requirement.

4. What is your installation and after sales?

A: Installation is very simple, you can install it yourselves. We also have professional engineers to install it for you if

needed. Free repair within two years after your purchase(including small parts).Sales 24 hours online to answer your questions,any

demands or questions, please feel free to contact us.

5. How long does it take to delivery?

A: The first shipment will be sent about 25 days after your first deposit.
