Product Description

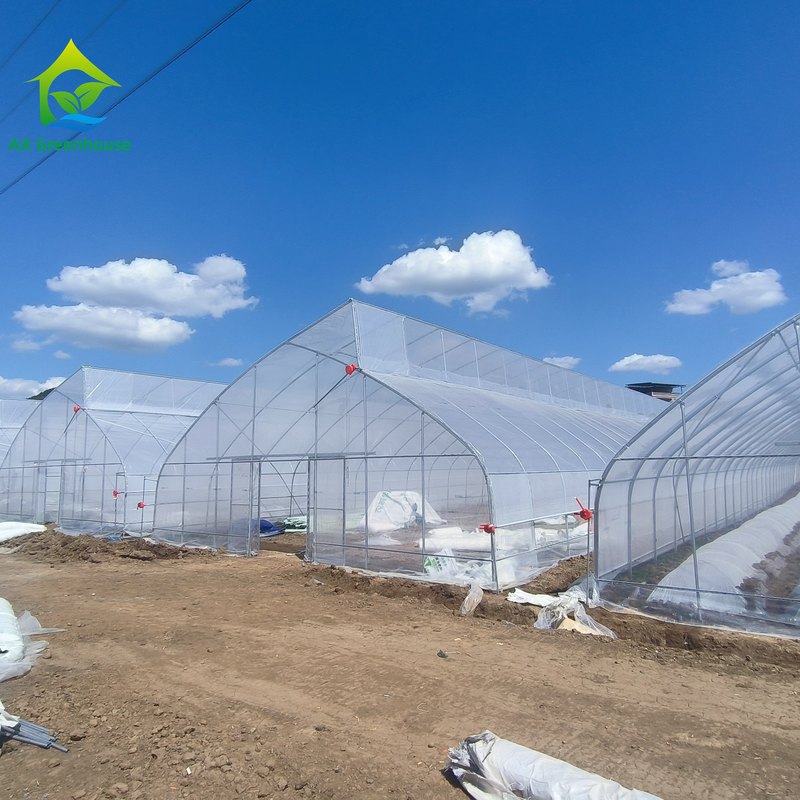

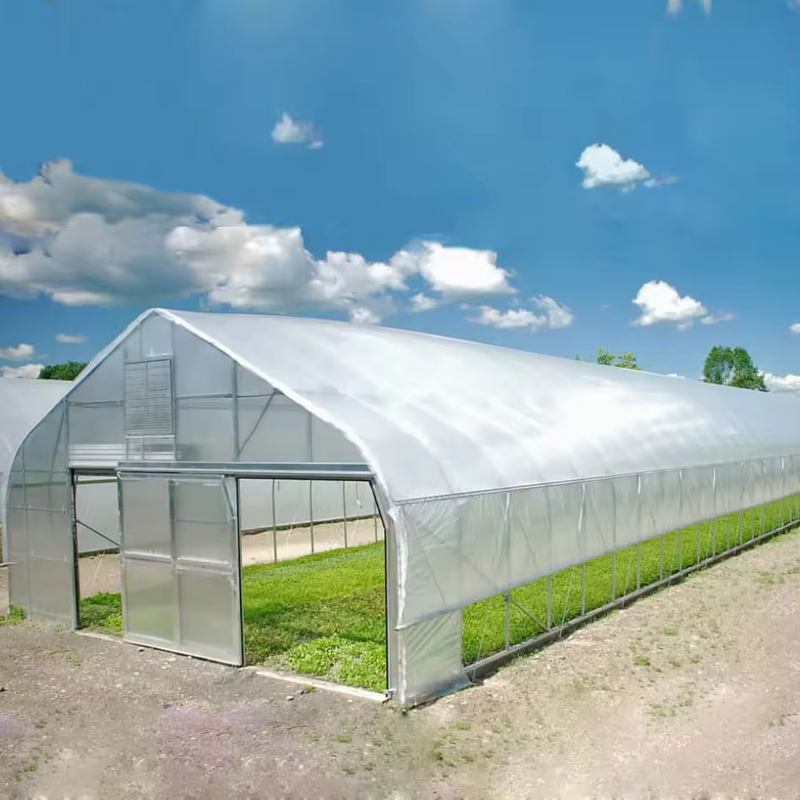

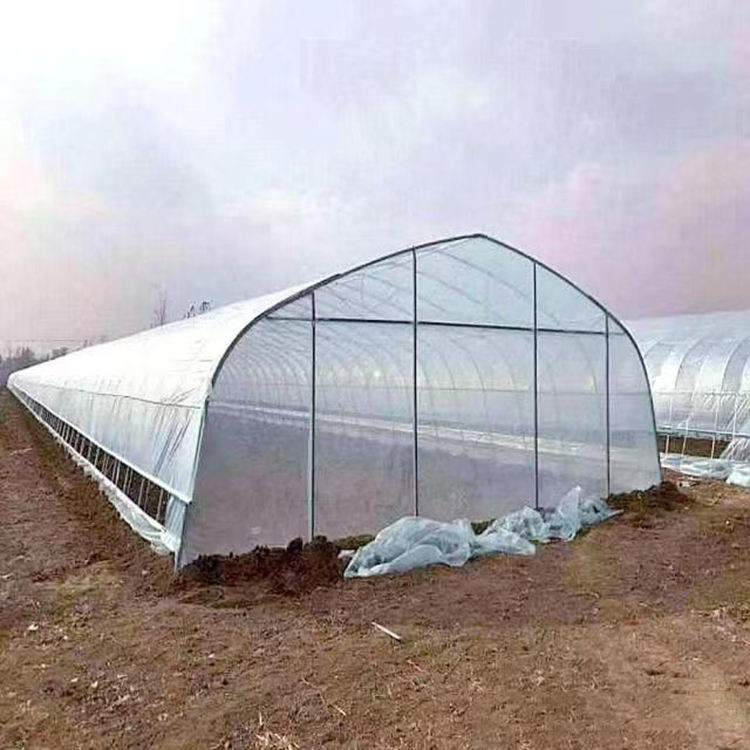

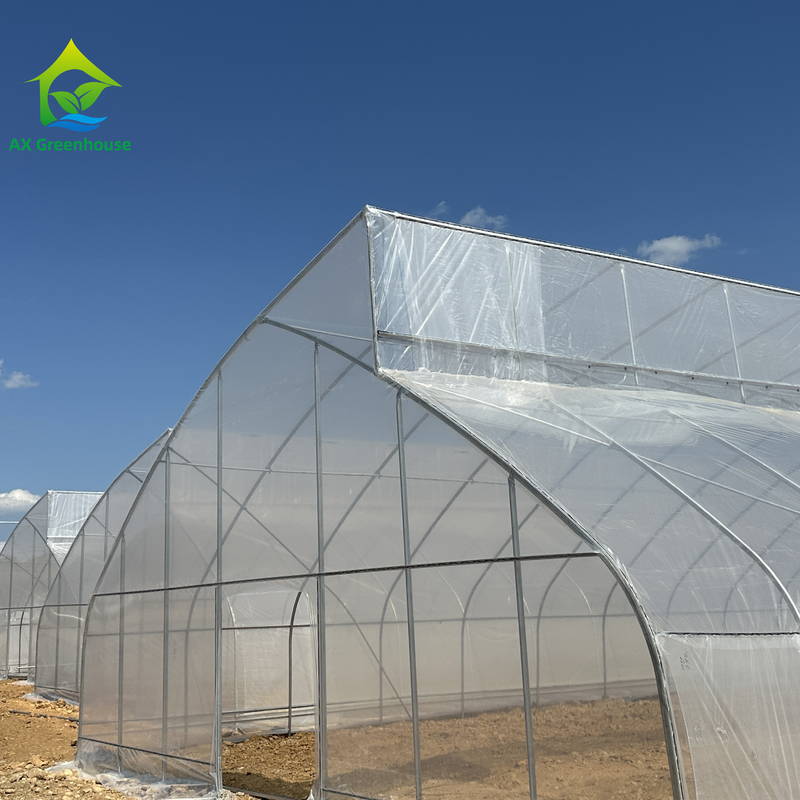

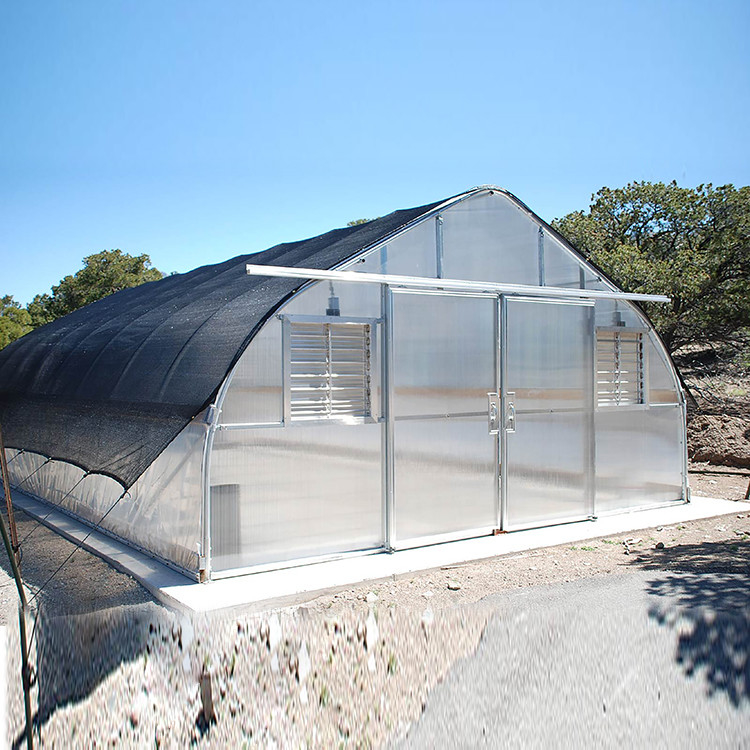

Single-span Tunnel Plastic Film Planting Vegetable Greenhouse For Agriculture

Greenhouse construction must consider its durability. The durability of greenhouses is influenced by factors such as the aging resistance of greenhouse materials and the load-bearing capacity of the main structure of the greenhouse. The durability of transparent materials is not only reflected in their own strength, but also in the continuous attenuation of material transmittance over time, and the degree of attenuation of transmittance is a decisive factor affecting the service life of transparent materials. The service life of a typical steel structure greenhouse is over 15 years. Require the design of wind and snow loads to use the maximum load that occurs once every 25 years; The simple bamboo and wood structure greenhouse has a service life of 5-10 years, and is designed with a maximum load of 15 years for wind and snow loads.

Frame structure:

(1)Hot dip galvanized steel Frame

(2) Main post: 150*150mm-100*100mm

(3) Auxiliary post : 120*60mm-100*50mm

(4) Thickness: 1-2.5mm

(5) Truss: 50*50*2.5mm

(6) Zinc coating: average 210g/㎡

(7) Gutter: thickness 2.0-2.75mm, zinc coating 275g/㎡

Covering

(1) PO/PEP/HDPE plastic film single layer film covering / double layers films one layer thickness: 120μm-200μm

(2) Polycarbonate: double/three layers

(3) Tempered glass

Single layer: 4mm/5mm

Double layer 5+6+5 mm

Can be customized according to customer requirements

Film multi-span greenhouse Parameters:

(1) Wind load: 0.55KN/㎡

(2) Snow load: 0.45KN/㎡

(3) Maximum rainfall: 140mm/h

(4) Planting bearing: 0.2KN /㎡

No.	Items	Description	Including Or Not
1	Steel Structure	Hot-galvanized steel pipe	Yes
2	Greenhouse film	There's a lot of thickness to choose from.	choose according to the clients requirements
3	Insect net	High quality polyrthylene as raw material	choose according to the clients requirements
4	Sun-shading net	Summer shade,block rain,moisture,cooling,winter spring heat preservation	choose according to the clients requirements
5	cooling system	It consists of cooling fans and cooling pad	choose according to the clients requirements
6	heating system	Hot water heating,hot air heating,electric heating	choose according to the clients requirements
7	ventilation system	Side windows and cooling fans	choose according to the clients requirements
8	Drip irrigation system	It can be customized according the greenhouse length and width	choose according to the clients requirements
9	Micro-sprinkler system	It can be customized according the greenhouse length and width	choose according to the clients requirements

Sichuan Aixiang Technology Co.,

ltd is located in Chengdu city, China , we are professional in variety of greenhouse , such as PC sheet greenhouse , PE Film greenhouse , and Glass greenhouse,tunnel greenhouse and solar greenhouse etc , All our products have passed ISO9001 Quality Standard, Our Main Market is Euro countries as Spain , And America countries as canada , usa, As well as Australia ..We Look foreward to establish long-term business relationship with you .
