Metal Frame Durable Multi Span Plastic Film Greenhouse For Agriculture Farming
5.0
Keyword:
Multi-span Tomato Greenhouse For Fruits/vegetables
Name:
Agricultural Greenhouses
Material:
Plastic Film Cover
Application:
Greenhouse Tunnel Vegetable Greenhouses For Sale
Payment Terms:
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Size:
Customized
Supply Ability:
20000acres per month
Delivery Time:
20-25 work days
Packaging Details:
Package, cartons
Price:
USD12.9-24.8 per square meters
Minimum Order Quantity:
200 Sqm
Highlight:
Agriculture Farming Plastic Film Greenhouse, Multi Span Plastic Film Greenhouse, Metal Frame Plastic Film Greenhouse
Warranty:
10 Years
Product Name:
Multi-span Plastic Film Greenhouse
design customization
Please fill out the form below to request a quote or to request more information about us. Please be sure to upload customized requirement documents or pictures, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.
Please fill out the form below to request a quote or to request more information about us. please be as detailed as possible in your message, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.

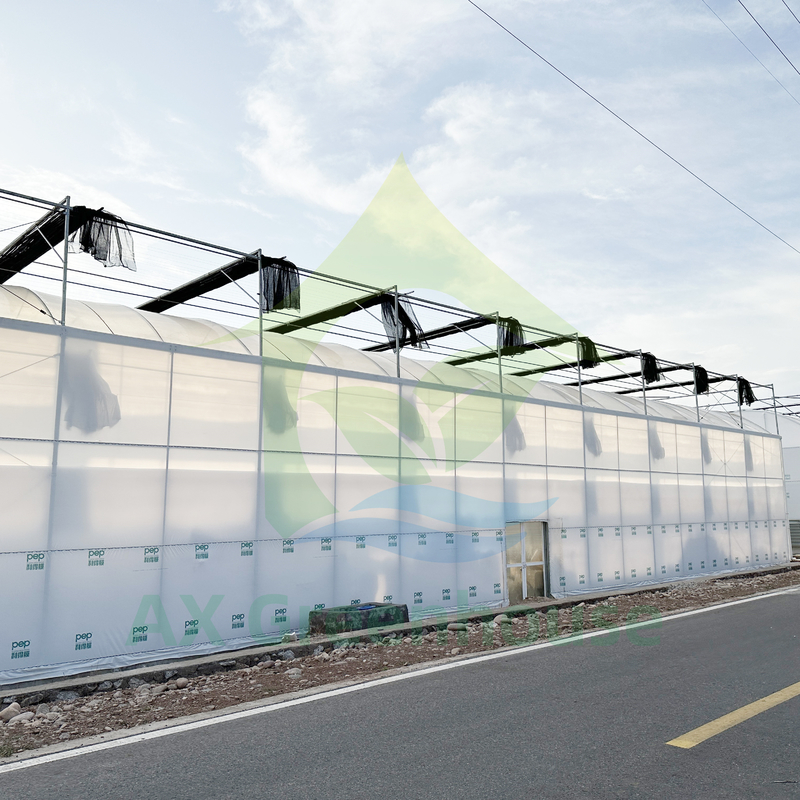

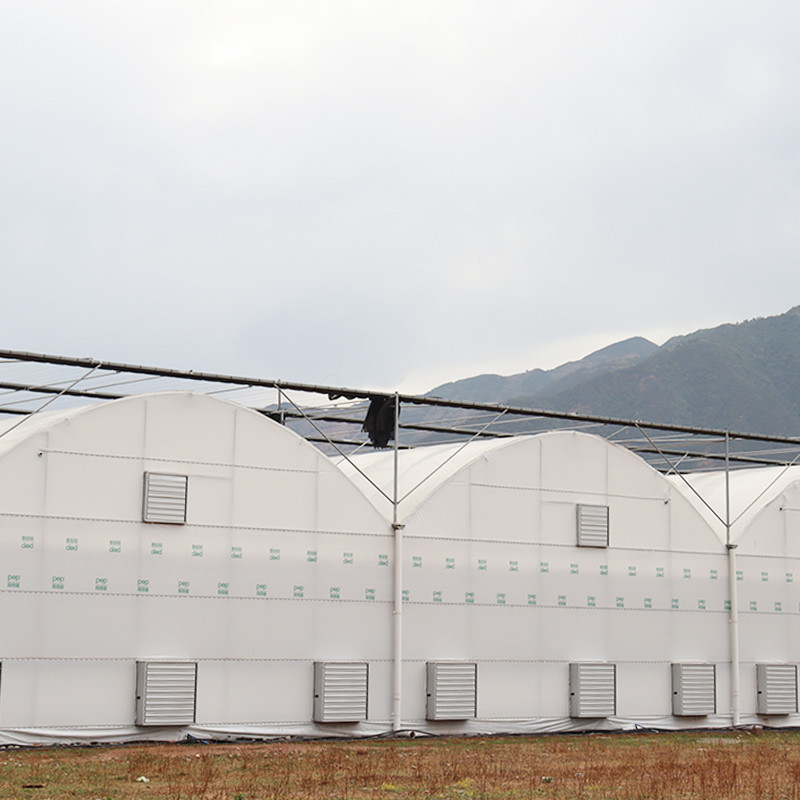

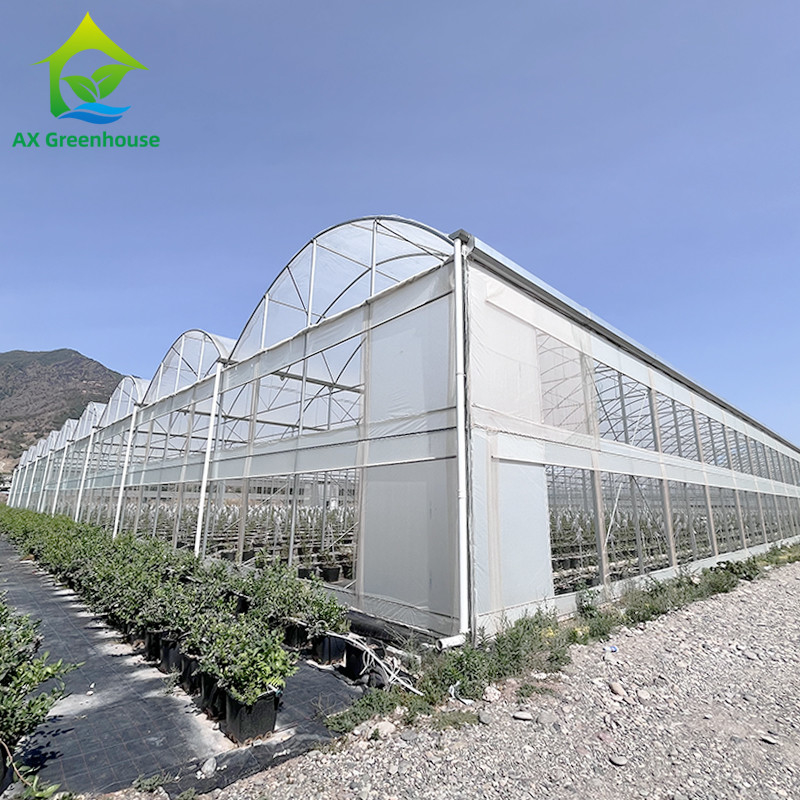

Metal Frame Durable Multi-span Plastic Film Greenhouse For Agriculture Farming
The multi-span greenhouse is a kind of greenhouse that users upgrade and transform in practice. It is to connect the original single-room greenhouse with reasonable design, scientific means and materials to form a multi-span greenhouse. The multi-span greenhouse has the following characteristics:
1. The space is much larger, and the space of the greenhouse is well utilized, and the utilization area is much larger than that of the traditional greenhouse.
2. Compared with the traditional greenhouse, the multi-span greenhouse is more scientific in operation, time-saving and utilization rate.
The multi-span greenhouse is an economical greenhouse with a beautiful curved roof and smooth sight. The structure uses less steel and has good thermal insulation performance.
Frame structure:
(1)Hot dip galvanized steel Frame
(2) Main post: 150*150mm-100*100mm
(3) Auxiliary post : 120*60mm-100*50mm
(4) Thickness: 1-2.5mm
(5) Truss: 50*50*2.5mm
(6) Zinc coating: average 210g/㎡
(7) Gutter: thickness 2.0-2.75mm, zinc coating 275g/㎡
Covering
(1) PO/PEP/HDPE plastic film single layer film covering / double layers films one layer thickness: 120μm-200μm
(2) Polycarbonate: double/three layers
(3) Tempered glass
Single layer: 4mm/5mm
Double layer 5+6+5 mm
Can be customized according to customer requirements
Can be customized according to customer requirements
Film multi-span greenhouse Parameters:
(1) Wind load: 0.55KN/㎡
(2) Snow load: 0.45KN/㎡
(3) Maximum rainfall: 140mm/h
(4) Planting bearing: 0.2KN /㎡
| No. | Items | Description | Including Or Not |
| 1 | Steel Structure | Hot-galvanized steel pipe | Yes |
| 2 | Greenhouse film | There's a lot of thickness to choose from. | choose according to the clients requirements |
| 3 | Insect net | High quality polyrthylene as raw material | choose according to the clients requirements |
| 4 | Sun-shading net | Summer shade,block rain,moisture,cooling,winter spring heat preservation | choose according to the clients requirements |
| 5 | cooling system | It consists of cooling fans and cooling pad | choose according to the clients requirements |
| 6 | heating system | Hot water heating,hot air heating,electric heating | choose according to the clients requirements |
| 7 | ventilation system | Side windows and cooling fans | choose according to the clients requirements |
| 8 | Drip irrigation system | It can be customized according the greenhouse length and width | choose according to the clients requirements |
| 9 | Micro-sprinkler system | It can be customized according the greenhouse length and width | choose according to the clients requirements |
Sichuan Aixiang Technology Co.,
![Metal Frame Durable Multi Span Plastic Film Greenhouse For Agriculture Farming 10]()
ltd is located in Chengdu city, China , we are professional in variety of greenhouse , such as PC sheet greenhouse , PE Film greenhouse , and Glass greenhouse,tunnel greenhouse and solar greenhouse etc , All our products have passed ISO9001 Quality Standard, Our Main Market is Euro countries as Spain , And America countries as canada , usa, As well as Australia ..We Look foreward to establish long-term business relationship with you .
