Product Description

Multi-span Custom Poly Tunnel Vegetable Film Greenhouses With Irrigation System

Greenhouses have always been an irreplaceable infrastructure and are widely used in agriculture. The main structure of greenhouses is mostly hot-dip galvanized steel pipes, which have super stability and pressure resistance, and can extend the service life of greenhouses.

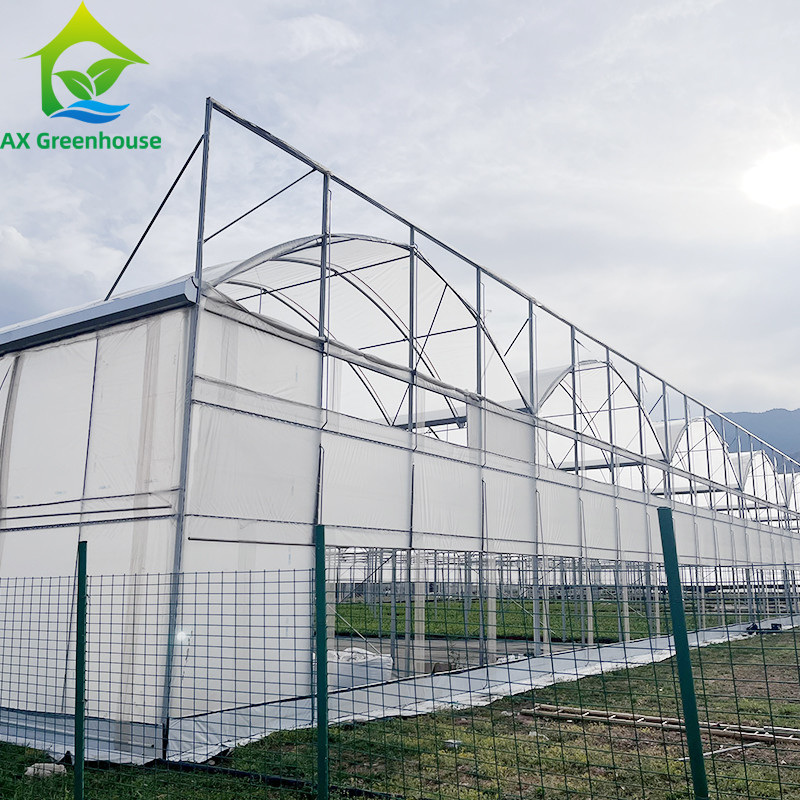

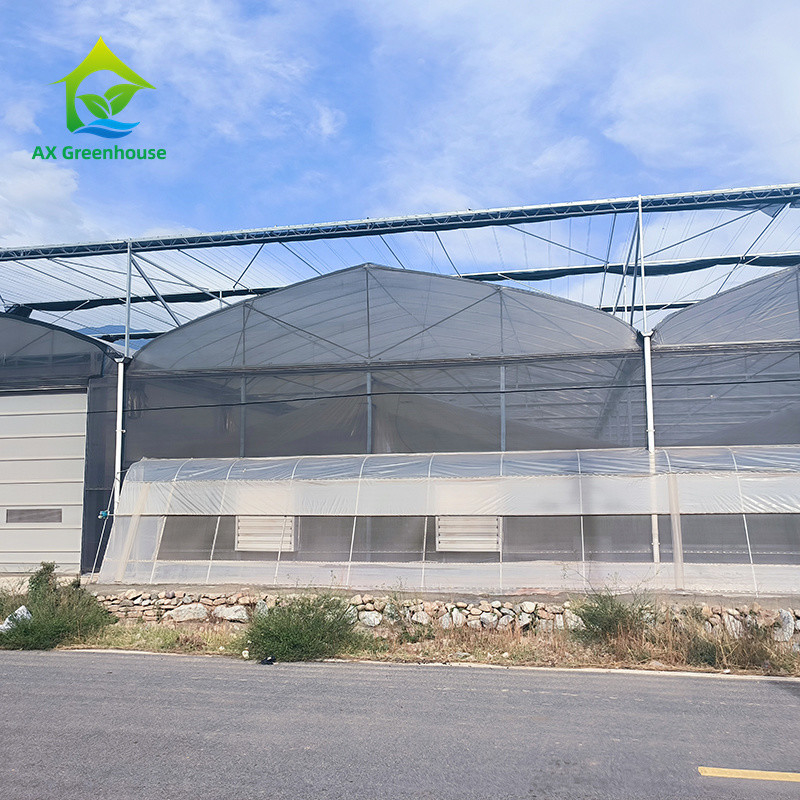

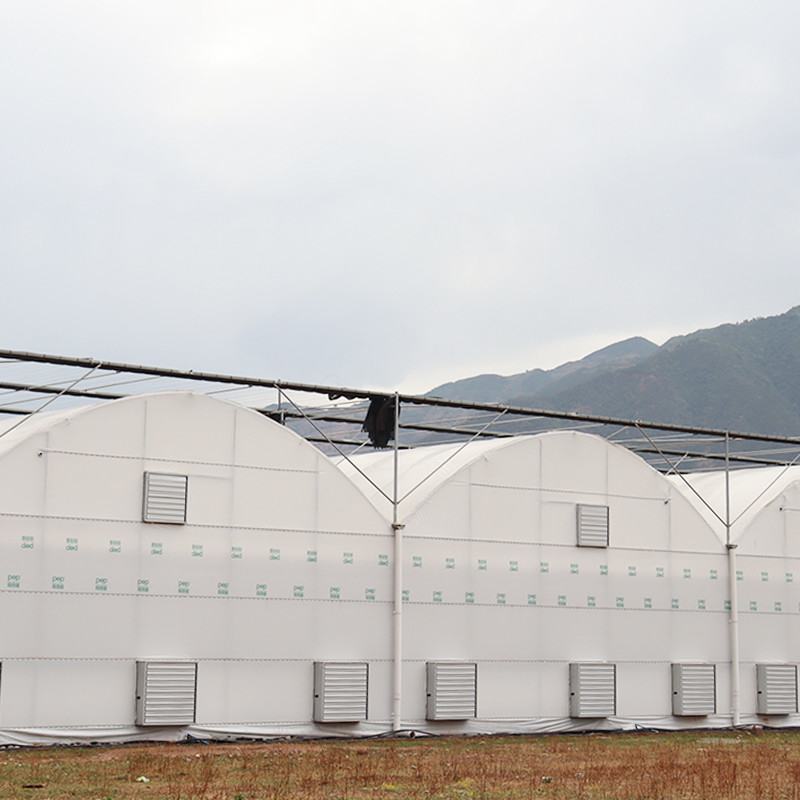

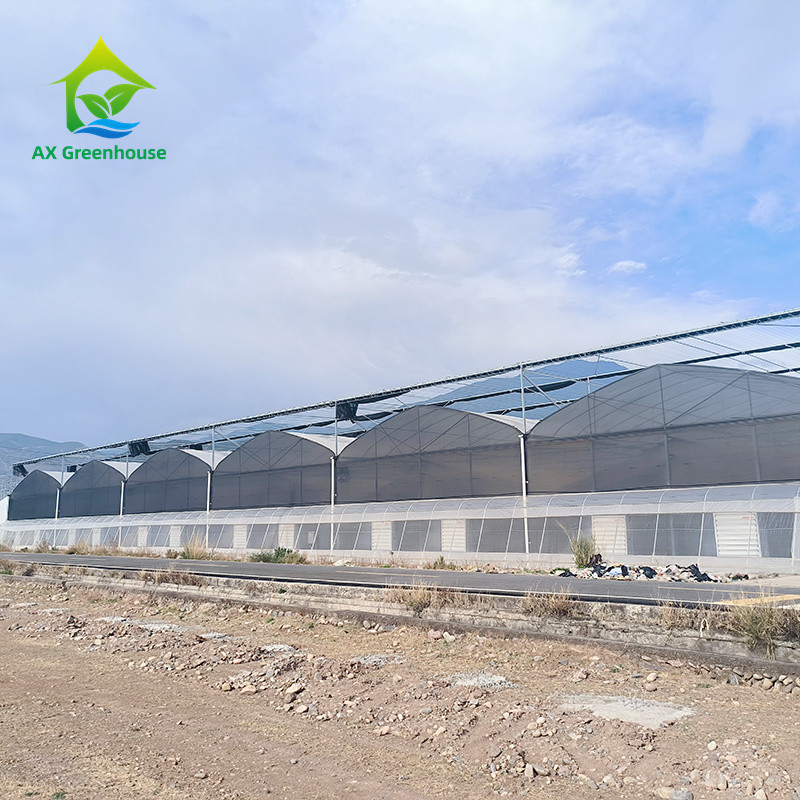

The structure of the multi-span film greenhouse is a multi-span pointed arch structure connected by a gutter. It is mainly composed of foundation, columns, main arch, auxiliary arch, gutter, external sunshade, internal sunshade, fan, wet curtain and other components. The surface of the steel pipes used in the greenhouse will be rust-proofed. The main steel structure of the multi-span greenhouse must be hot-dip galvanized and passivated. All bolts and nuts that can be exposed to rainwater are galvanized. The normal service life of the main frame of the film multi-span greenhouse can reach more than 15-20 years.

Frame structure:

(1)Hot dip galvanized steel Frame

(2) Main post: 150*150mm-100*100mm

(3) Auxiliary post : 120*60mm-100*50mm

(4) Thickness: 1-2.5mm

(5) Truss: 50*50*2.5mm

(6) Zinc coating: average 210g/㎡

(7) Gutter: thickness 2.0-2.75mm, zinc coating 275g/㎡

Covering

(1) PO/PEP/HDPE plastic film single layer film covering / double layers films one layer thickness: 120μm-200μm

(2) Polycarbonate: double/three layers

(3) Tempered glass

Single layer: 4mm/5mm

Double layer 5+6+5 mm

Can be customized according to customer requirements

Film multi-span greenhouse Parameters:

(1) Wind load: 0.55KN/㎡

(2) Snow load: 0.45KN/㎡

(3) Maximum rainfall: 140mm/h

(4) Planting bearing: 0.2KN /㎡

No.	Items	Description	Including Or Not
1	Steel Structure	Hot-galvanized steel pipe	Yes
2	Greenhouse film	There's a lot of thickness to choose from.	choose according to the clients requirements
3	Insect net	High quality polyrthylene as raw material	choose according to the clients requirements
4	Sun-shading net	Summer shade,block rain,moisture,cooling,winter spring heat preservation	choose according to the clients requirements
5	cooling system	It consists of cooling fans and cooling pad	choose according to the clients requirements
6	heating system	Hot water heating,hot air heating,electric heating	choose according to the clients requirements
7	ventilation system	Side windows and cooling fans	choose according to the clients requirements
8	Drip irrigation system	It can be customized according the greenhouse length and width	choose according to the clients requirements
9	Micro-sprinkler system	It can be customized according the greenhouse length and width	choose according to the clients requirements

Sichuan Aixiang Technology Co.,

ltd is located in Chengdu city, China , we are professional in variety of greenhouse , such as PC sheet greenhouse , PE Film greenhouse , and Glass greenhouse,tunnel greenhouse and solar greenhouse etc , All our products have passed ISO9001 Quality Standard, Our Main Market is Euro countries as Spain , And America countries as canada , usa, As well as Australia ..We Look foreward to establish long-term business relationship with you .
