Name: Single-span Tropical UV Treated Plastic Film Greenhouse
Brand: Sichuan Aixiang Agricultural Technology Co., Ltd.
SKU: Multi-span
Price: 17.90 USD
Availability: InStock

Home > products > Plastic Film Greenhouse >

Single-span Tropical UV Treated Plastic Film Greenhouse

Single-span Plastic Film Greenhouse

Tropical Plastic Film Greenhouse

UV Treated Plastic Film Greenhouse

Place of Origin:

China

Brand Name:

Aixiang Greenhouse

Model Number:

Multi-span

Request A Quote

Product Details

Product Name:

Multi-span Plastic Film Greenhouse

Material:

Plastic Film Cover

Application:

Greenhouse Tunnel Vegetable Greenhouses For Sale

Warranty:

10 Years

Size:

Customized

Keyword:

Multi-span Tomato Greenhouse For Fruits/vegetables

Name:

Agricultural Greenhouses

Payment & Shipping Terms

Minimum Order Quantity

200 Sqm

Price

USD12.9-24.8 per square meters

Packaging Details

Package, cartons

Delivery Time

20-25 work days

Payment Terms

L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability

20000acres per month

Economical Low Cost Plastic Film Single-span Poly Tunnel Galvanized Greenhouse Tent

Get Best Price

Video

Single-Span Sawtooth Design Tropical Plastic Film Greenhouse Tunnel Customized for Vegetable Growing

Get Best Price

Video

Hot Galvanized Steel Structure Multi-Span Plastic Film Custom Greenhouse with Tropical Top Ventilation Sawtooth Design

Get Best Price

Video

Chinese Plastic Film Greenhouse For Large Area Farming Growing

Get Best Price

+8613982313279

sales04@axgreenhouse.com

86--28-68745748

Contact Now

Product Description

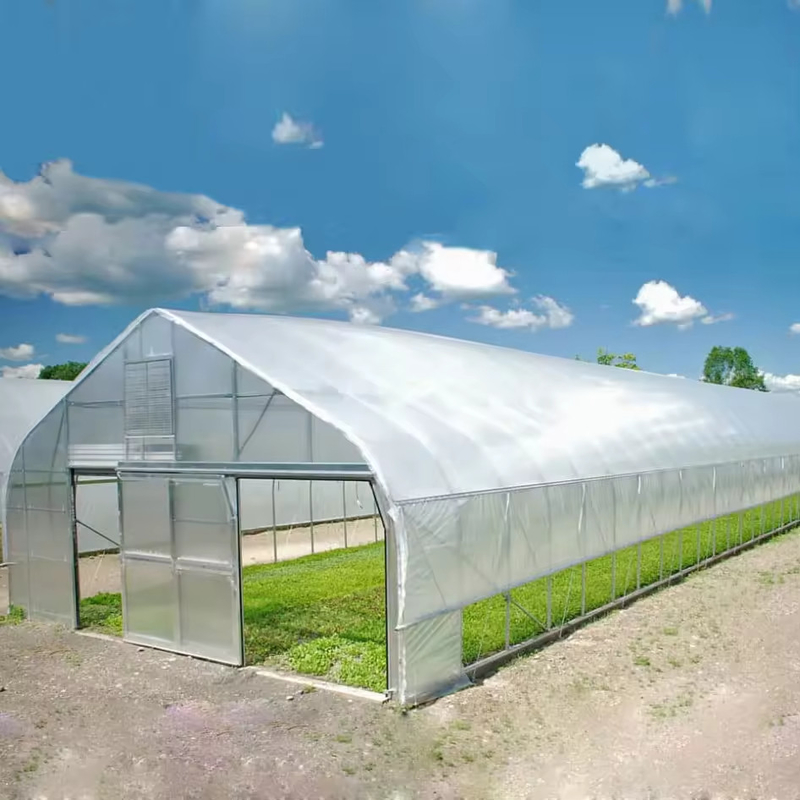

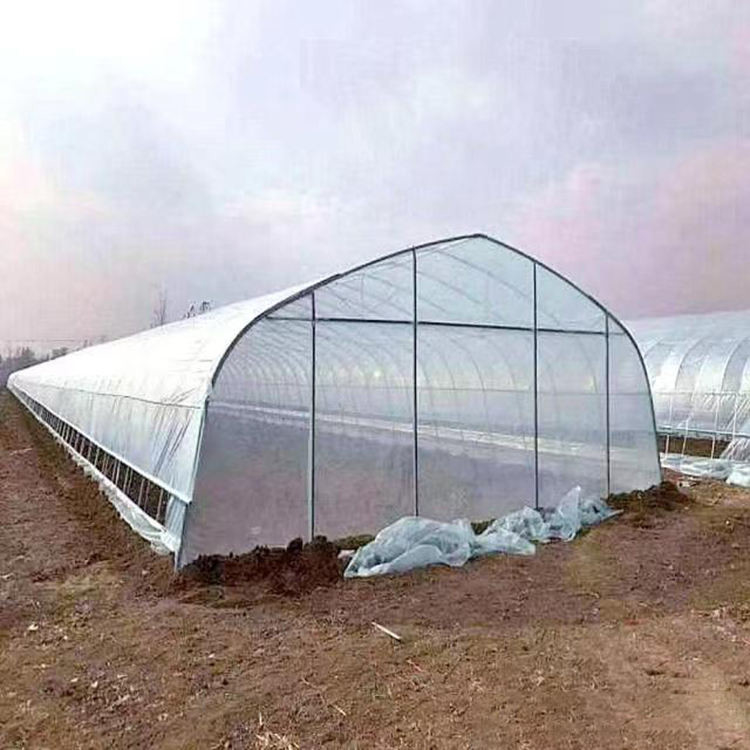

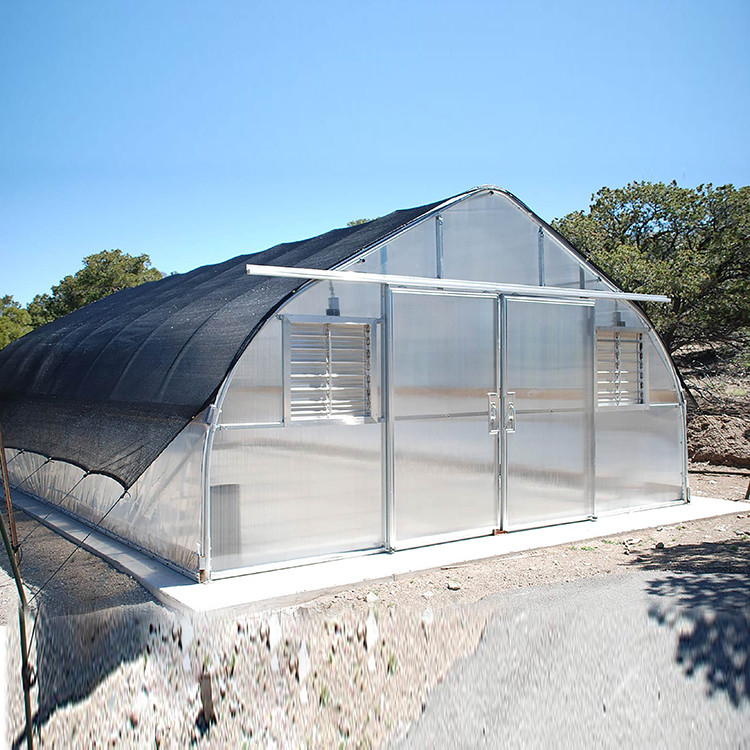

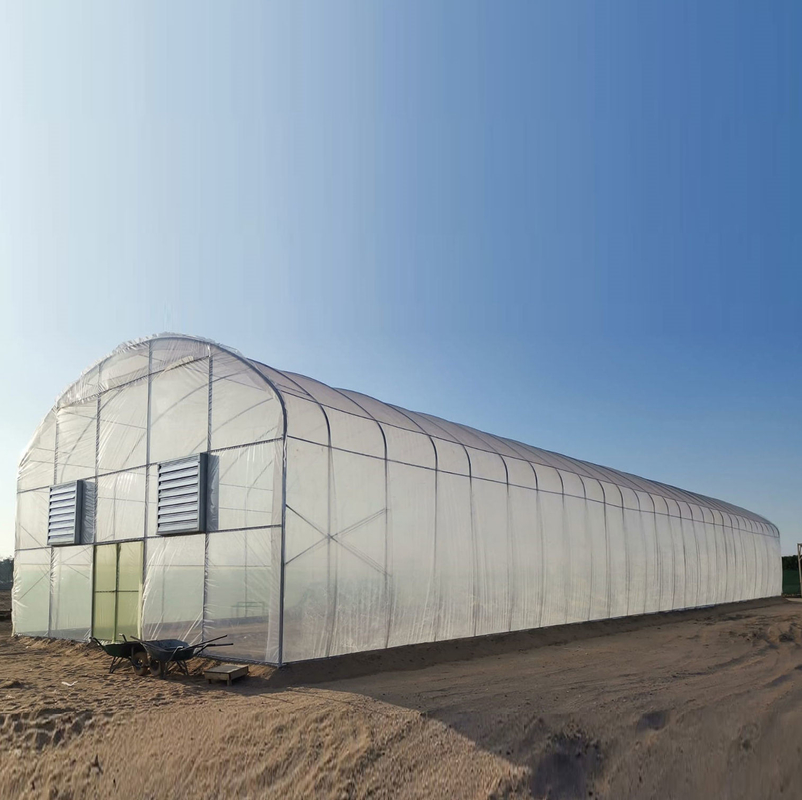

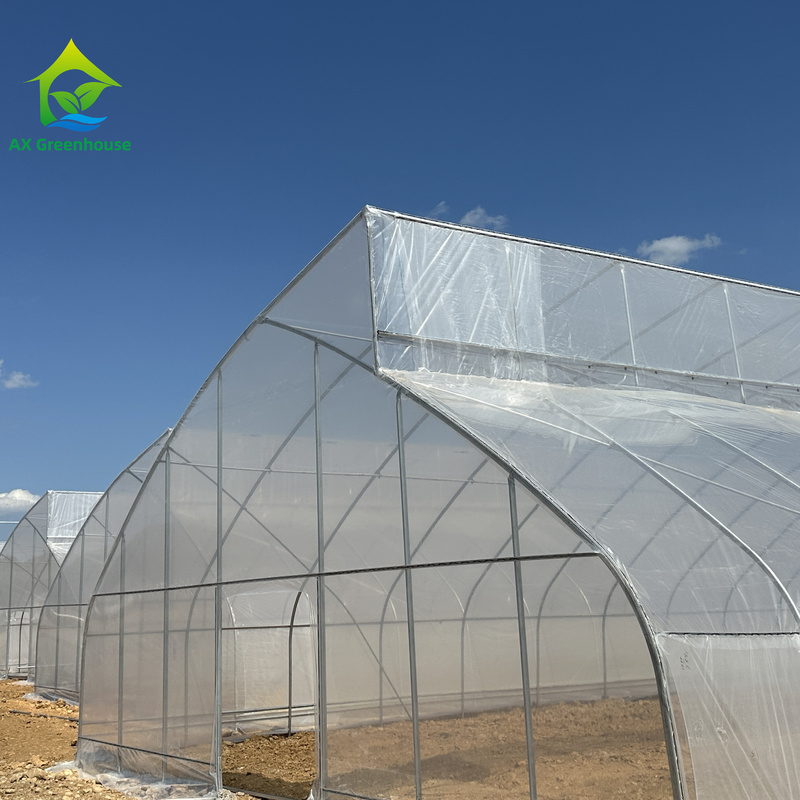

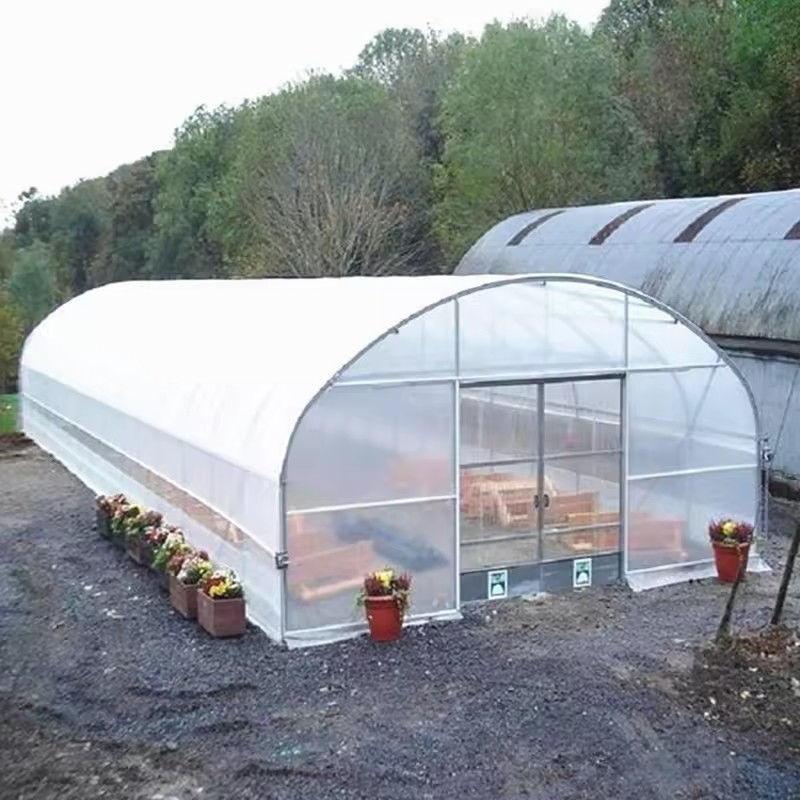

Single-span Tropical UV Treated Plastic Film Greenhouse For Sale

White plastic film has obvious thermal insulation effect, and hot air can be absorbed and discharged over a large area. Because white materials can insulate well and heat is easy to dissipate, the environment should be kept at a low temperature. During construction operations, there will be no large temperature difference between morning and evening. In addition, white plastic film can also prevent damage to the white film by fallen objects, which plays a good protective role. The greenhouse adopts a thickened plastic film design to achieve the purpose of small heat conduction, reduced damage, and rapid climate change (large temperature difference between morning and evening reduces warming, and small temperature difference between morning and evening increases warming and precipitation). According to relevant data, greenhouses use plastic film for thermal insulation, some of which have a target of 80% shading, a few have 60% shading, and can reach about 80% shading, reducing direct sunlight and protecting from insect pests. The plastic film insulation layer should meet the operating conditions and be able to withstand its deformation within a reasonable range.

1. Light structure, impact resistance, good load performance, excellent thermal insulation performance, durable and beautiful.

2. PC board saves more than 40% energy than other covering materials.

1. Using all-steel frame keel as bracket, the service life is long, up to more than 15 years;

2. Strong wind and snow load resistance;

3. Welded frame, easy installation, economical and durable;

4. Multi-span design, large indoor space, high land utilization rate, suitable for large-scale planting and mechanized operation.

Frame structure:

(1)Hot dip galvanized steel Frame

(2) Main post: 150*150mm-100*100mm

(3) Auxiliary post : 120*60mm-100*50mm

(4) Thickness: 1-2.5mm

(5) Truss: 50*50*2.5mm

(6) Zinc coating: average 210g/㎡

(7) Gutter: thickness 2.0-2.75mm, zinc coating 275g/㎡

Covering

(1) PO/PEP/HDPE plastic film single layer film covering / double layers films one layer thickness: 120μm-200μm

(2) Polycarbonate: double/three layers

(3) Tempered glass

Single layer: 4mm/5mm

Double layer 5+6+5 mm

Can be customized according to customer requirements

Film multi-span greenhouse Parameters:

(1) Wind load: 0.55KN/㎡

(2) Snow load: 0.45KN/㎡

(3) Maximum rainfall: 140mm/h

(4) Planting bearing: 0.2KN /㎡

No.	Items	Description	Including Or Not
1	Steel Structure	Hot-galvanized steel pipe	Yes
2	Greenhouse film	There's a lot of thickness to choose from.	choose according to the clients requirements
3	Insect net	High quality polyrthylene as raw material	choose according to the clients requirements
4	Sun-shading net	Summer shade,block rain,moisture,cooling,winter spring heat preservation	choose according to the clients requirements
5	cooling system	It consists of cooling fans and cooling pad	choose according to the clients requirements
6	heating system	Hot water heating,hot air heating,electric heating	choose according to the clients requirements
7	ventilation system	Side windows and cooling fans	choose according to the clients requirements
8	Drip irrigation system	It can be customized according the greenhouse length and width	choose according to the clients requirements
9	Micro-sprinkler system	It can be customized according the greenhouse length and width	choose according to the clients requirements

Sichuan Aixiang Technology Co.,

ltd is located in Chengdu city, China , we are professional in variety of greenhouse , such as PC sheet greenhouse , PE Film greenhouse , and Glass greenhouse,tunnel greenhouse and solar greenhouse etc , All our products have passed ISO9001 Quality Standard, Our Main Market is Euro countries as Spain , And America countries as canada , usa, As well as Australia ..We Look foreward to establish long-term business relationship with you .
