Ebb And Flood Hydroponic Movable Table Rolling Bench For Growing Plants In Greenhouse

Ebb and flow irrigation system
The ebb and flow irrigation system is the most commonly used plant production system in modern greenhouses. It is also suitable for the cultivation of ornamental plants and seedlings.
Ebb and flow irrigation is a closed irrigation system. Irrigation water mixed with fertilizer is pumped onto trays, and the plants on the trays begin to absorb the water and the fertilizer added to the water. After a period of time, the trays are emptied and the remaining water that is not absorbed by the plants is drained back into a central collection tank.
The water is filtered and treated before being recycled. After filtration and UV disinfection, the water is mixed with the required amount of fertilizer and reused.

1. Ebb And Flow Grow Table is water-saving and has a completely closed system cycle, which can achieve a water and fertilizer utilization rate of more than 90%;
2. The crop grows quickly, and the weekly seedling age can be at least 1 day earlier than the traditional seedling method, which improves the utilization rate of facilities;
3. It avoids the formation of water film on the plant leaves, so that the leaves receive more light and photosynthesis, and promotes transpiration to absorb more nutrients from the roots;
4. Ebb And Flow Grow Table can provide a stable moisture content in the root matrix to prevent the capillary roots from dying due to drought near the edge and bottom of the container;
5. It makes it easy to control relative humidity, keep the crop leaves dry, and reduce the use of chemicals;
6. It is very dry under the Ebb And Flow Grow Table, no weeds grow, and fungus growth can be reduced;
7. The management cost is reduced. Even if the nutrient solution is managed manually, one person can complete the irrigation of about 0.2h㎡• plug seedlings within 20-30 minutes;
8. It can be used at any time without restrictions on varieties, specifications, and time.

Specifications

Hydroponics is the way to go for those who want to get the most yield out of their light and area. Hydroponics

will provide bushier plants and faster growth. The Ebb and Flow complete growsystem floods the roots with a

nutrient solution. Ebb and Flow complete grow systems have been proven to be extremely effective over time

and require very low maintenance and are easy-to-use.

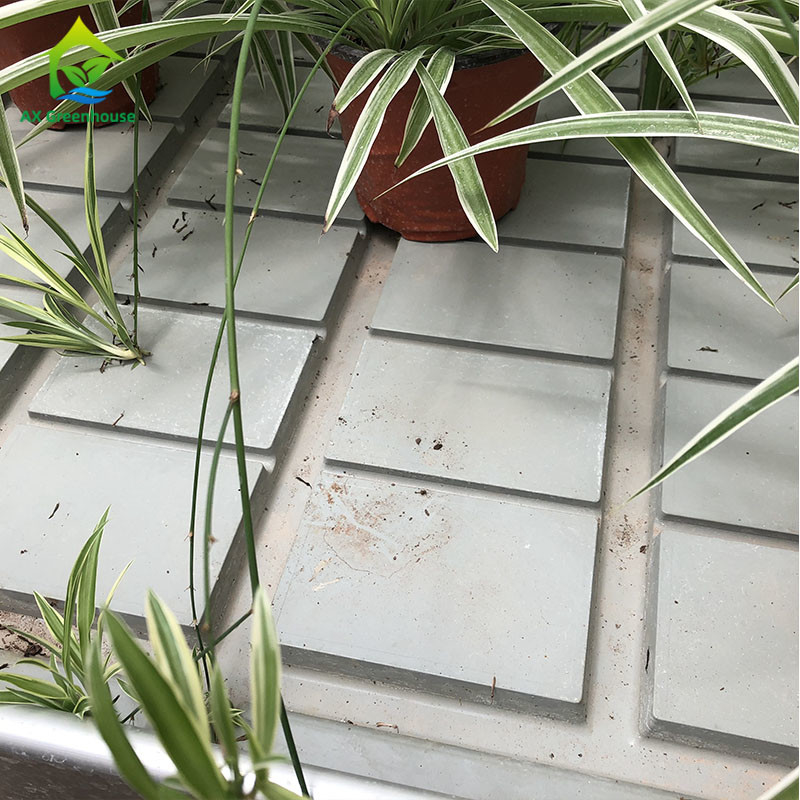

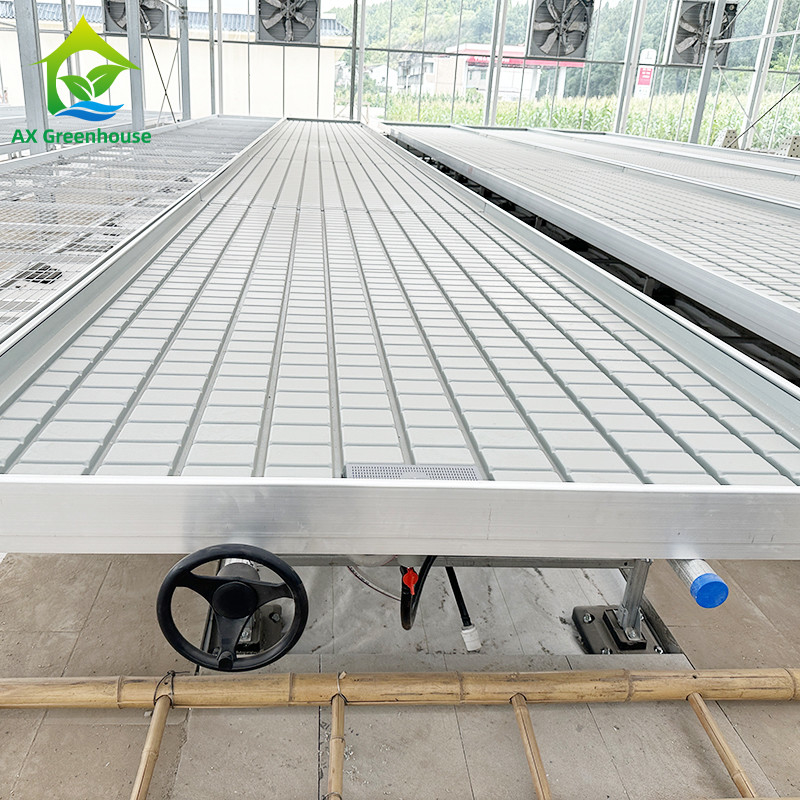

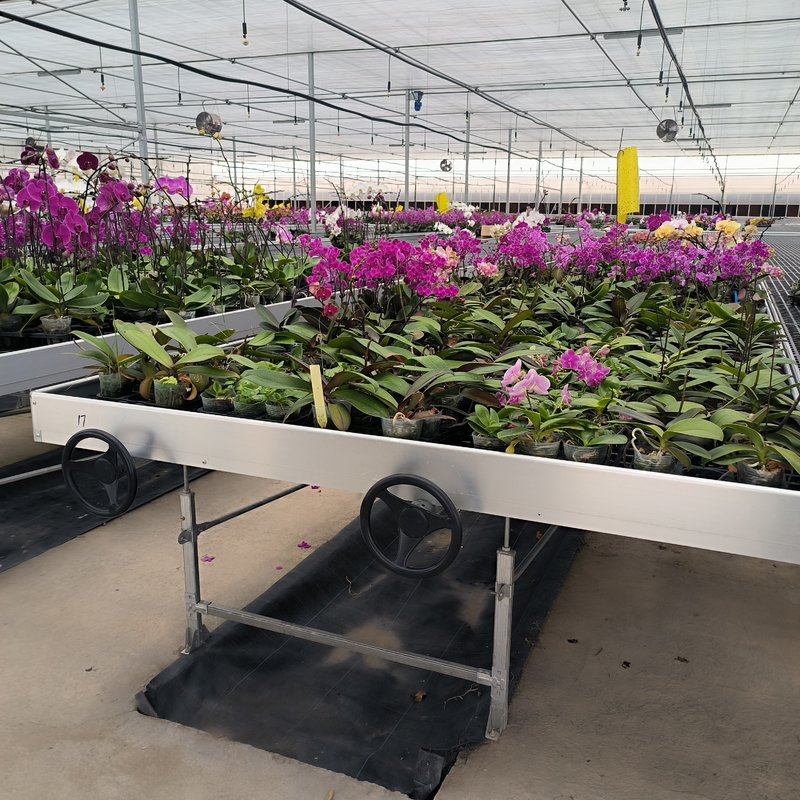

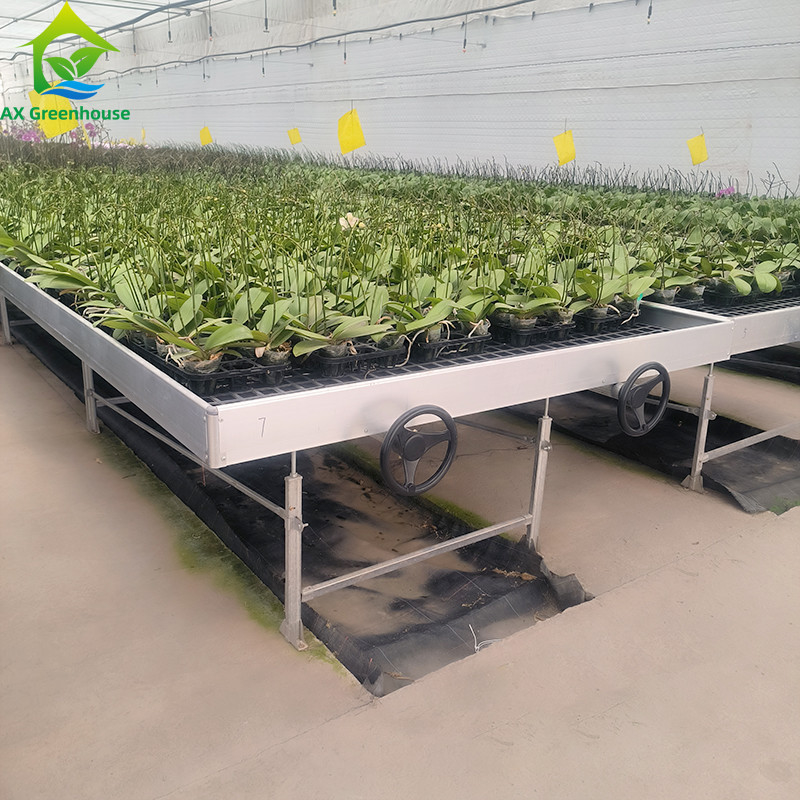

Detailed Image:

Advantages:

1. It can move left and right (movable 0.6m), and the height can be fine-adjusted (adjustable by 10 cm);

2. Anti-turning limit equipment to prevent skew caused by emphasis;

3. The maximum load capacity is 50kg/㎡;

4. Full hot-dip galvanizing process, durable;

5. The life span can reach 15-20 years;

6. Reduce irrigation waste, recycle and reuse;

7. Easy to install;

8. The system structure is reasonable;

9. Less maintenance;

10. High ground utilization rate

Working Principle:

Hydroponic ebb and flow trays uses pumps and a large water reservoir to periodically flood the plant

roots with nutrients and water. An easy method is using a large plastic tote to contain the nutrient solution

with the plants sitting in a deep tray on top of the lid. The nutrient solution is pumped into the tray from

the reservoir below, and then is allowed to drain back into the reservoir.
