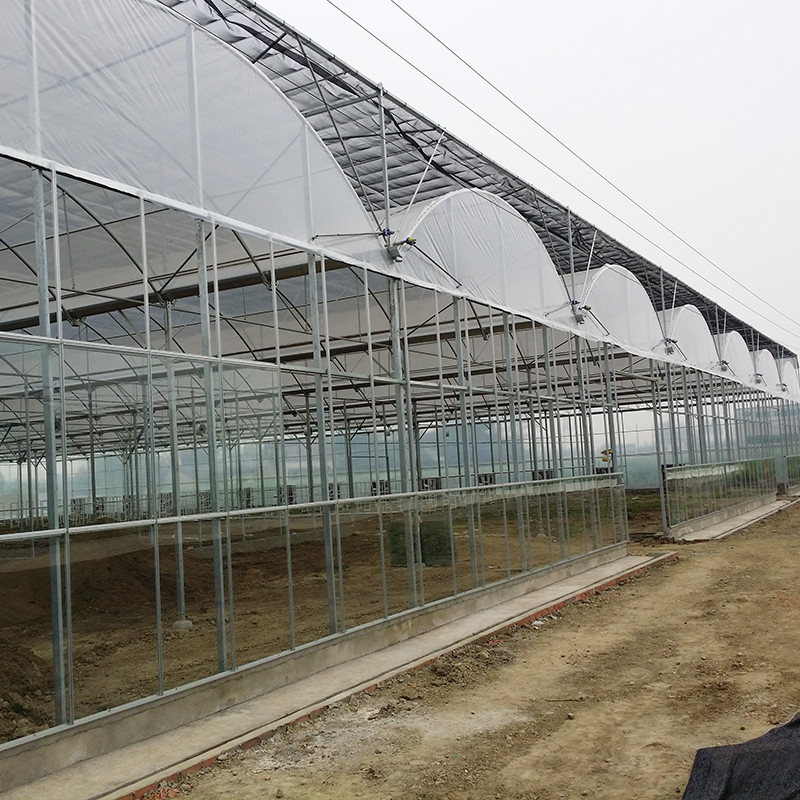

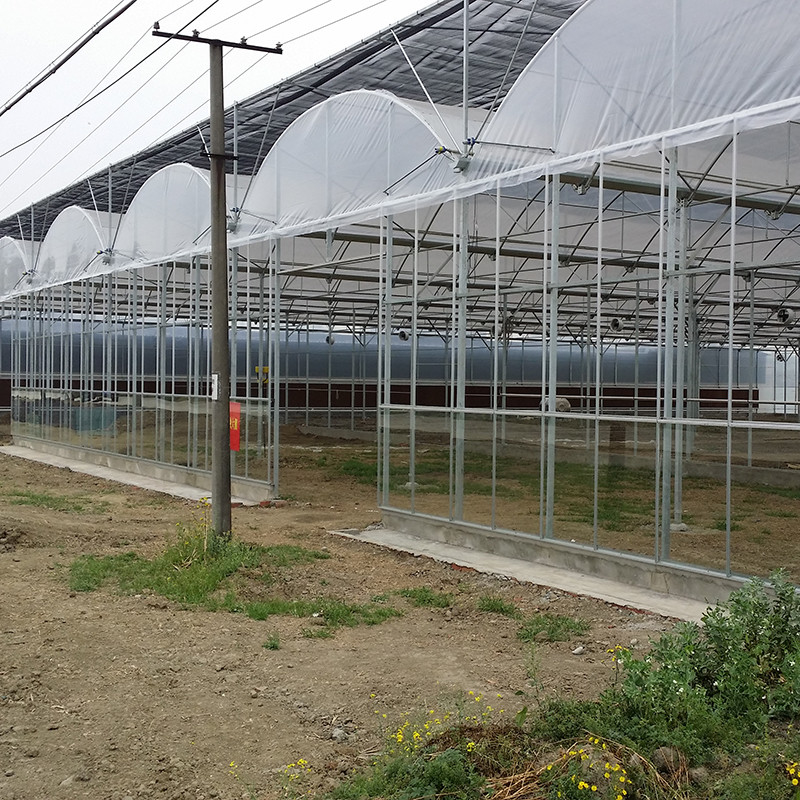

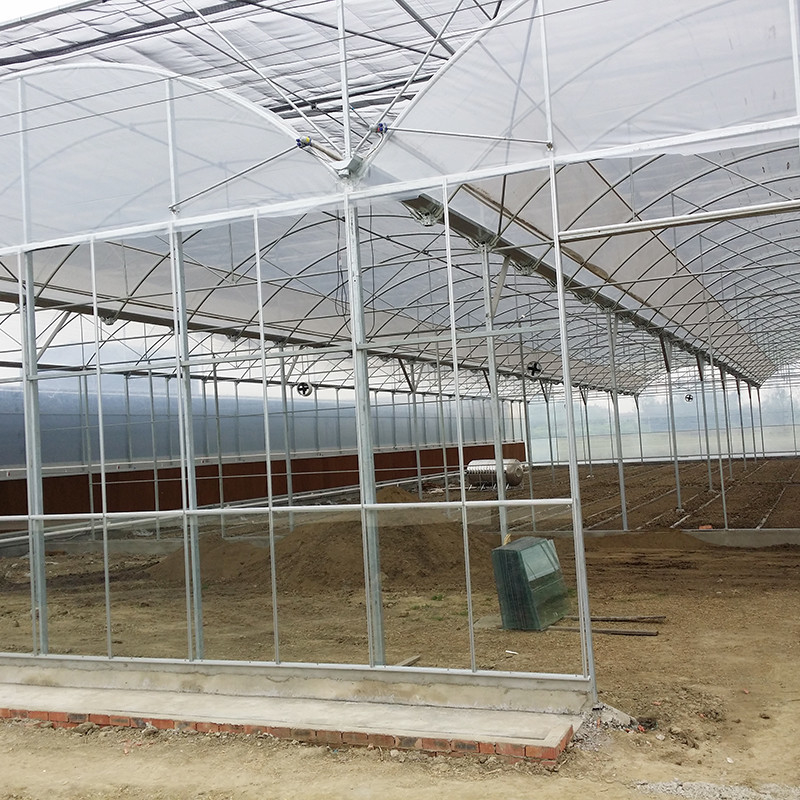

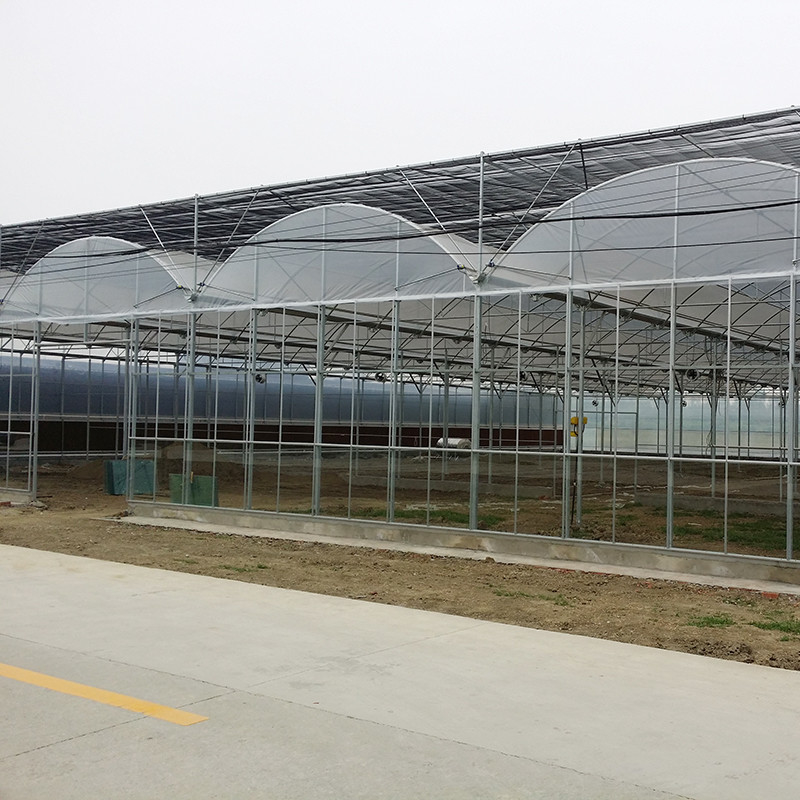

Horticultural Poly Tunnel Film Multi-span Agricultural Greenhouse With Shading System
Horticultural Poly Tunnel Film Multi-span Agricultural Greenhouse With Shading System
Product Overview
Our Multi-Span Greenhouse is a high-performance, large-scale agricultural structure designed for commercial farming, nurseries, and research facilities. With a modular multi-span (multi-bay) design, it offers superior space efficiency, climate control, and durability, making it ideal for year-round crop production in various climates.
Key Features
✔ Modular Multi-Span Design – Multiple connected bays maximize growing space and reduce construction costs.
✔ High-Strength Framework – Made from galvanized steel or aluminum for corrosion resistance and long-term durability.
✔ Advanced Covering Options – Choose from polycarbonate panels, polyethylene film, or glass for optimal light diffusion and insulation.
✔ Ventilation & Climate Control – Integrated roof vents, side vents, and optional automated systems (fans, shade nets, heating).
✔ Customizable Dimensions – Adjustable span width (e.g., 8m, 9.6m, 12m), height, and length to fit your needs.
✔ Snow & Wind Resistance – Reinforced structure withstands harsh weather (up to 150 km/h winds and heavy snow loads).
✔ Water Drainage System – Efficient gutter design prevents water accumulation.
Technical Specifications
-
Frame Material: Hot-dip galvanized steel / Aluminum alloy
-
Covering: 8-16mm polycarbonate / 200μm PE film / 4-5mm tempered glass
-
Spans: 2-span to 10-span configurations
-
Width per Span: 8m / 9.6m / 12m (customizable)
-
Height: 4m–6m (peak)
-
Ventilation: Roof vents, side roll-up vents, or motorized louvers
-
Optional Add-ons: Automated irrigation, heating, CO₂ systems, shading screens
Applications
✅ Commercial vegetable & flower production
✅ Hydroponic & aquaponic farming
✅ Plant nurseries & seedling cultivation
✅ Research & educational greenhouses
| No. | Items | Description | Including Or Not |
| 1 | Steel Structure | Hot-galvanized steel pipe | Yes |
| 2 | Greenhouse film | There's a lot of thickness to choose from. | choose according to the clients requirements |
| 3 | Insect net | High quality polyrthylene as raw material | choose according to the clients requirements |
| 4 | Sun-shading net | Summer shade,block rain,moisture,cooling,winter spring heat preservation | choose according to the clients requirements |
| 5 | cooling system | It consists of cooling fans and cooling pad | choose according to the clients requirements |
| 6 | heating system | Hot water heating,hot air heating,electric heating | choose according to the clients requirements |
| 7 | ventilation system | Side windows and cooling fans | choose according to the clients requirements |
| 8 | Drip irrigation system | It can be customized according the greenhouse length and width | choose according to the clients requirements |
| 9 | Micro-sprinkler system | It can be customized according the greenhouse length and width | choose according to the clients requirements |
if you are interested in my products.Just Contact me!!!
