Commercial Greenhouse Solutions for Mid-to-Large Scale Projects - AX Greenhouse

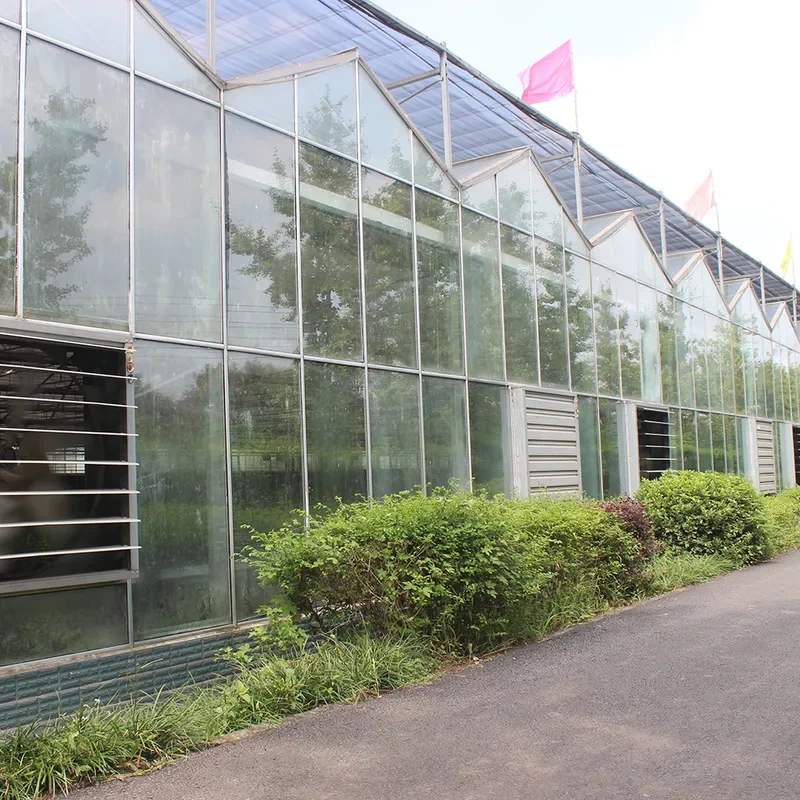

Agricultural Multi-span Venlo Glasshouse For Cooling System Pad And Fan System 1

Agricultural Multi-span Venlo Glasshouse For Cooling System Pad And Fan System 2

Agricultural Multi-span Venlo Glasshouse For Cooling System Pad And Fan System 3

Agricultural Multi-span Venlo Glasshouse For Cooling System Pad And Fan System 4

Agricultural Multi-span Venlo Glasshouse For Cooling System Pad And Fan System 5

Agricultural Multi-span Venlo Glasshouse For Cooling System Pad And Fan System

Name: Agricultural Multi-span Venlo Glasshouse For Cooling System Pad And Fan System
Brand: AX Greenhouse

Roof Molding:

Triangular

Heating System:

Water Heating System

Cooling System:

Pad And Fan System

Ventilation:

Top Ventilation+Side Ventilation

Structure:

Hot Dip Galvanized Steel\ HDG Steel

Color:

Clear White

Advantage:

High Tensile\high Strength

Cover Material:

Glass

Application:

Tomatoes Or Other Vegetables

Payment Terms:

T/T, L/C

Supply Ability:

10000000 square meters per month

Delivery Time:

15-25 days

Packaging Details:

Our export packing : 1. Steel (bundling and packaging) 2. Equipment, spare parts (wooden cases, carton packaging) 3. PC sheet, glass, film, and other independent packaging

Price:

USD15.8-USD28.9/sqm

Minimum Order Quantity:

300 square meters

Highlight:

Agricultural Venlo Glasshouse, Pad Fan System Agricultural Venlo Glasshouse, Cooling System Agricultural Venlo Glasshouse

Product Name:

Automatic Green House Commercial Hydroponics Glass Greenhouse Turnkey Project

Inquiry

Write a Review

Agricultural Multi-span Venlo Large Tunnel Strawberry Glasshouse Glass Greenhouse

Key Features & Benefits

1. Exceptional Light Transmission for Optimal Photosynthesis

92% light transmittance via low-iron, tempered glass panels (4mm–6mm thickness) ensures plants receive full-spectrum sunlight, critical for vigorous growth and nutrient absorption.

Anti-reflective coating minimizes light loss, while UV stabilization filters harmful radiation (blocking 99.9% of damaging UV rays) without compromising beneficial wavelengths.

Consistent light distribution across the entire growing area eliminates "shade zones," ensuring uniform crop maturation and higher-quality produce.

2. Robust Structural Durability for Long-Term Performance

Tempered safety glass panels resist impact from hail, wind-borne debris, and accidental damage—5x stronger than standard glass, with a 15-year warranty against breakage.

Hot-dip galvanized steel frame (zinc coating ≥350g/m²) provides superior corrosion resistance, supporting a 25+ year lifespan even in coastal or high-humidity environments.

Engineered to withstand extreme weather: wind loads up to 180 km/h and snow loads of 80 cm, ensuring year-round operation in diverse climates.

3. Precision Climate Control Systems

Dual ventilation: Motorized roof vents (25% of roof area) and side louvers with temperature-triggered automation maintain optimal airflow, reducing heat stress in summer.

Advanced insulation options: Single or double-glazed panels (5mm+ air gap) minimize heat loss, cutting winter heating costs by 40% compared to polycarbonate structures.

Integrated shading: Exterior aluminum screens (0–90% shading adjustment) and interior thermal curtains regulate light intensity and retain warmth, protecting crops from sunscald.

Glass greenhouse
1	Structure	hot dip galvanized steel	as customer's requirements
2	covering material	4mm/5mm/5+6+5mm/5+9+5mm tempered glass	as customer's requirements
3	inner sunshade system	aluminum foil screen,Gear motor with anti water boxes and related accessories(A-type) Rack and pinion and related accessories	as customer's requirements
4	outer sunshade system	Black sunshade net Electric motor Transmission system	as customer's requirements
5	inner insulation system	100g/120g space cotton Electric motor Transmission system	as customer's requirements
6	cooling system	13801380400mm exhaust fan 10cm/15cm thickness cooling pad	as customer's requirements
7	ventilation system	top vetilation + side ventilation	as customer's requirements

Product features

1, Hot-dip galvanized steel skeleton, long using life.
2, Multi-span design, large using space.
3, High-cost performance.
4, Electric control greenhouse's systems, easy to operate.

Agricultural Multi-span Venlo Glasshouse For Cooling System Pad And Fan System 0

Agricultural Multi-span Venlo Glasshouse For Cooling System Pad And Fan System 1

Optional systems

Agricultural Multi-span Venlo Glasshouse For Cooling System Pad And Fan System 2

Agricultural Multi-span Venlo Glasshouse For Cooling System Pad And Fan System 3

Agricultural Multi-span Venlo Glasshouse For Cooling System Pad And Fan System 4

Our advantages

Agricultural Multi-span Venlo Glasshouse For Cooling System Pad And Fan System 5

FAQ

1.You are manufacture factory or trading company?

We are manufacture factory. You are welcomed to visit us at any time. In the workshop,it has a complete advanced equipment system for making steel structures and panels. So we can make sure the good quality and also the competitive price.

2.How about your quality control?

Our products have passed CE EN1090 and ISO9001:2008.

3.Can you offer design service?

Yes,we have an engineer team and can design for you according to your requirements.Architectural drawing,structure diagram,processing detail drawing and installation drawing will be made and let you confirm in different time of the project.

4.What's the delivery time?

The delivery time depends on the size and quantity of building.Generally within 30 days after receiving the payment.And partial shipment is allowed for big order.

5.Do you offer service for installation?

We will give you the detailed construction drawing and the construction manual which could help you to erect and install the building step by step. We also could send the engineer to your local to help you if need.

6.What's the payment term?

50% deposit and 50% balance before shipment.

7.How to get a quote from you?
You can contact us by email, phone, Alibaba TM, WhatsApp, Skype and so on and you will get reply within anytime.
