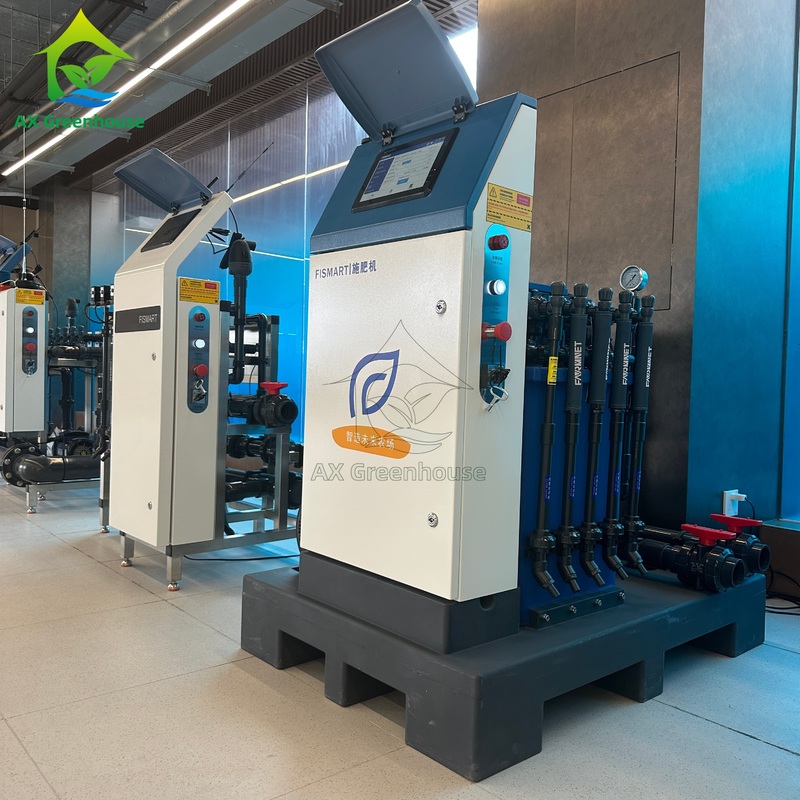

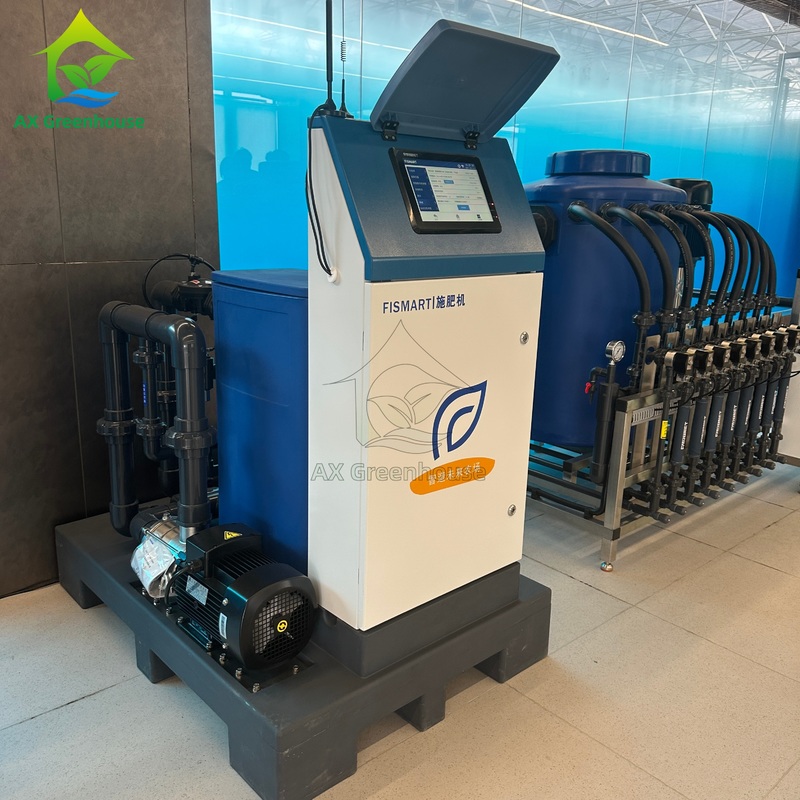

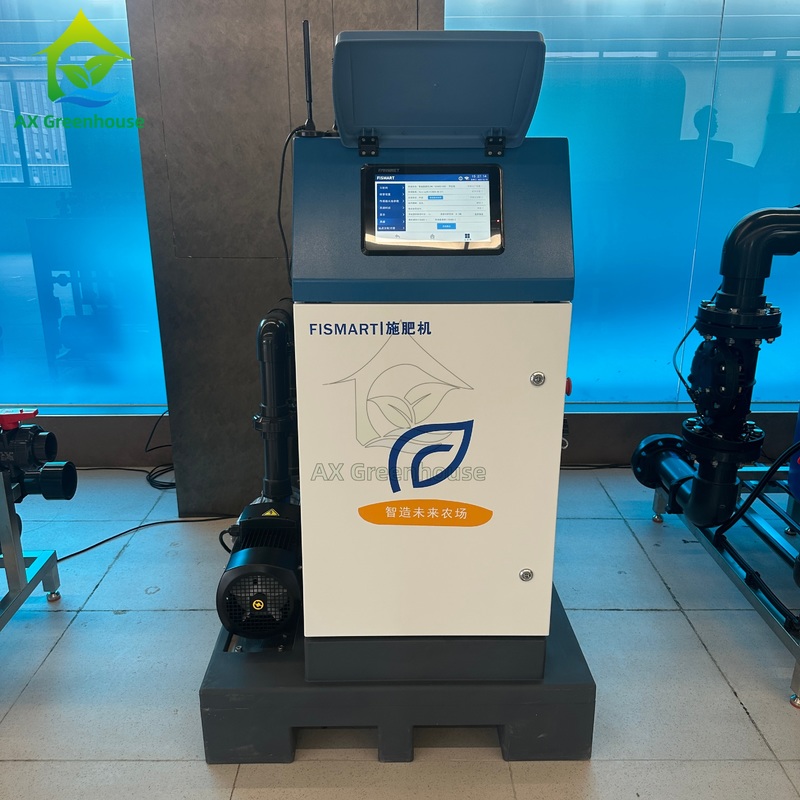

Fismart-A High Precision Automated Smart EC PH Sensor PWM Bypass Fertilizer Dosing System Spreader Fertilizer Machine Farming
FISMART-A is loved by a wide range of growers due to its ultra-high cost effectiveness.
A newly designed operating system allows every use to efficiently and safely complete irrigation and fertilization through the simplest and most intelligent operations.
Equipped with high-precision EC and PH sensors for accurate measurement.
By using OWM modulation technology,we can perfectly control the fertilizer absorption ratio and ensure precise fertilizer distribution,making us a trustworthy production partner.
As an agricultural production tool, strongness is extremely important. FISMART-A adopts 304 stainless steel material and robot welding technology, and the overall structural strength is extremely high, acid-resistant and corrosion-resistant.
Equipped with high-precision EC and PH sensors for accurate measurement. Through PWM modulation technology, it perfectly controls the fertilizer absorption ratio and ensures accurate fertilizer distribution. It is a production partner worthy of complete trust.
Can be connected to three types of valve controllers: multi-line and bus wireless, and can be configured and combined at will to easily cope with valve control.
FISMART-A supports multiple ways of networking, WIFI/WAN/4G are all available. Remote control through mobile phone APP, even if you are far away, it is close at hand.
| Size | 911mm* 905mm* 1438mm |
| Weight | 129Kg |
| Power Supply | 380V AC 50Hz |
| Power | 2.2KW |
| Inlet And Outlet | DN40 |
| Type | Bypass |

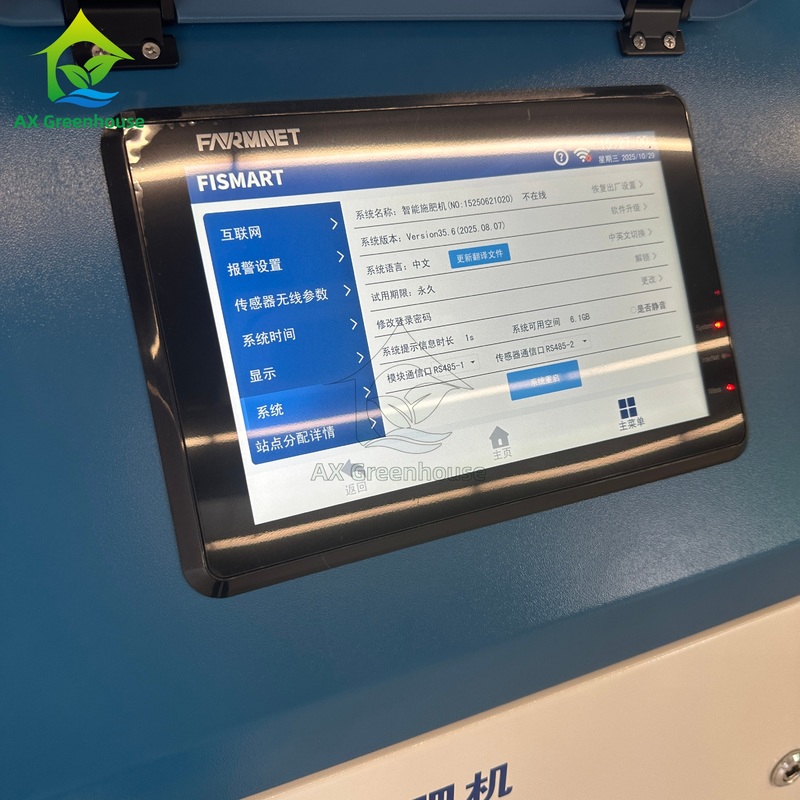

| Human-machine Interface | 10-inch capacitive touch screen |
| Pump (P/Q/H) | Lingxiao (2.2KW/8m3/48m) |
| EC Pre-control | No |
| EC/PH Sensor | Standard single-channel EC/PH |
| Inverter | No |
| Water Supply Pump | External |
| Flowmeter | Clip flowmeter |
| Stabilization Time | 60s |
| Fertilizer Distribution Accuracy | ±0.1ms/cm |
| Pipeline Pressure | ＜6.0bar |
| Fertilizer Distribution Method | EC/PH automatic adjustment or proportional adjustment, each channel can set the fertilizer absorption ratio |
