Liquefied Gas Fuel CO2 Generators Used For Increasing CO2 Concentration Greenhouse Accessories
Greenhouse Accessories CO2 Concentration Generator System With Controller
Product description

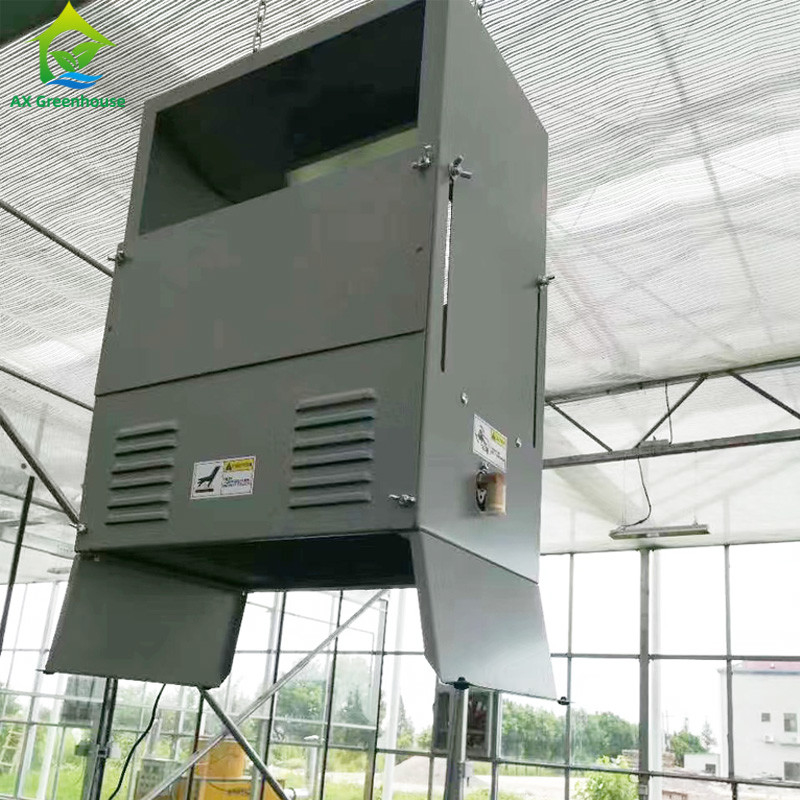

The carbon dioxide generator usually contains a generator and several frequent exhaust pipes, when using the generator, it is necessary to install the generator in the center of the greenhouse, extend the exhaust pipe forward and backward left and right four directions, there are several small holes on the exhaust pipe, the hole diameter is about 0.1cm, the hole distance is within 1~2m, the carbon dioxide produced by the generator is evenly released in the greenhouse through the exhaust pipe and exhaust hole.

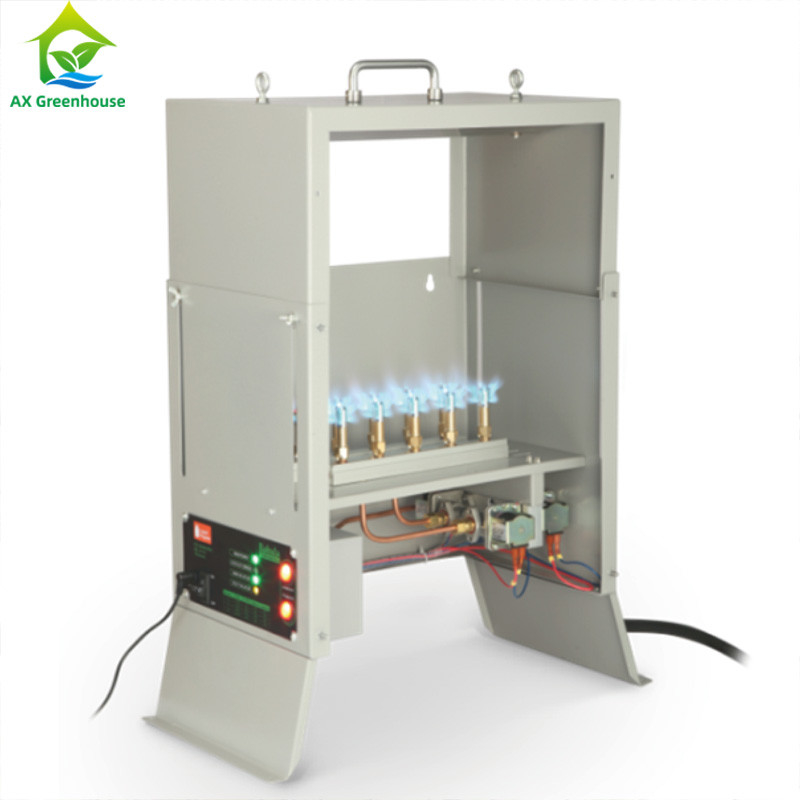

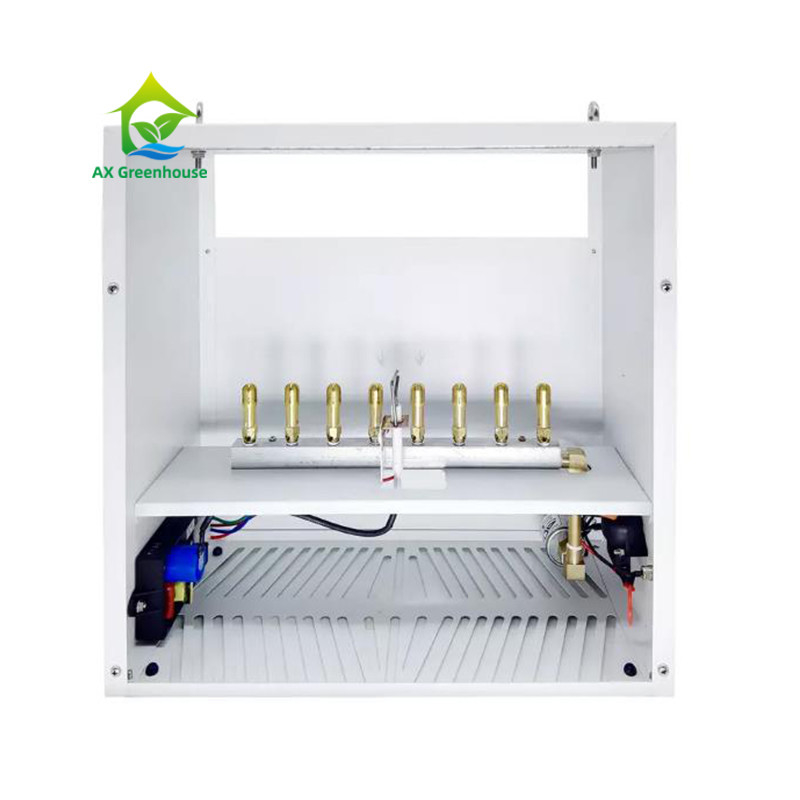

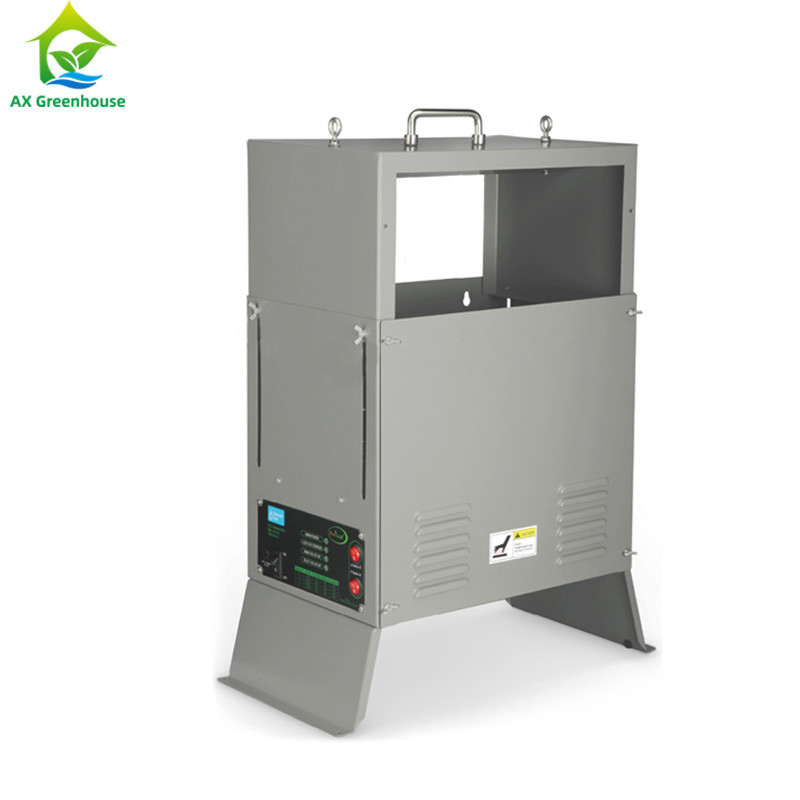

Pro-Leaf CO2 Generators convert liquid propane (LP) or natural gas (NG) into supplementalcarbon dioxide for accelerated growth. BBL-4,BBL-8, and BBL-10 feature four, eight, and tenbrass burners,with included burner plugs allowing CO2 output modification. The 10-burnerBBL-10 offers enhanced functionality with convenient selector switches operating two, five,seven, or all 10 burners at a time. A full range of safety features ensure reliable operation- elec-tronic ignition replaces an open pilot flame, solenoid valve to restrict gas if the bumers do notignite, and a tip-over switch which cuts power if the unit is not upright. Integrated LEDs indicateoperational status. Each model comes complete with a gas regulator, 3.66m hose, power adapterand hanging hardware.
| Type | Standard version | High altitude version |
| Fuel | Natural gas / propane liquefied gas | Natural gas / propane liquefied gas |
| Burners | 4,8,10 | 4,8,10 |
| Natural gas pressure | 4.50" WC / 1.15 kPa | |
| Propane gas pressure | 11.0" WC / 2.8 kPa | |
| Packing | 380mm*250mm*510mm | 380mm*250mm*510mm |
| Weight | 10kg-11.6kg | 10kg-11.6kg |
| Output per hour | 0.15m³-0.78m³ | 0.14m³-0.68m³ |
